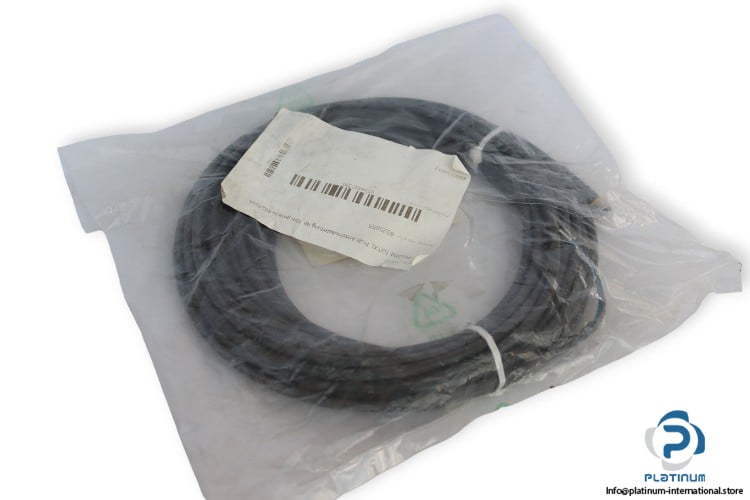

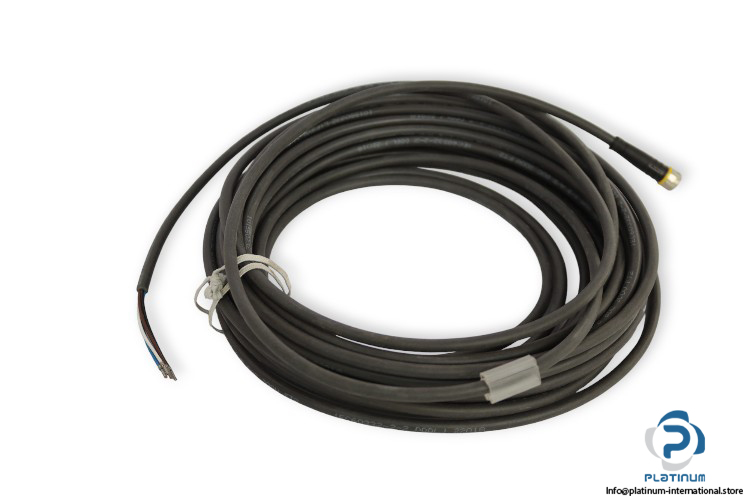

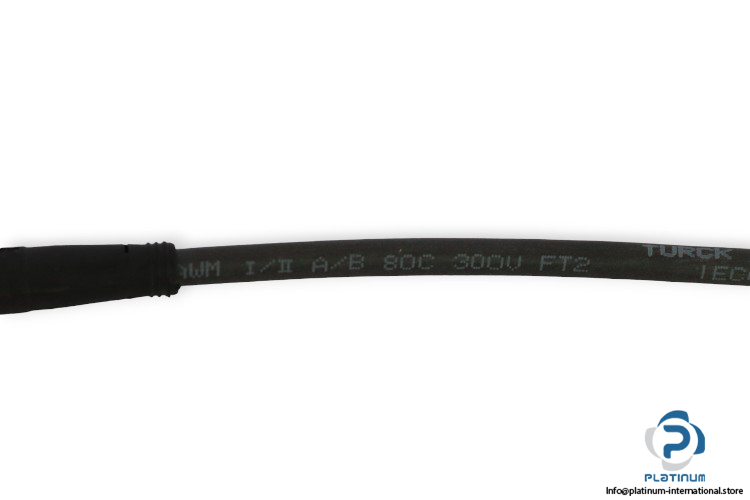

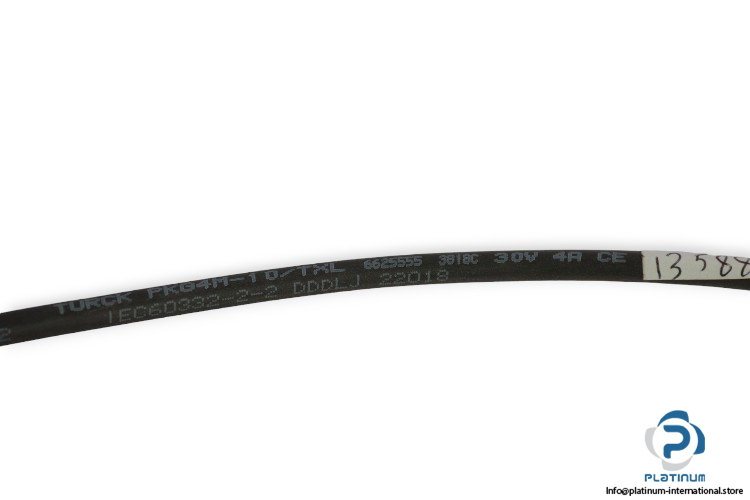

Turck PKG4M-10/TXL Actuator AND Sensor Cable

Manufacturer: TURCK
Type: Actuator and Sensor Cable
Model: PKG4M10/TXL
Part No.: 6625555

Rated Voltage: 30 V AC / 60 V DC
Rated Current: 4 A
Tightening Torque (Range): 0.5 … 0.6 Nm
Electrical Connection: Female Connector M8x1, 4-Pin, Straight
Material:
– Contacts: Brass, CuZn, Gold-Plated
– Contact Carriers, Connector Body: Plastic, TPU, Black
– Coupling Nut/Screw: Brass, CuZn, Nickel-Plated
– Seal: Plastic, FPM/FKM
Cable Jacket: PUR, Black
Cable Diameter, Length: 4.5 mm, 10 m
Connector Diameter, Length: 9.6, 33.5 mm
Protection Class: IP67/ IP69K
Ambient Temperature: -25 … 60 °C
