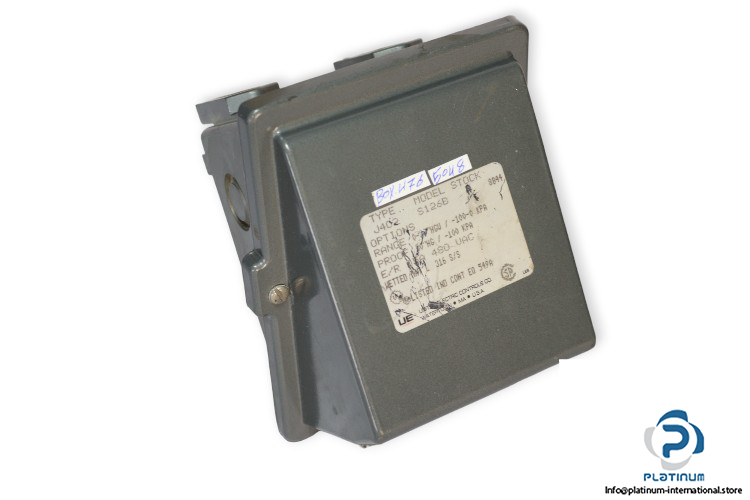

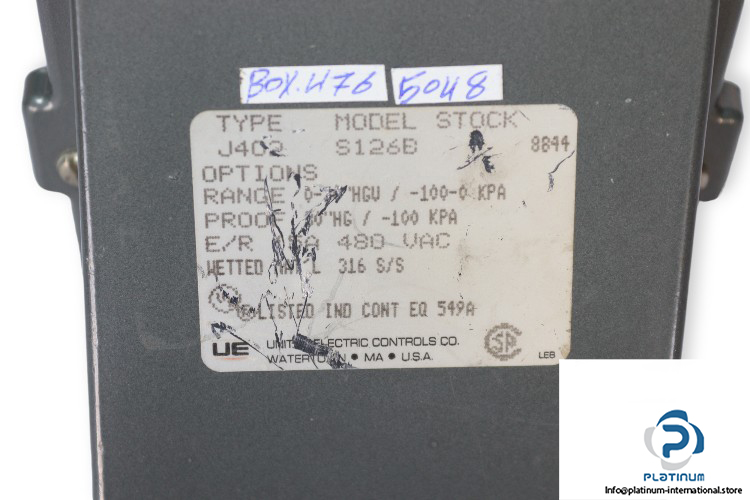

UE J402-S126B Pressure Switch

Manufacturer: UNITED ELECTRIC CONTROLS
Type: Pressure Switch
Model: S126B
Part No.: J4

Adjustable Set Point Range: 0 … 30 hg Vacuum , -100 … 0 KPa
Proof Pressure: 30” HG ,-100 Kpa

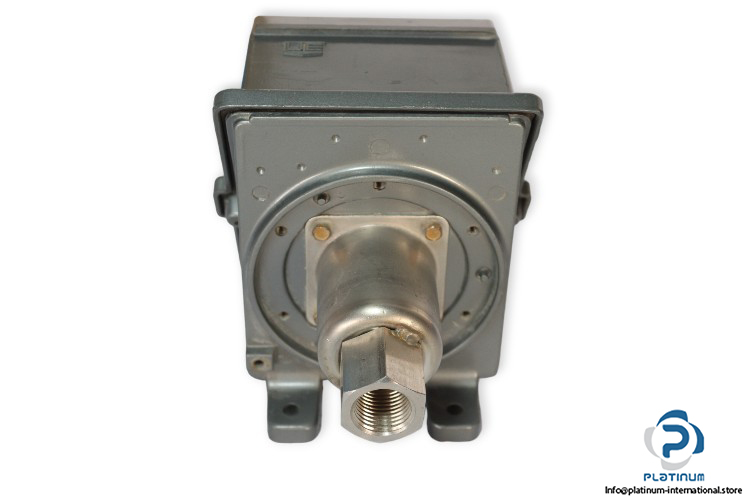

Connection: G ½
Voltage Contact Rating: 480 V AC
Max. Current Rating: 15 A
Outputs: Two SPDT outputs; internal hex screw adjustment
Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Wetted Part Material: 316 stainless steel
