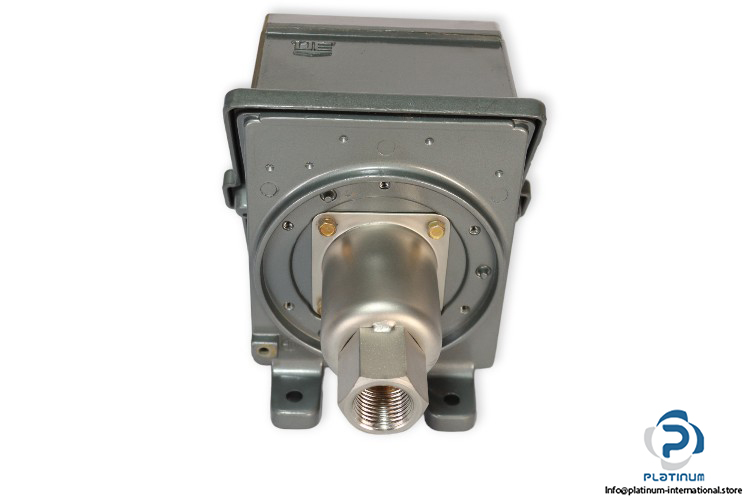

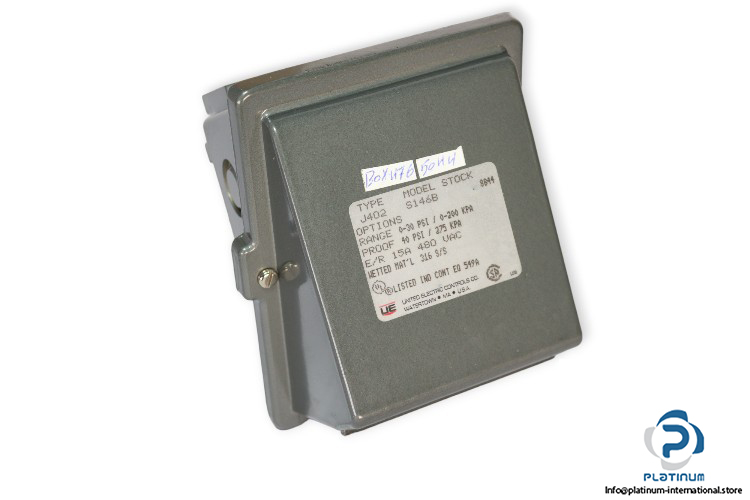

UE J402-S146B Pressure Switch
New
In stock1 unitReady to ship
Manufacturer: UNITED ELECTRIC CONTROLS Part No.: J402–S146B MNR: 8844
Type:
Pressure Switch
Model:
S146B
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: UNITED ELECTRIC CONTROLS
Type: Pressure Switch
Model: S146B
Part No.: J402–S146B
MNR: 8844
Adjustable Set Point Range: 0 … 30 PSI, 0 … 200 KPa
Proof Pressure: 40 Psi ,275 KPa
Connection: G ½
Voltage Contact Rating: 480 V AC
Max. Current Rating: 15 A
Outputs: Two SPDT outputs; internal hex screw adjustment
Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Wetted Part Material: 316 stainless steel
