Ulvac VDN401 OIL Rotary Vacuum Pump
Used
In stock2 unitsReady to ship

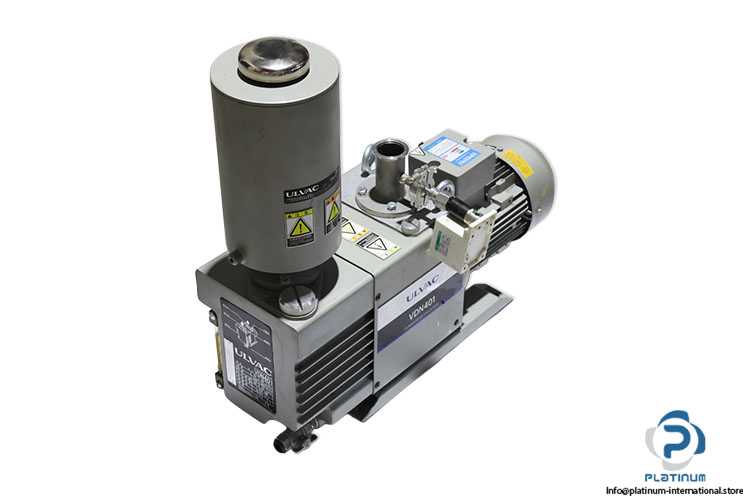

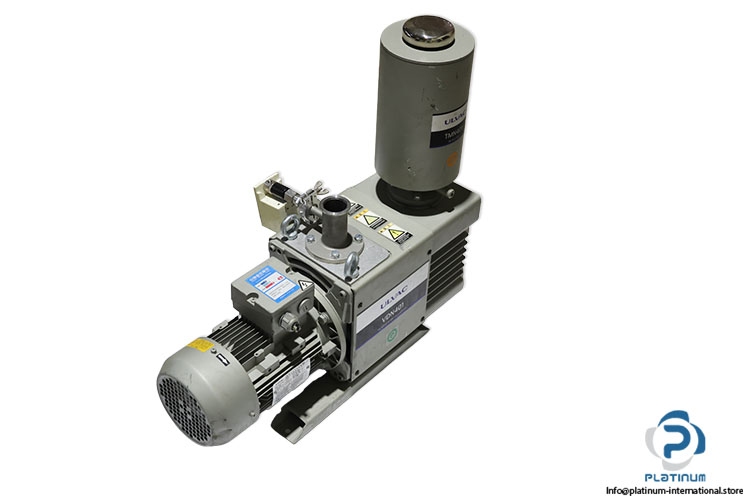

Oil Rotary Vacuum Pump ULVAC VDN401 oil rotary vacuum pump with 40/48 m³/h pumping capacity and 1.5 kW motor, supplied with a TMN401 oil mist trap and 3-phase induction motor for reliable industrial vacuum applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

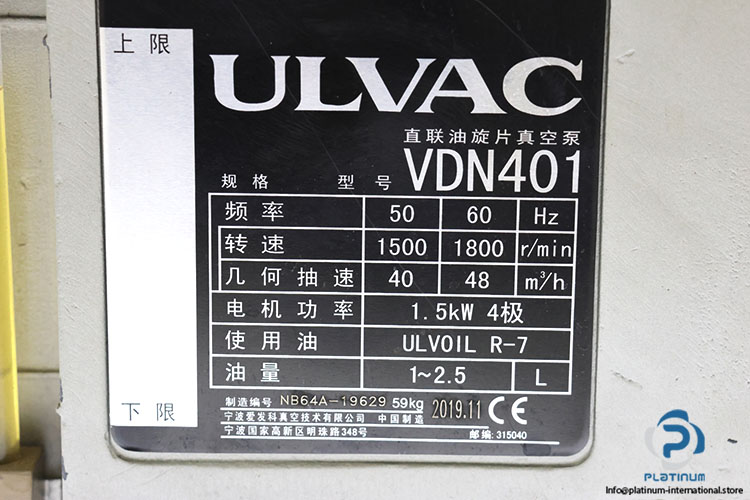

| Frequency | 50/60 hz |
| Designed pumping speed(m3/h /L/min / cfm)at 50Hz | 40/670/23.54 |
| Rotational Speed at 50 hz | 1500 r/min |
| Rotational Speed at 60 hz | 1800 r/min |
| Displacement / Pumping Speed at 50 hz | 40 m³/h |
| Displacement / Pumping Speed at 60 hz | 48 m³/h |
| Motor Power | 1.5 kW (4-Pole) |
| Recommended Oil Type | ULVOIL R-7 |
| Oil Capacity | 1.0 to 2.5 Liters |
| Certificate | CE |

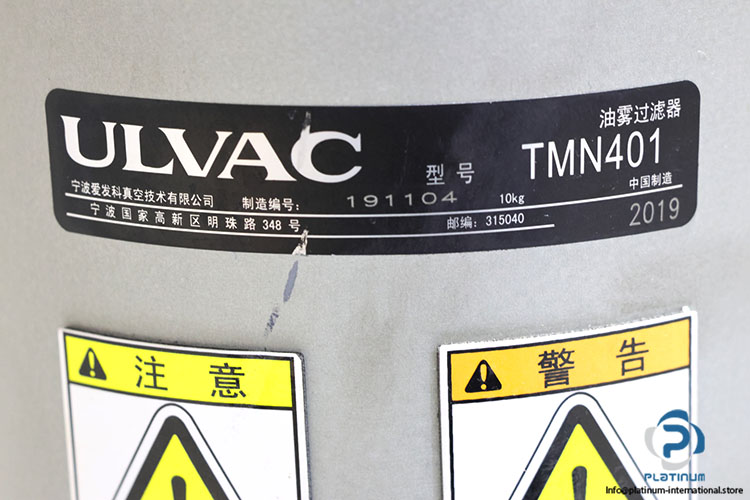

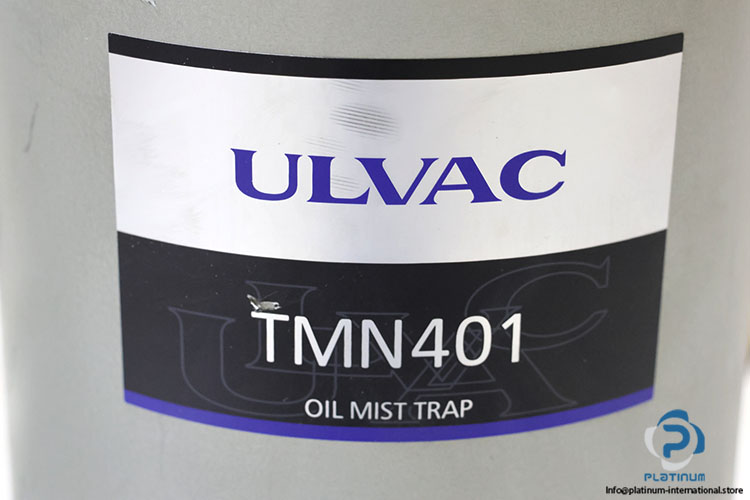

| Attached with1 | ULVAC TMN401 Oil Mist Trap |

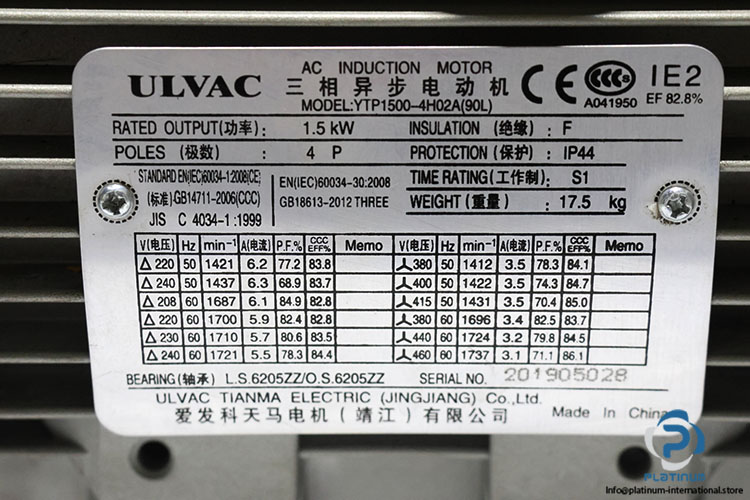

| Attached with2 | ULVAC YTP1500-4H02A(90L) 3-Phase Induction Motor |
| SERIAL NO. | 201905028 |
| Rated Output Power | 1.5 kW |
| Number of Poles | 4 Poles |
| Insulation Class | F |
| Enclosure Protection Rating | IP44 |
| Time Rating / Duty Cycle | S1 (Continuous duty) |
| Voltage (V),delta connection | 220/240/208/220/230/240 |
| Frequency (Hz) ,delta connection | 50/50/60/60/60/60 |
| Speed (min?¹),delta connection | 1421/1437/1687/1700/1710/1721 |
| Current (A) ,delta connection | 6.2/6.3/6.1/5.9/5.7/5.5 |
| Voltage (V),Star connection | 380/400/415/380/440/460 |
| Frequency (Hz) , Star connection | 50/50/50/60/60/60 |
| Speed (min?¹), Star connection | 1412/1422/1431/1696/1724/1737 |
| Current (A) , Star connection | 3.5/3.5/3.5/3.4/3.2/3.1 |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100583 |
| Weight | 70,5 |
