Univer AG-3222 Poppet Valve With Coil

UNIVER AG-3222 Poppet Valve with Coil

The UNIVER AG-3222 is a high-quality poppet valve with electrical actuation, designed for use with filtered air systems. It offers reliable operation under a wide pressure range and is paired with the UNIVER DB-0502 electrical coil for efficient and durable performance in industrial pneumatic applications.

Manufacturer: UNIVER
Type: Poppet Valve with Coil
Model: AG-3222
Part No.: 3174

Technical information “ Valve

• Fluid: 50 Ohm 1/4 m Filtered Air, with or without Lubrication
• Type of Actuation: Electrically
• Operating Pressure: 1 “ 10 bar
• Supply Voltage: 24 V DC
• Power Consumption: 10 W
• Commutation System: Poppet
• Vacuum Max.: 759.5 mm Hg
• Nominal Bore Diameter: 15 mm
• Body Material: Zamak
• Temperature Max.: 50 °C
• Port Size: G 1/2

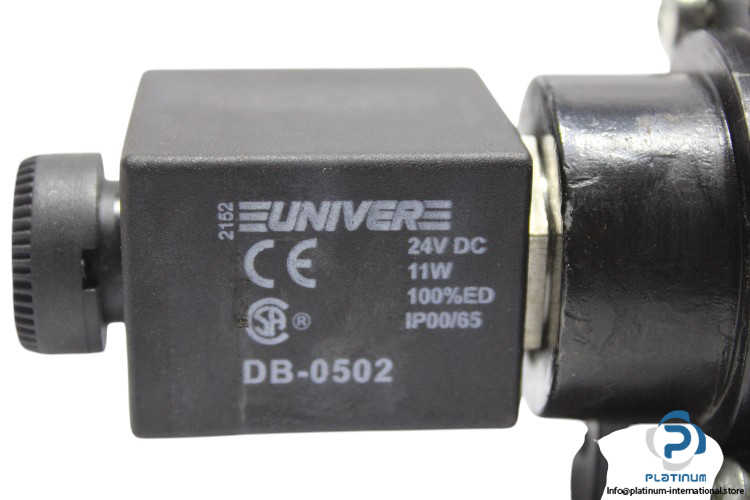

Attachment “ Electrical Coil

• Manufacturer: UNIVER
• Type: Electrical Coil
• Model: DB-0502
• Supply Voltage: 24 V DC
• Power Consumption: 10 W
• Protection Class: IP00 / IP65
• Port Size: G 1/2
