Univer DD-070 Electrical Coil
UNIVER DD-070 Electrical Coil, 220 VDC, 2.3 VA, 50/60 Hz, 7 mm inner diameter, ED 100% duty cycle. Perfect for use in industrial applications requiring continuous performance.

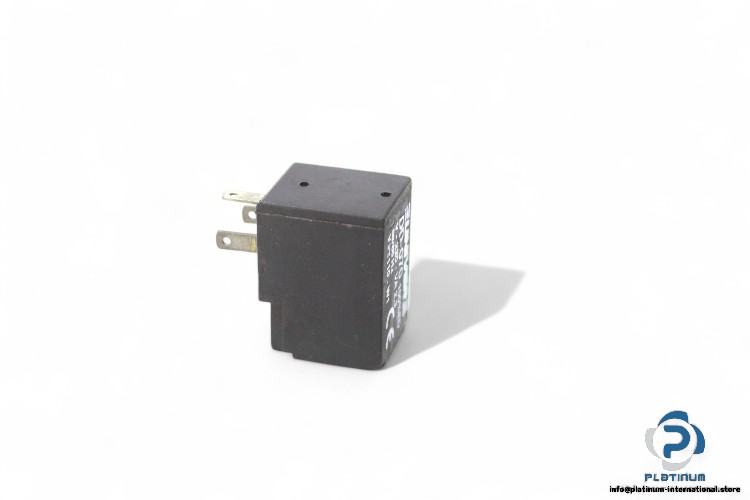

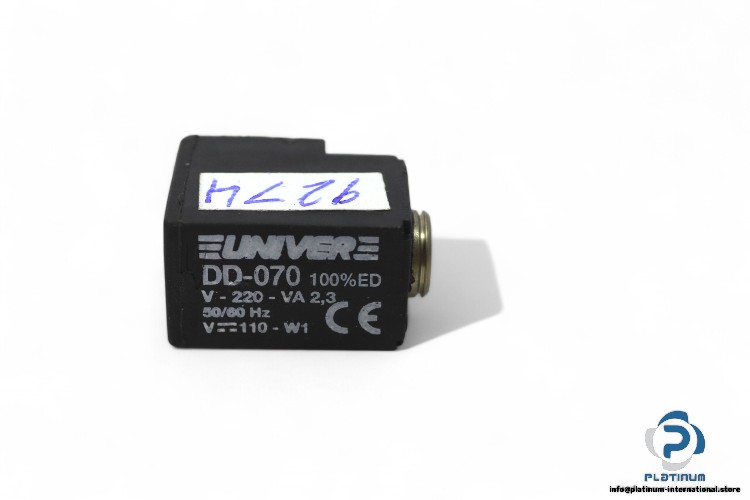

UNIVER DD-070 Electrical Coil
The UNIVER DD-070 Electrical Coil is designed for high-performance industrial applications. Operating at **220 VDC** with a power rating of **2.3 VA**, this coil offers reliable operation across frequencies of **50/60 Hz**. Featuring an **inner diameter of 7 mm** and a length of **24 mm**, it is ideal for use in solenoids, actuators, and other automation components. The **ED 100%** operation ensures continuous-duty performance for demanding industrial tasks.
🔧 Technical Specifications:
- Manufacturer: UNIVER
- Type: Electrical Coil
- Model: DD-070
- Voltage: 220 VDC
- Frequency: 50 / 60 Hz
- Power: 2.3 VA
- Electrical Connection: 3-pin
- Inner Diameter: 7 mm
- Length: 24 mm
- Operation: ED 100%
With an **ED 100%** rating, the **DD-070** coil is built to perform continuously in industrial settings. Its compact size, featuring an **inner diameter of 7 mm** and a **length of 24 mm**, ensures seamless integration into various systems.
