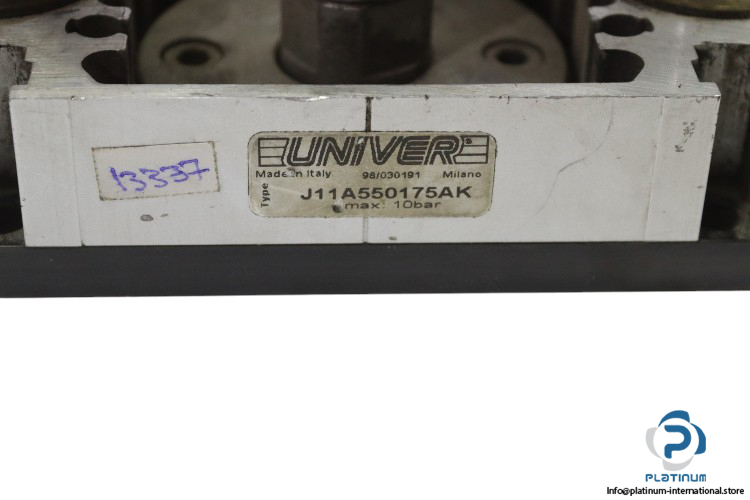

Univer J11A550175AK Slide Unit
Used
In stock1 unitReady to ship
599,99$

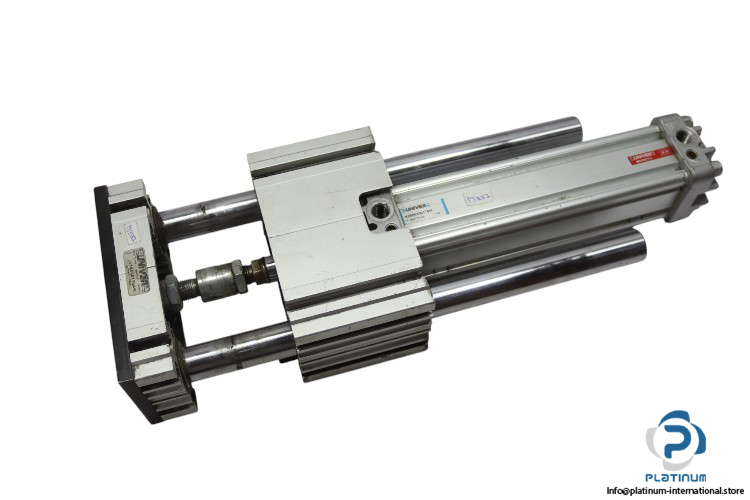

Slide Unit UNIVER pneumatic slide unit with a 50 mm bore, 175 mm stroke, anodized aluminium body, and G1/4 ports. Supplied with a UNIVER K200-050-0175-M pneumatic cylinder for precise linear motion in industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Slide unit size | 50 |
| Bore Size | 50 mm |
| Stroke | 175 mm |
| Fluid | filtered air, with or without lubrication |
| Maximum Operating Pressure | 10 bar |
| Temp Range | -20-80 °c |
| Body material | extruded anodized aluminium |
| Port Size | G1/4 |

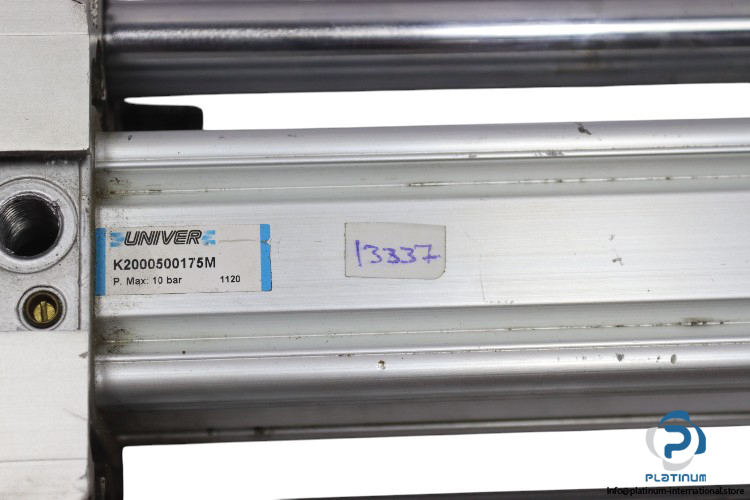

| Attached with | UNIVER K200-050-0175-M Pneumatic cylinder |
| Fluid, Pneumatic cylinder | Air |
| Barrel Material , Pneumatic cylinder | Anodized Aluminum |
| Bore Size, Pneumatic cylinder | 50 mm |
| Stroke Length, Pneumatic cylinder | 175 mm |
| Pressure Range , Pneumatic cylinder | 10 bar |
| Port Size, Pneumatic cylinder | G1/4 |
| Condition | Used |
| SKU | 1096759 |
| Weight | 6,38 |
