UWT Rotonivo RN3004 WGRN3 LGRN3D Rotary Paddle Level Switch
Used
In stock2 unitsReady to ship
500,00$
Level Switch
Durable rotary paddle level switch UWT RN3004 with stainless steel and aluminum design, DN32 flange, 400 mm tube length, and IP66 protection for solid medium detection.controDN32ElectronicFlangeIndustrialinsertIP66LevelpaddleProcessRelayRN3004Rotarysc300255SolidsSpdtstainlessSteelSwitchUWT
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

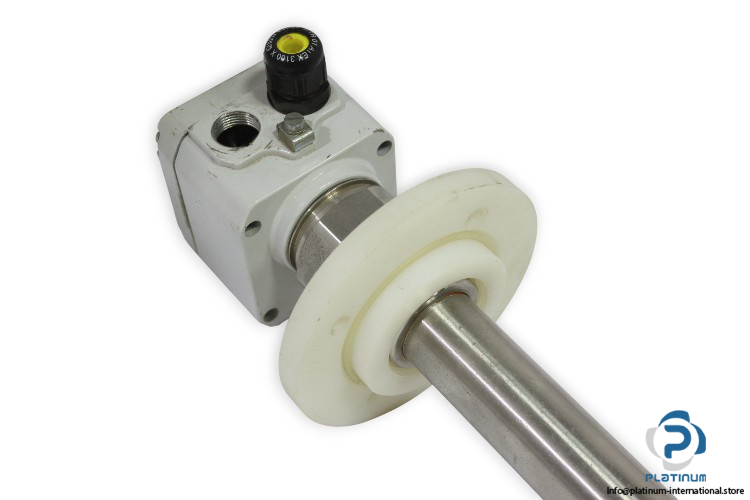

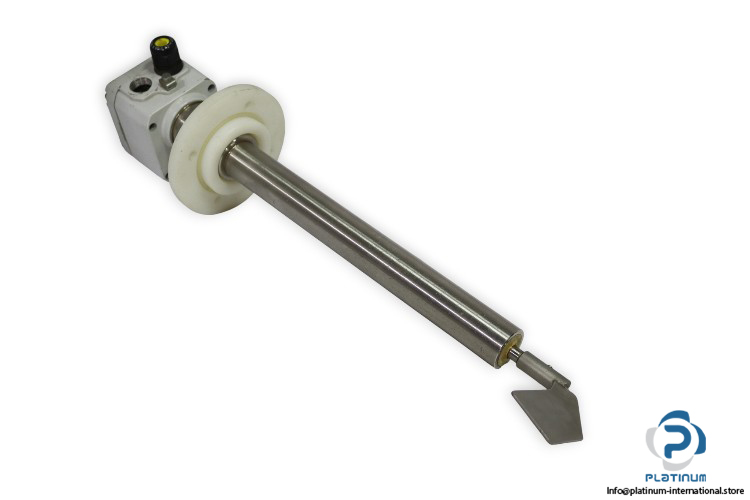

UWT RN3004 Rotary Paddle Level Switch
The UWT RN3004 is a reliable rotary paddle level switch designed for monitoring the level of solids in silos, bins, and hoppers. It ensures accurate level detection and operational safety under various process conditions.
Manufacturer: UWT
Type: Rotary Paddle Level Switch
Model: RN3004 WGRN3 LGRN3D
Attachment

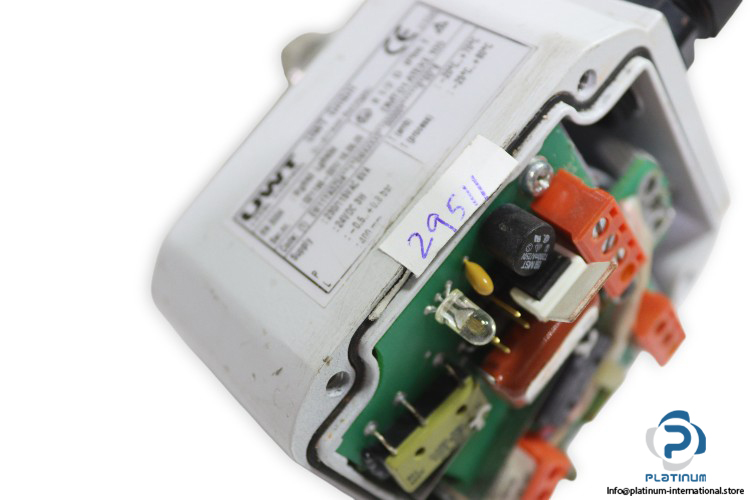

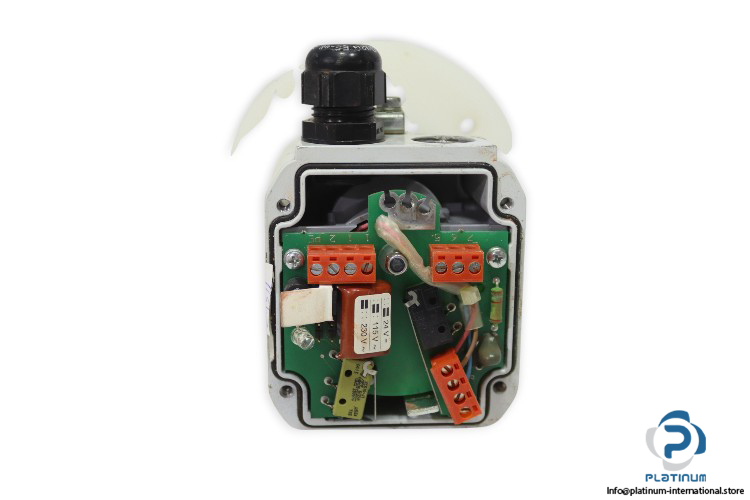

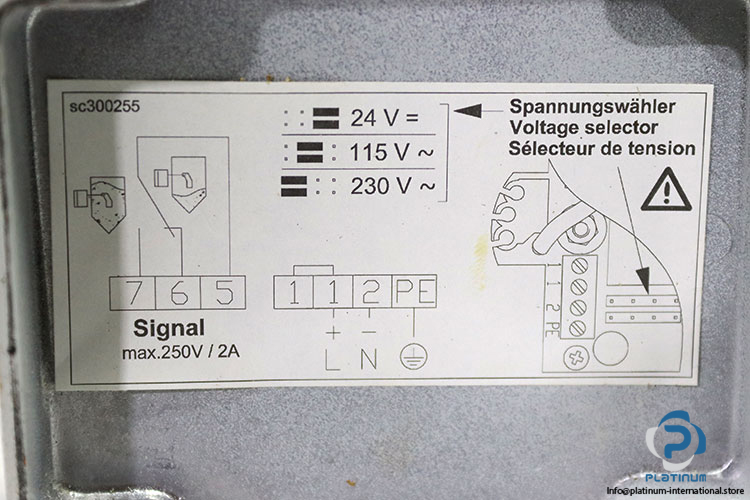

UWT sc300255 Electronic Insert
| Medium | Solids |
| Process Pressure | -0.5 / 0.8 bar |
| Supply Voltage | 24 V DC / 230 - 115 V AC |
| Power Consumption Max. | 3 W / 6 VA |
| Material | Stainless Steel |
| Flange Size | DN32 |
| Measuring Tube Length | 400 mm |
| Material | Aluminum |
| Protection Class | IP66 |
| Process Temperature | -25 / 80 °C |
| Ambient Temperature | -20 / 70 °C |
| Supply Voltage | 24 V DC / 230 - 115 V AC |
| Output Relay | SPDT Change-Over (CO) |
| Output Voltage | 250 V AC |
| Output Current | 2 A |
