VEB EB 20/50 C12 Electro Hydraulic Thruster
Used
In stock1 unitReady to ship
Electro Hydraulic Thruster
VEB EB 20/50 C12 electro hydraulic thruster with 50 mm stroke, 120 N return force, continuous-duty operation, and IP56 protection for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
VEB EB 20/50 C12 Electro Hydraulic Thruster
The VEB EB 20/50 C12 is an electro hydraulic thruster designed for precise and reliable actuation in industrial brake and control systems. It provides consistent force output, stable stroke movement, and continuous-duty capability under demanding operating conditions.

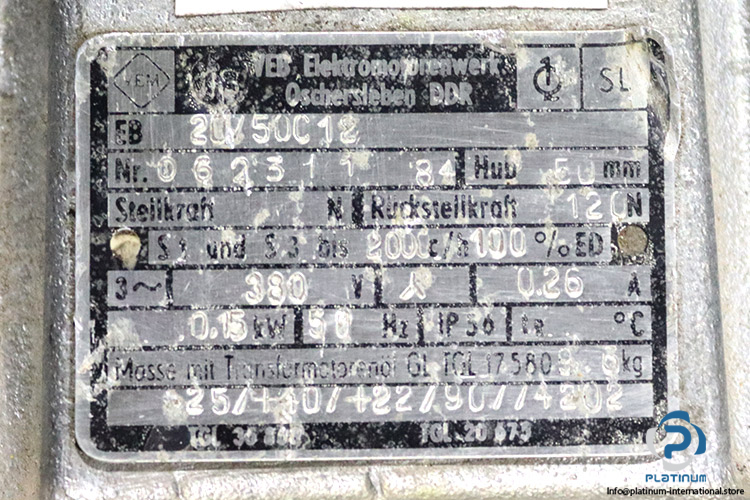

Manufacturer: VEB
Type: Electro Hydraulic Thruster
Model: EB 20/50 C12
Part No.: 062311 84
Configuration Code: -25/+40/+22/90//4202
Operating Temperature Range:
| Stroke | 50 mm |
| Return Force | 120 N |
| Switching Frequency (S3 Operation) | 2000 cycles/hour |
| ED | 100% |
| Standard | TGL 17 580 |
| Motor Type | 3 Phase, Star |
| Voltage | 380 V |
| Current | 0.26 A |
| Power | 0.15 kW |
| Frequency | 50 Hz |
| Protection Class | IP56 |
| Minimum Ambient Temperature | -25°C |
| Maximum Ambient Temperature | +40°C |
