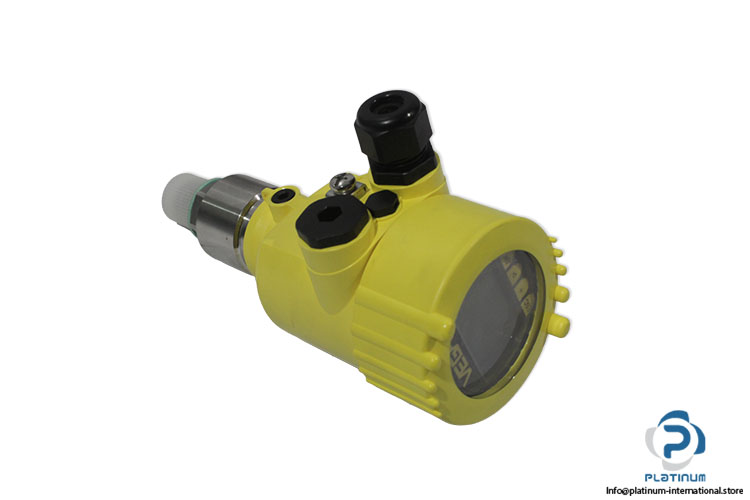

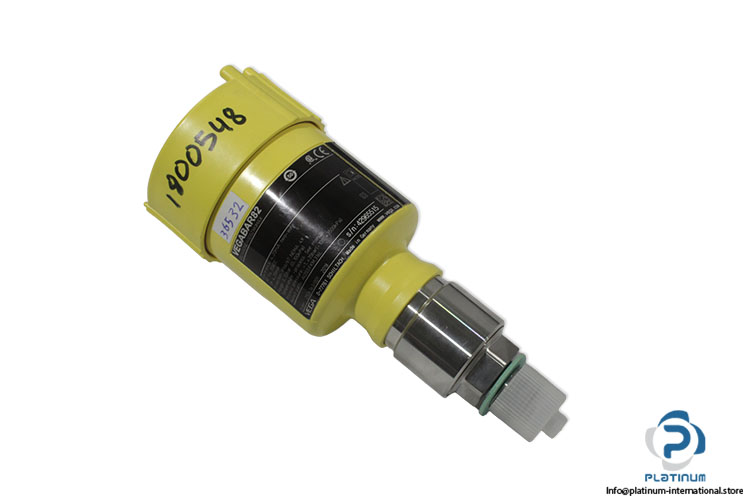

Vega B82.AXDNDAGDSZXKIMAX Pressure Transmitter
New
In stock1 unitReady to ship
Pressure Transmitter VEGA VEGABAR 82 pressure transmitter with ceramic measuring cell, 4…20 mA two-wire electronics, wide operating temperature range, and IP66/IP67 protection for industrial process automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

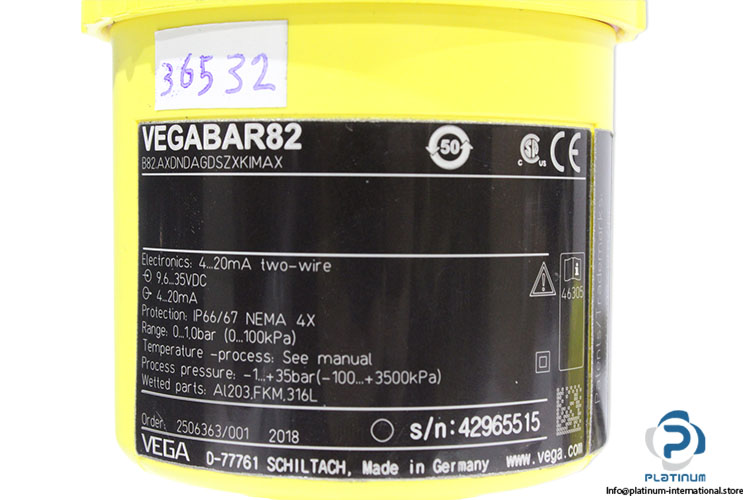

| Series | VEGABAR 82 |
| Part No. | B82.AXDNDAGDSZXKIMAX |
| SN | 42965515 |
| Part No. | 2506363/001 |
| Operating voltage | 9.6 … 35 V DC |

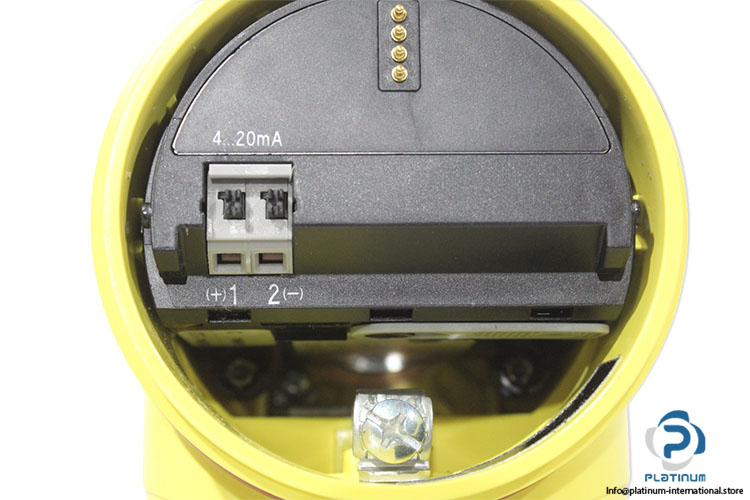

| Electronics versions ,two-wire electronics with | 4 … 20 mA |
| Smallest measuring range | +0.025 bar/+2.5 kPa |
| Process fitting | Threads from G½, flanges from DN 15, ¾", hygienic fittings |
| Process temperature | -40 … +150 °C (-40 … +302 °F) |
| Ambient, storage and transport temperature | -40 … +80 °C (-40 … +176 °F) |
| pressure range | 0 ... 1.0 bar |
| Process pressure | -1 .. +35bar(-100 ... +3500kPa) |
| Wetted parts | Al203.FKM,316L |
| Protection | IP66/ IP67 NEMA 4X |

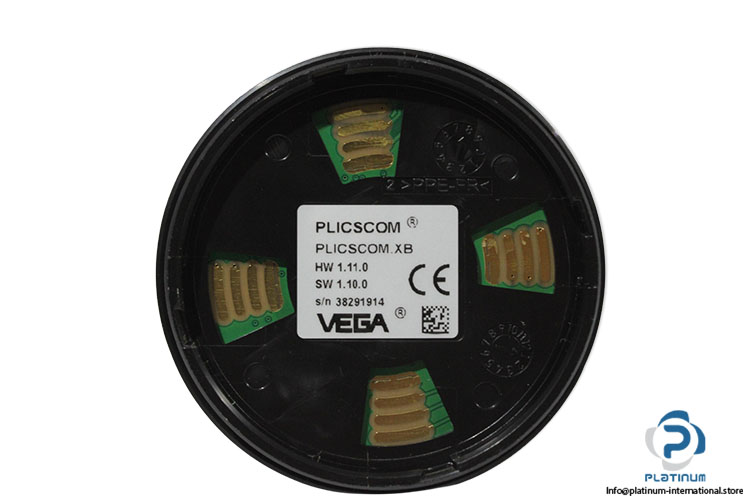

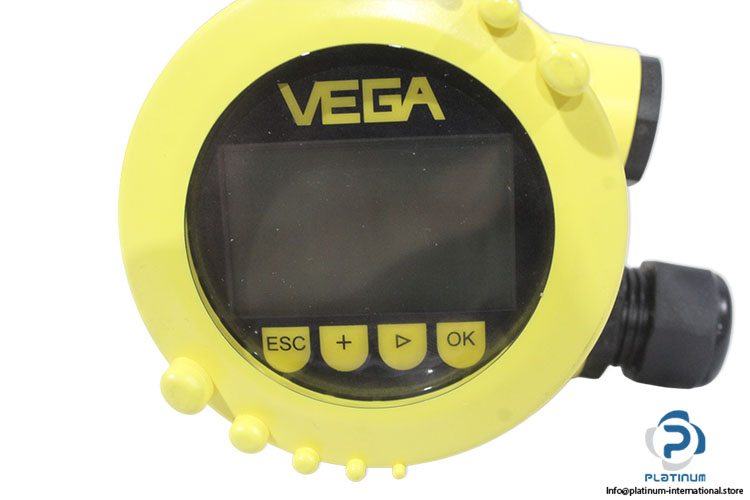

| Attached with | Vega Plicscom. XB Pluggable Display |
| HW | 1.11.0 |
| SW | 1.10.0 |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099083 |
| Weight | 0,76 |
