VEGA B82.AXDNDAGGSZXKIMAX Pressure transmitter
New
In stock3 unitsReady to ship
422,22$

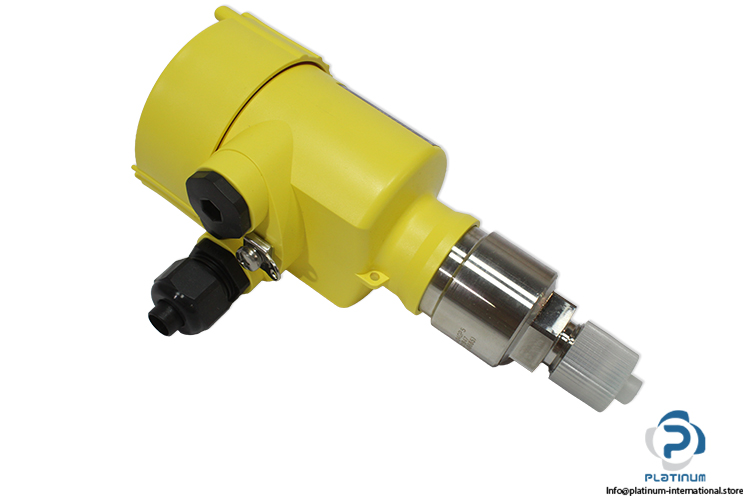

VEGA VEGABAR 82 Pressure Transmitter The VEGA VEGABAR 82 is a high-accuracy pressure transmitter designed for demanding industrial process measurement applications. Featuring a ceramic measuring cell, 4…20 mA two-wire electronics, wide temperature tolerance, and exceptional 0.05% accuracy, it delivers reliable pressure monitoring in harsh industrial environments.
Pressure Range:
0 … 10 Bar
Output Signal:
4 … 20 mA
Operating Voltage:
9.6 … 35 V DC
Accuracy:
0.05 %
Protection:
IP66/IP67 TYPE 4X
Process Temperature:
-40 … 150 °C
0.2AccuracyANDApplicationsAtexDeltabardemandingdifferentialFieldbusforFoundationHartIndustrialInstrumentationIP66PAPresPressureProcessProfibusProtectionSensorsTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

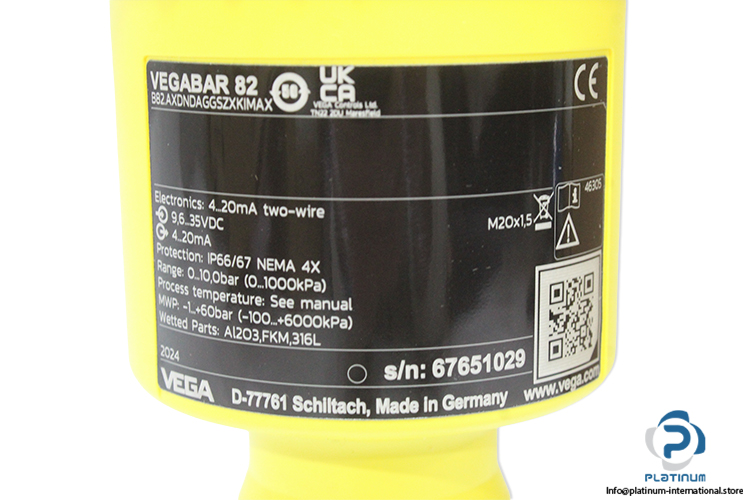

| Part No. | B82.AXDNDAGGSZXKIMAX |
| Ref NO | 4500030276/3219781 / 1 |

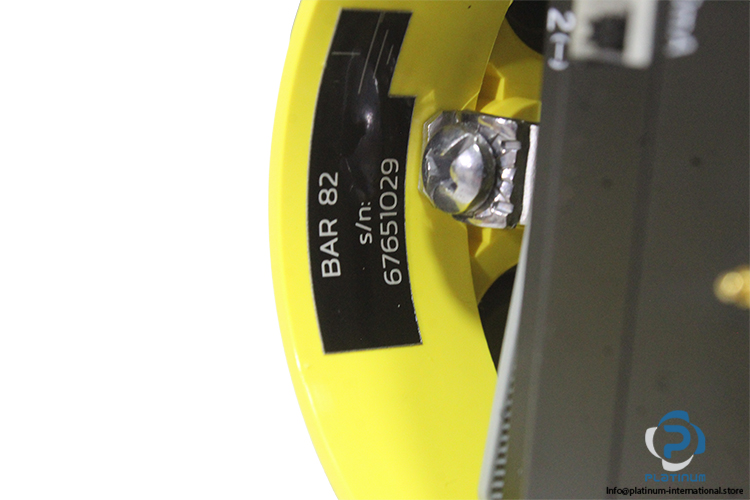

| SN | 67651029 |
| Code | BAR 82 |
| Operating voltage | 9.6 … 35 V DC |

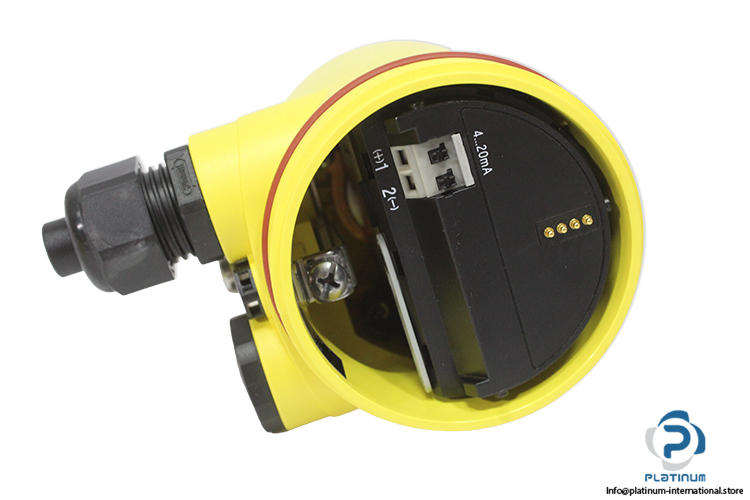

| Electronics versions ,two-wire electronics with | 4 … 20 mA |
| pressure Range | 0 ... 10bar |
| Max Working pressure | -1 to +60bar (-100.+6000kPa) |
| Process temperature | -40 ... 150 °C |
| Materials, wetted parts | Al203,FKM,316L |
| Accuracy | 0.05 % |

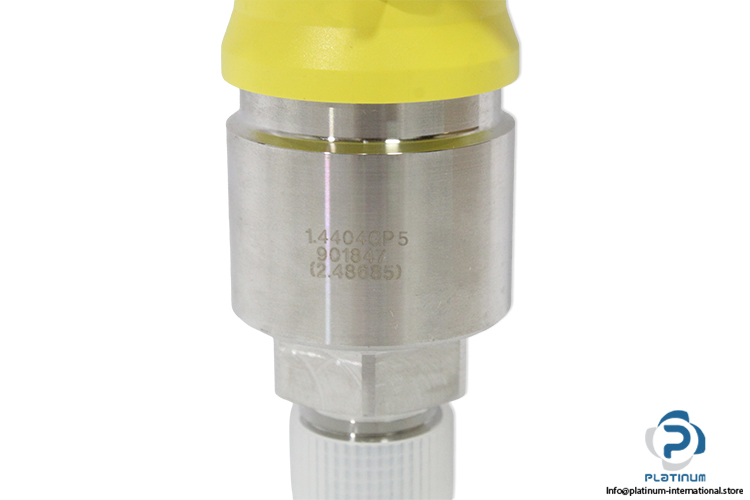

| Process fitting / Material | Thread G1/2, Inside G¼, ISO228-1 /316L |
| Threaded connection | G¼ |
| Flange connection | DN15 |
| Ambient temperature | -40 ... 80 °C |
| Protection | IP66/IP67 TYPE 4X |

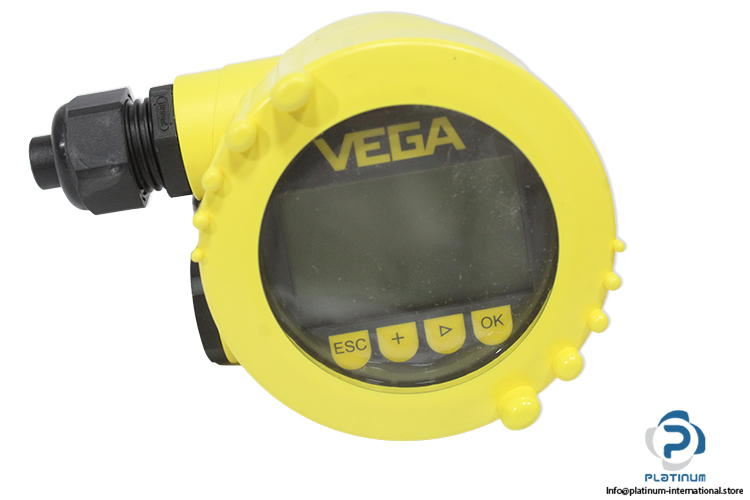

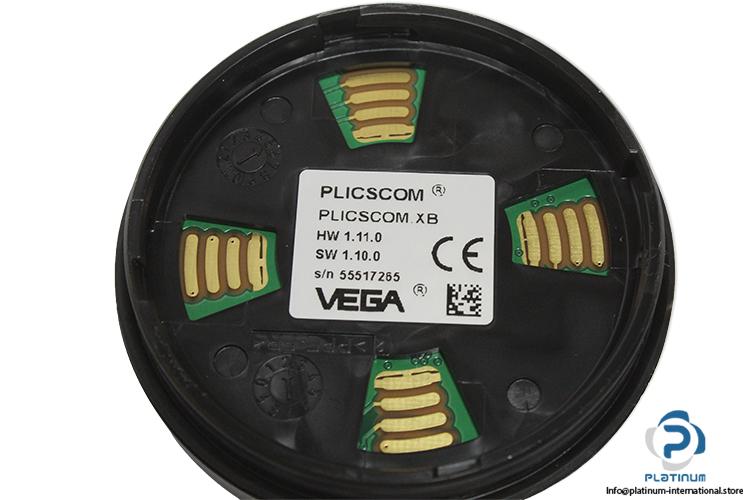

| Attached with | VEGA PLICSCOM.XB, a pluggable display and adjustment module |
| HW | 1.11.0 |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099052 |
| Weight | 1,2 |
