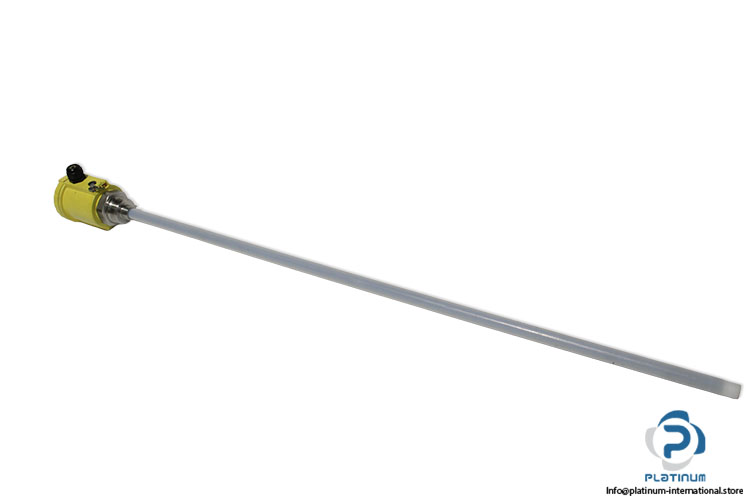

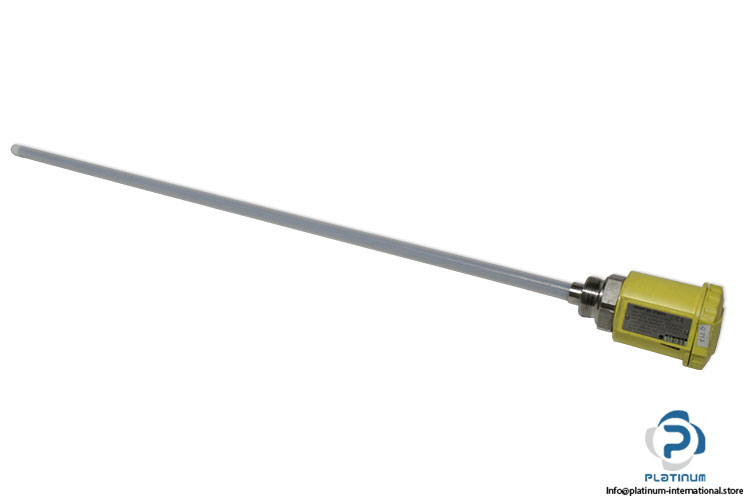

Vega EL21EX0.CGBVSDXXKEX Capacitive Electrode
Used
In stock2 unitsReady to ship
Capacitive Electrode VEGA explosion-protected capacitive electrode designed for reliable level detection, hazardous area monitoring, and industrial process automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

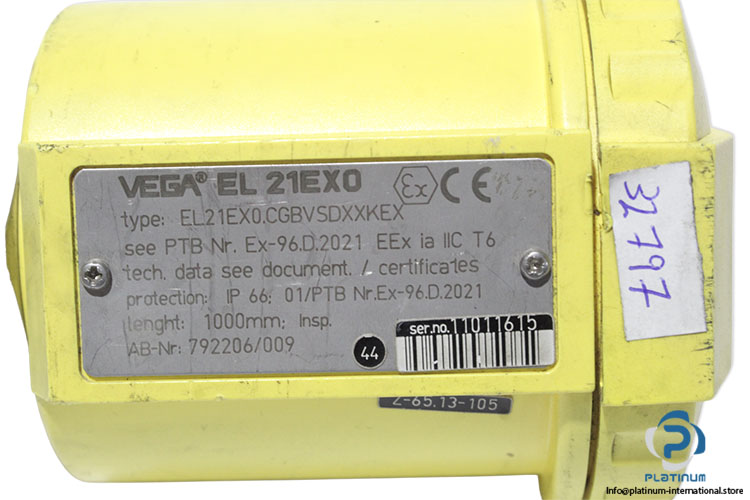

| Part No. | EL21EX0.CGBVSDXXKEX |
| AB-Nr | 792206/009 |

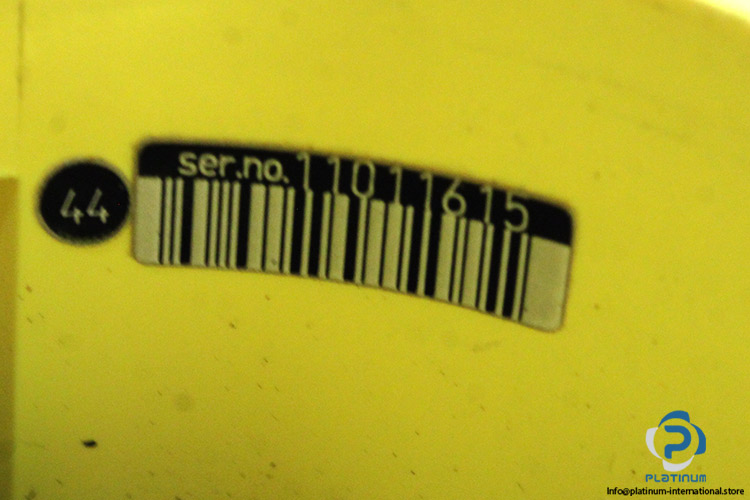

| SN | 11011615 |
| Type of Protection | Explosion Protection EX |
| Housing Material | Plastic PBT (polyester) |
| Protection Level | IP66 |
| Length | 1000 mm |
| Cable entry | 1 piece M20 x 1,5 |
| Terminals | for max. 1,5 mmcross-section area of conductor |
| Electrode Material | steel |
| Ambient temperature on the housing | -40°C ... +80°C |

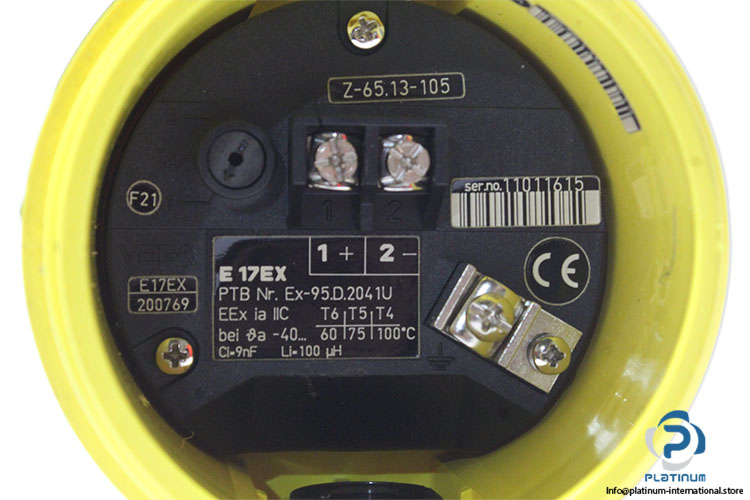

| Attached with | VEGA E 17EX electronics module |
| Code | Z-65.13-105 |
| Protection Type | EEx ia IIC |
| Temperature Ratings | T6 at -40 to 60°C, T5 at 75°C, and T4 at 100°C. |
| Electrical Ratings | Includes capacitance (Ci=9nF) and inductance (Li=100µH) ratings for safety. |
| Stock Key | CON-003 |
| Condition | Used |
| SKU | 1099041 |
| Weight | 2,75 |
