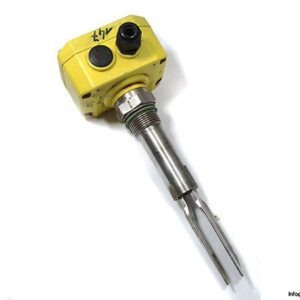

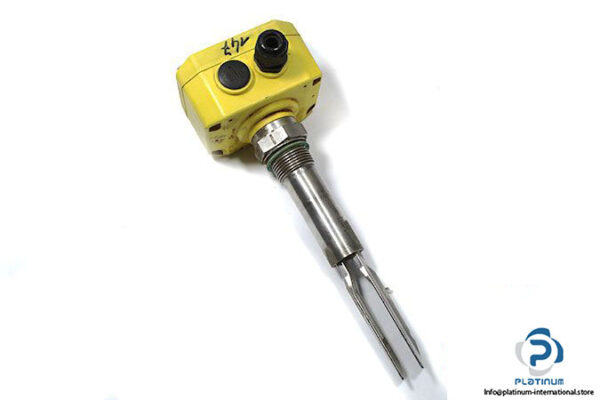

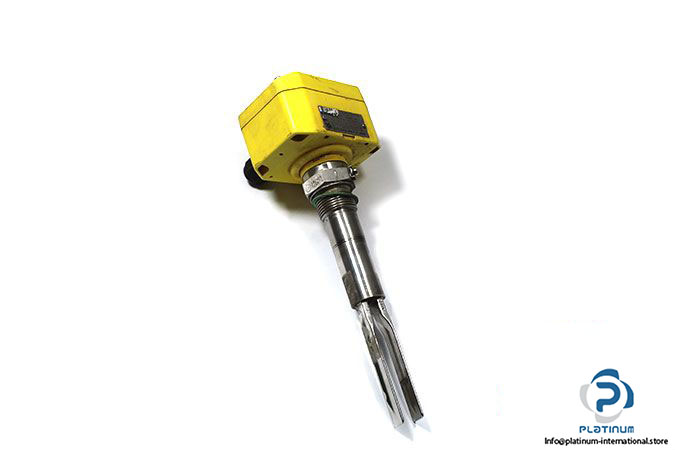

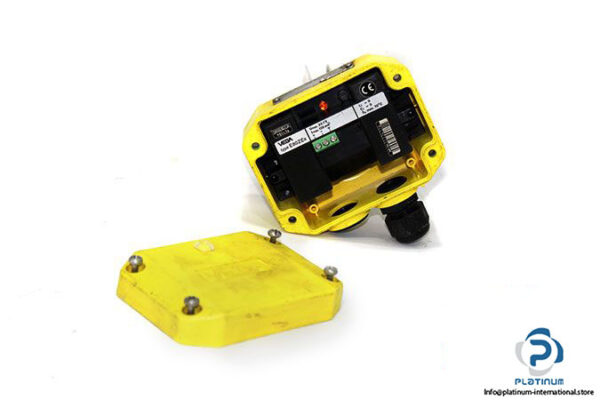

Vega Swing 83G1Z5EX Level Switch

Manufacturer: VEGA ‎

Type: Level Switch

Series: SWING

Model: 83G1Z5EX

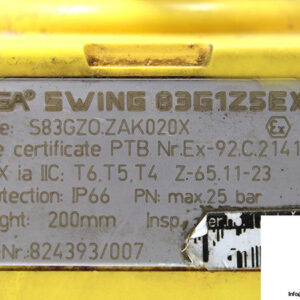

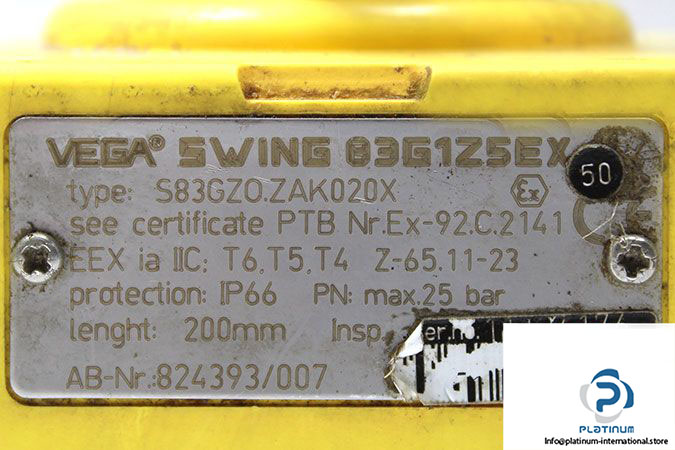

Part No.: S83GZ0.ZAK020X

Power Supply: 20 … 53 V AC, 20 … 72 V DC

Power consumption: max. 3 W

Connection: Threaded 1”

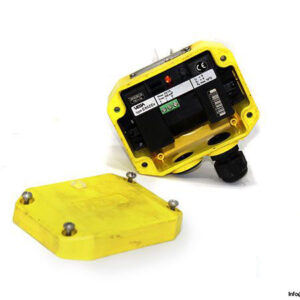

Housing: PBT Polyester

Material: 1.4571

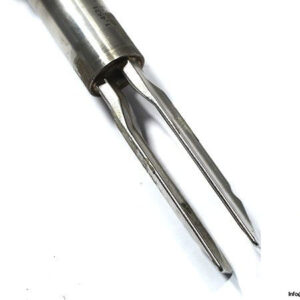

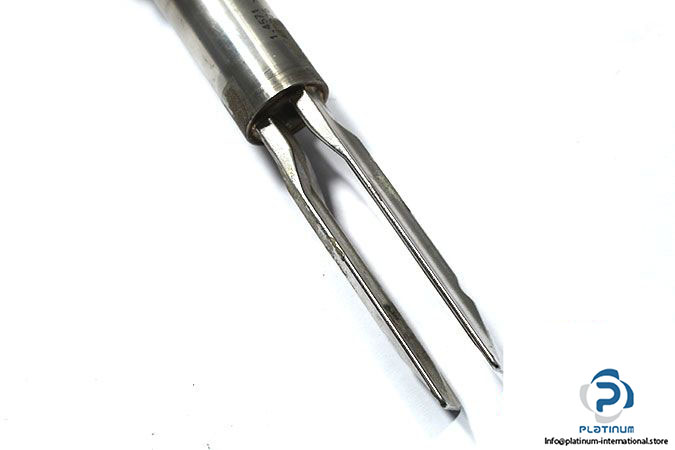

Probe length: 20 cm

Operating pressure: max. 25 bar

Expulsion No.: Ex-92.C.2141

No. of inputs: 2

Data Transmission: analogue

Switching threshold: 12 mA

Resistor per conductor: max. 35 Ω

No. of Outputs:

Outputs: 2 Switching relays, 1 fail safe  relay

Switching Current: 10 µA … 3 A AC

Protection: IP66

Weight: 0.86 kg
