VEM K20O 63 G 6 U FNS-K/10076 3 Phase Asynchronous Motor
New
In stock2 unitsReady to ship
577,77$
3 PHASE ASYNCHRONOUS MOTOR WITH ENCODER
VEM K20O 63 G 6 U FNS-K/10076 0.12 kW 3-phase motor with IP54 protection, 920 min»¹ speed, and attached Baumer 1024-pulse incremental encoder for precise automation control.1024200V3663AsynchronousAutomationBaumerDriveEncoderGIncrementalIndustrialIP54K20OmotorPhasePulseUVEMWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

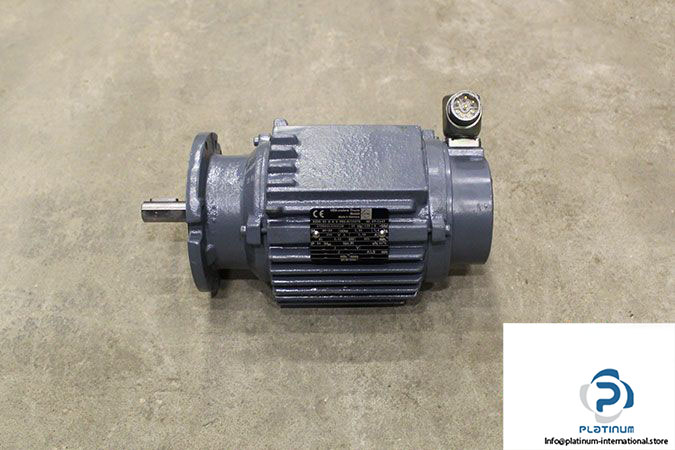

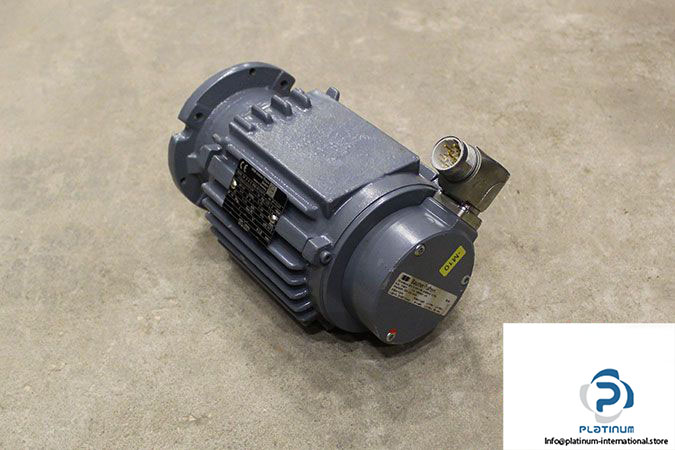

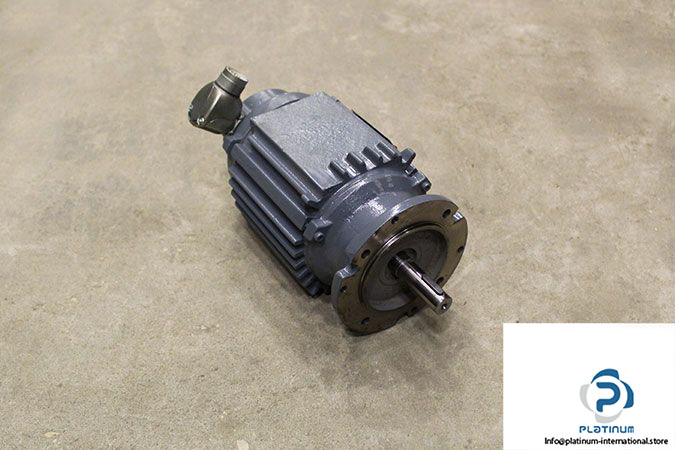

VEM K20O 63 G 6 U FNS-K/10076 3 PHASE ASYNCHRONOUS MOTOR WITH BAUMER INCREMENTAL ENCODER
This VEM 3 Phase Asynchronous Motor is engineered for continuous-duty applications, featuring an attached Baumer Thalheim incremental encoder for high-resolution position feedback. It is suitable for industrial automation where efficiency and precision are critical.
Manufacturer: VEM
Type: 3 Phase Asynchronous Motor
Model: K20O 63 G 6 U FNS-K/10076
Part No.: 0795801034812H
Ref No.: 98.07-1167

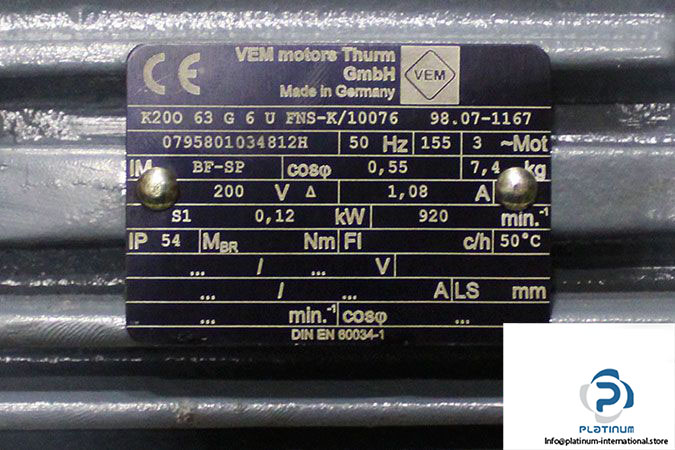

Technical Information – Motor
- Rated Voltage (Delta): 200 V
- Rated Current: 1.08 A
- Rated Speed: 920 min»¹
- Frequency: 50 Hz
- Mounting Position: BF-SP
- Power Factor: 0.55
- Rated Power: 0.12 kW
- Duty: S1
- Protection Class: IP54

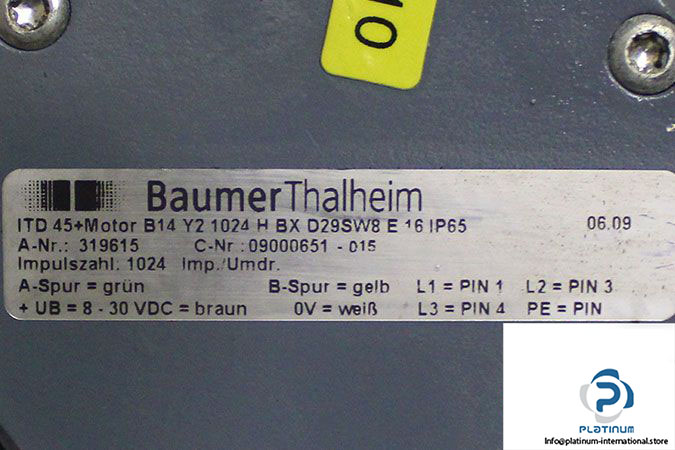

Attachment – Incremental Encoder
Manufacturer: Baumer Thalheim
Type: Incremental Encoder
Art No.: 319615
C No.: 09000651-015
MNR: ITD 45+Motor B14 Y2 1024 H BX D29SW8 E 16 IP65
- Pulse Number: 1024
- Voltage Supply: 8 / 30 VDC

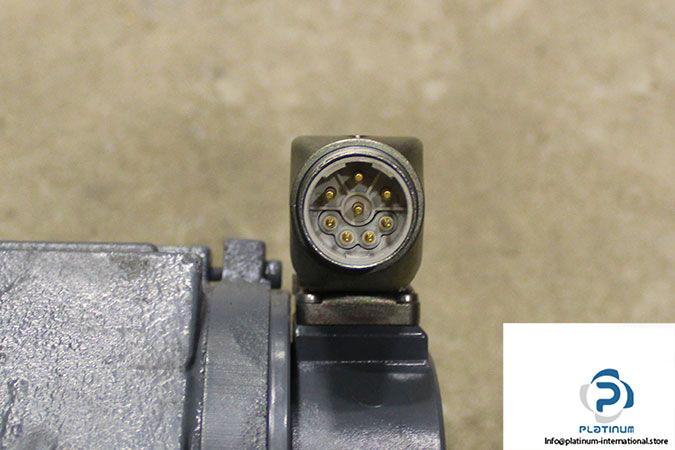

- Signals: HTL level, push-pull
- Output Signals: BX
- Operating Temperature: -20 / +70 °C
- Flange: Synchro Flange
- Solid Shaft Diameter: 16 mm
- Protection Class: IP65
