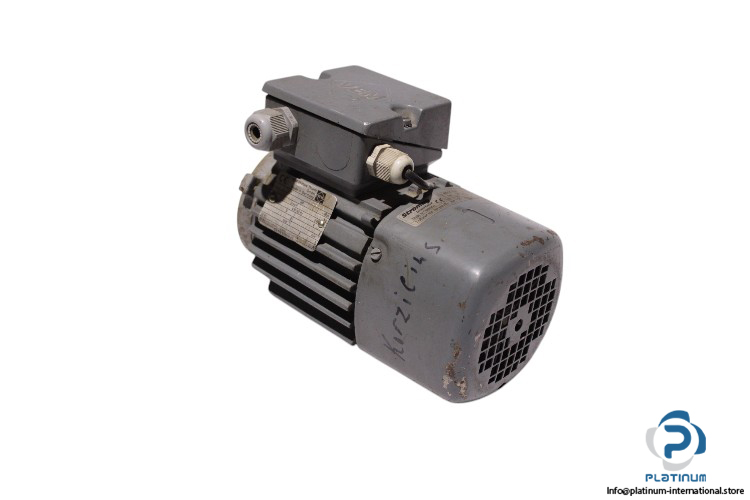

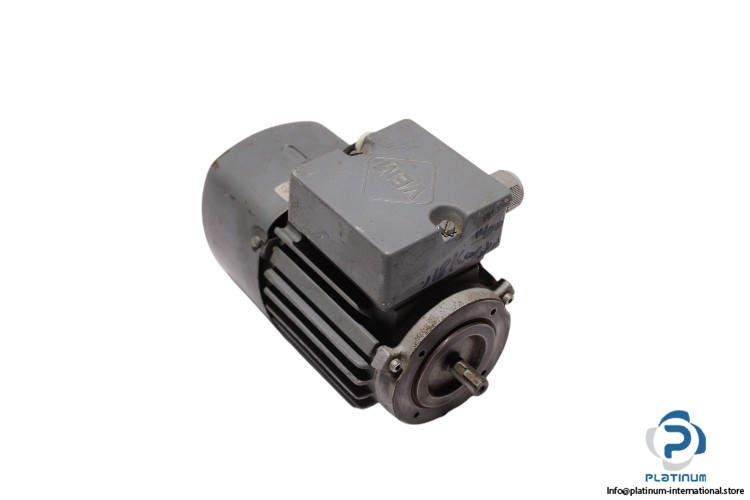

VEM K21R 63 G 4 Brake Motor

VEM K21R 63 G 4 BRAKE MOTOR

The VEM K21R 63 G 4 Brake Motor is designed for efficient and reliable performance in industrial applications. With a rated power range of 0.18 kW to 0.21 kW and robust features, it provides smooth and precise operation. This motor is equipped with a STROMAG BZFM 0.25 brake, ensuring safety and reliable braking in critical applications.

Manufacturer: VEM

Type: BRAKE MOTOR

Model: K21R 63 G 4

Part no: 0118589019005H

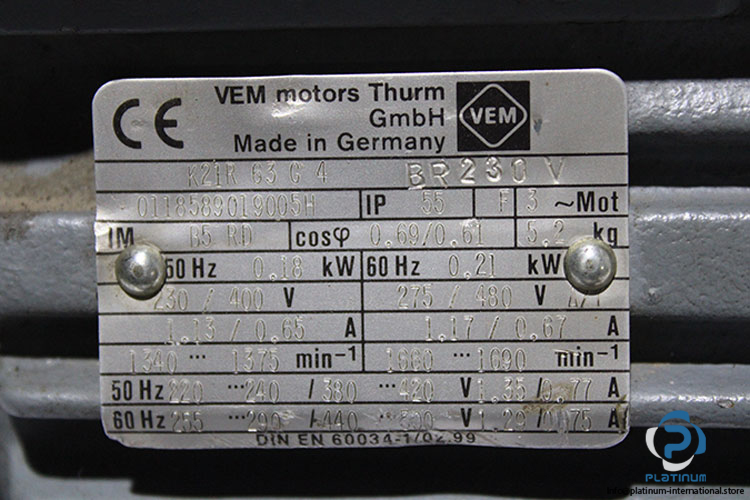

Technical Specifications

• Rated Power [kW]: 0.18 / 0.21
• Rated Voltage [V]: 230 “ 400 / 275 – 480
• Rated Current [A]: 1.13 “ 0.65 / 1.17 “ 0.67
• Rated Speed [min-1]: 1340 – 1375 / 1660 – 1090
• Frequency [Hz]: 50/60
• Protection Class [IP]: 55
• Thermal Class: F
• Power Factor [cos]: 0.69/0.61
• Mounting Position [IM]: B5

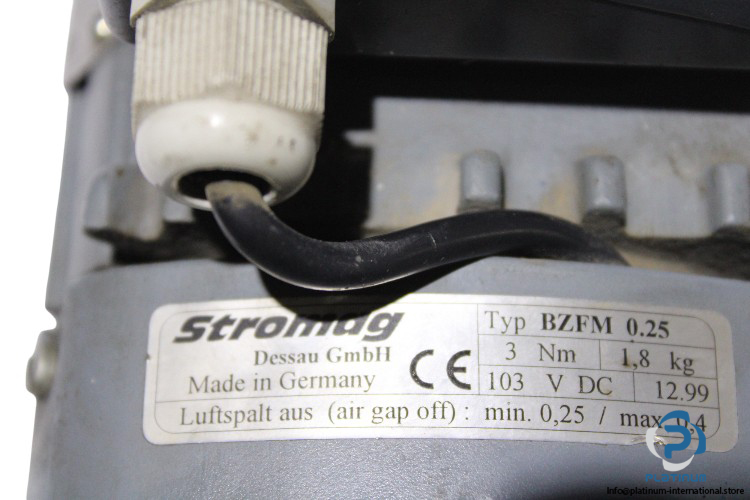

• Attachment: STROMAG BZFM 0.25 BRAKE
• Rated Torque [Nm]: 3
• Rated Voltage [Vdc]: 103
