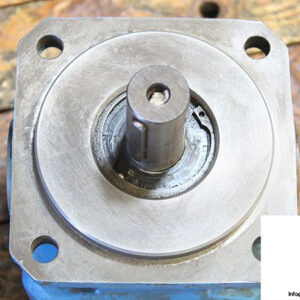

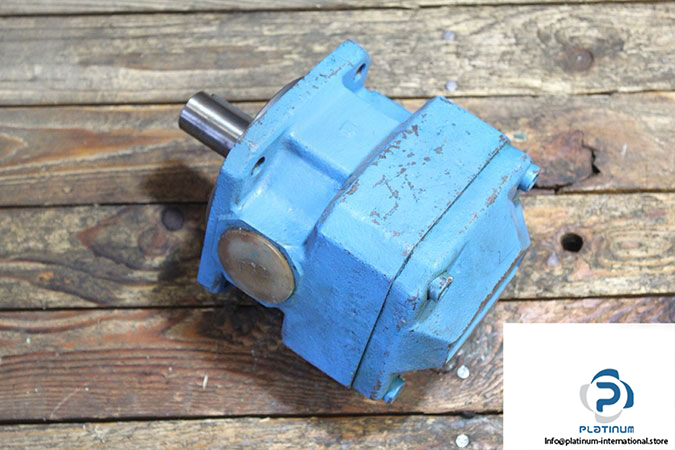

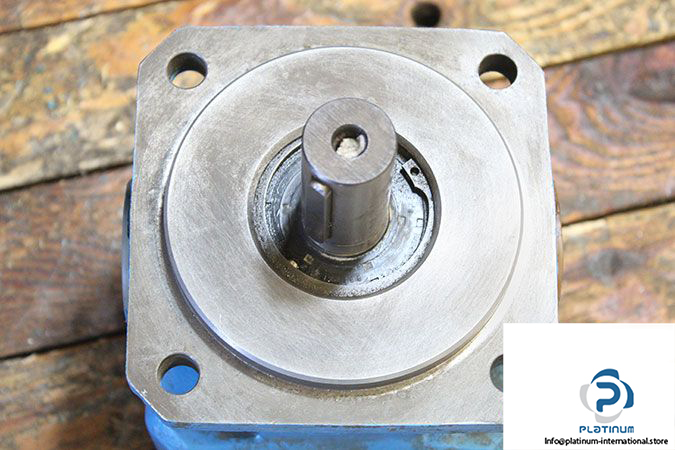

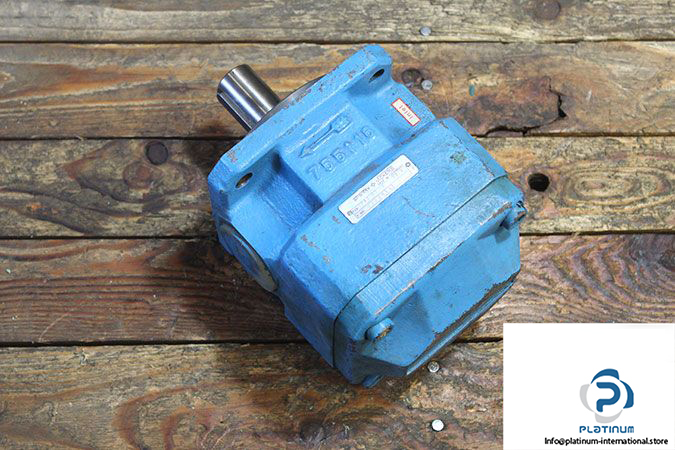

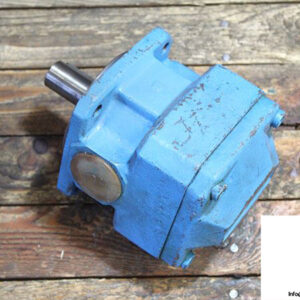

Vickers GPA3-63-E-22R Internal Gear Pump

Manufacturer: Vickers

Type: Internal Gear Pump

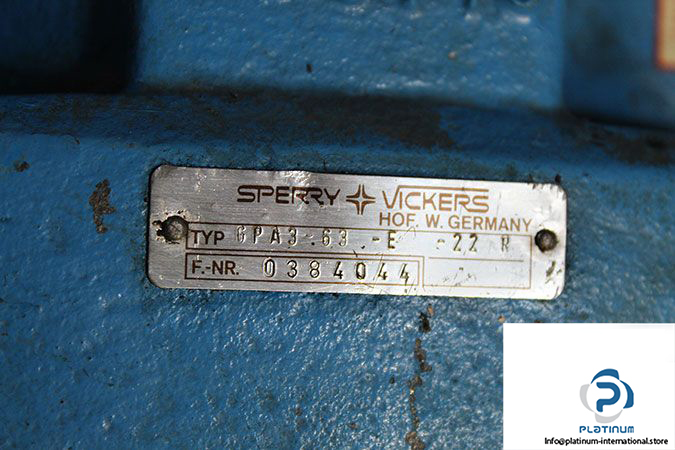

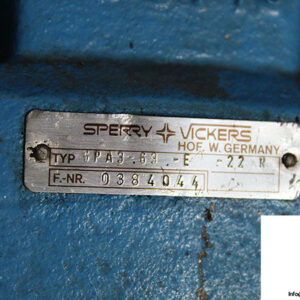

Model: GPA3-63-E-22R

Size: 63

Displacement: 63.60 cm³

Direction of Rotation: Clockwise

Output flow at 1500 rpm: 87.7 l/min

Max. Pressure: 100 bar

Speed at 20 bar: 2300 min^-1

Speed at 100 bar: 2000 min^-1

Shaft Diameter: 30 mm

Max Torque: 102.4 Nm

Input Power at 1500 rpm: 16.8 Kw

Weight: 19.3 Kg
