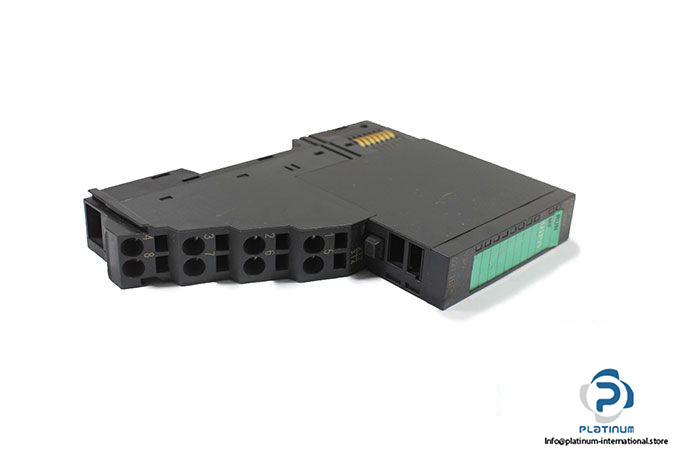

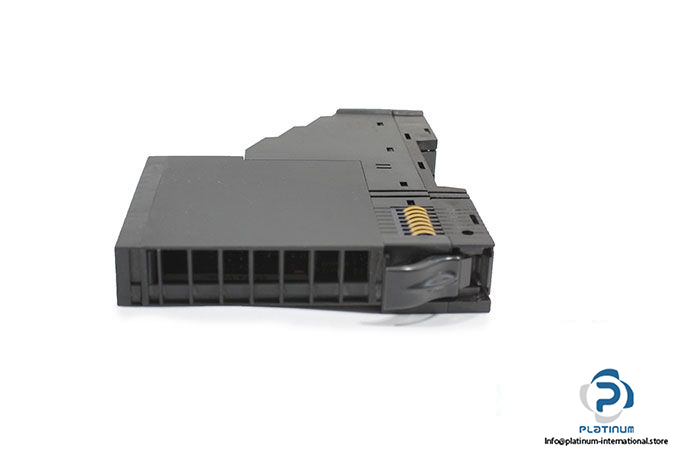

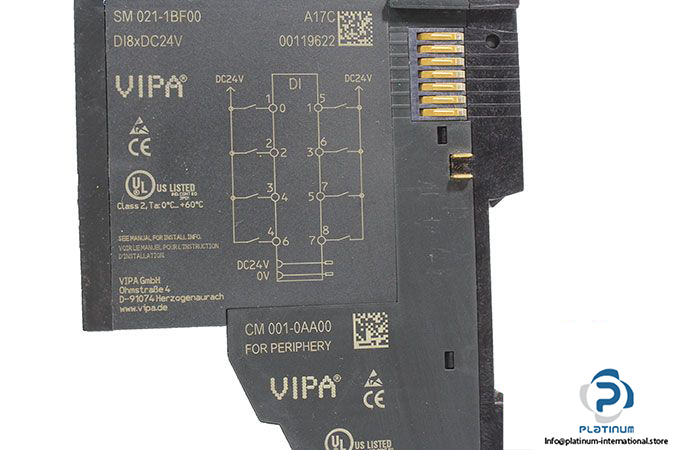

Vipa 021-1BF00 Signal Modules Digital

Manufacturer: VIPA YASKAWA

Type: Signal Modules Digital

Model: SM 021-1BF00

Order No.: 021-1BF00

Rated Value: 20.4 … 28.8 VDC

Input Voltage for Signal “0”: 0 … 5 VDC

Input Voltage for Signal “1”: 15 … 28.8 VDC

Current Consumption from Backplane Bus: 65 Ma

Input Current for Signal “1”: 3 mA

Power Loss: 0.9 W

Number of Inputs: 8

Cable Length, Shielded: 1000 m

Cable Length, Unshielded: 600 m

Module State: green LED

Module Error Display: red LED

Operating Temperature: 0 … 60 °C

Dimensions: 12.9 X 58 X 62 mm

Weight: 0.06 kg
