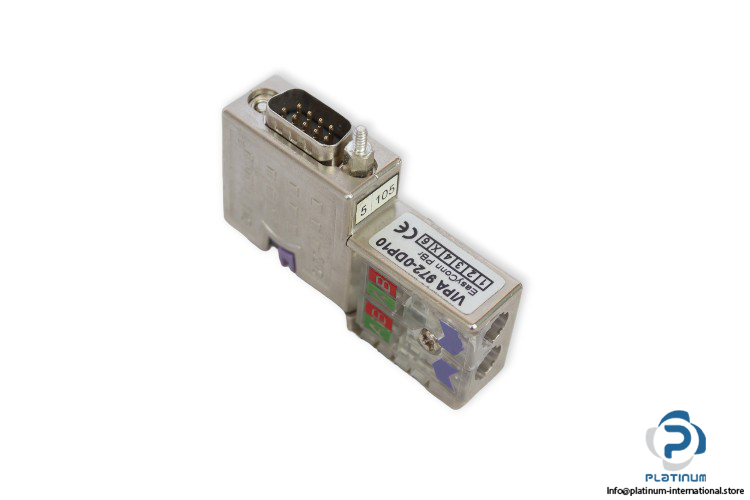

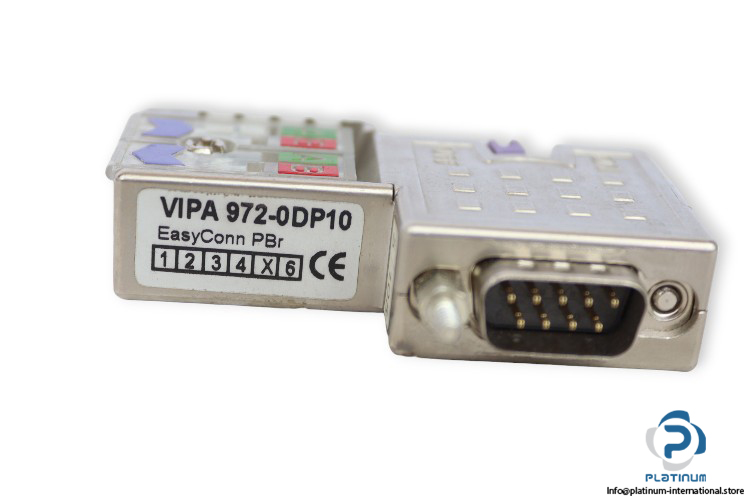

Vipa 972-0DP10 Profibus Connector

Manufacturer: VIPA
Type: Profibus Connector
Model: 972ODP1O

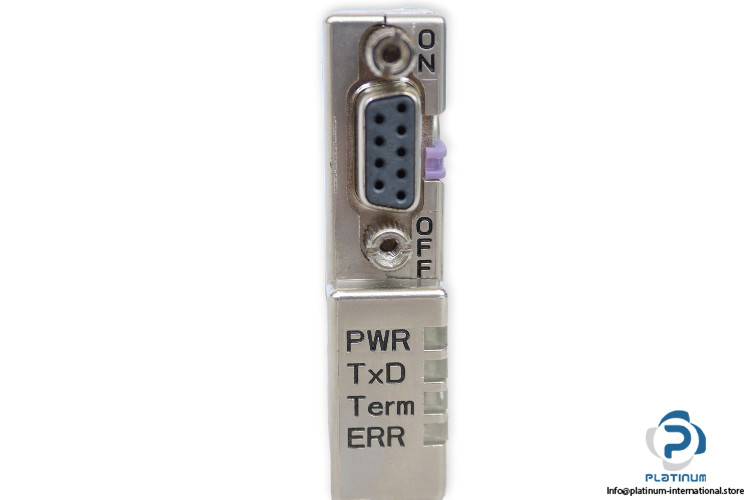

Description: an Integrated PG Port is Also Available to Allow Convenient Connection to a PC or Diagnostic Tool, the Connector has Switchable Terminating Resistors. A PD/Diagnosis Socket as well as a Controller with 4 LED Indicators are Additionally Integrated.
End Device Supply Voltage: 4.75 … 5.25 V DC
Current Consumption: 10 … 30 mA
Transfer Rate / with PROFIBUS DP: 12 Mbit/s
Outgoing Cable Orientation: 90°
Electrical Connection Type: 9-Pin D-Sub Male Connector
Material: Metal
Protection Class: IP20
Ambient Temperature: -25 … 75 °C
Dimensions: 66 x 40 x 15.8 mm
