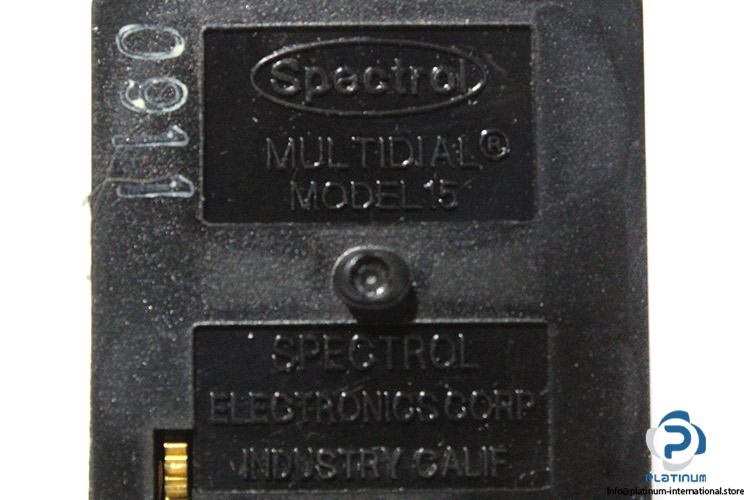

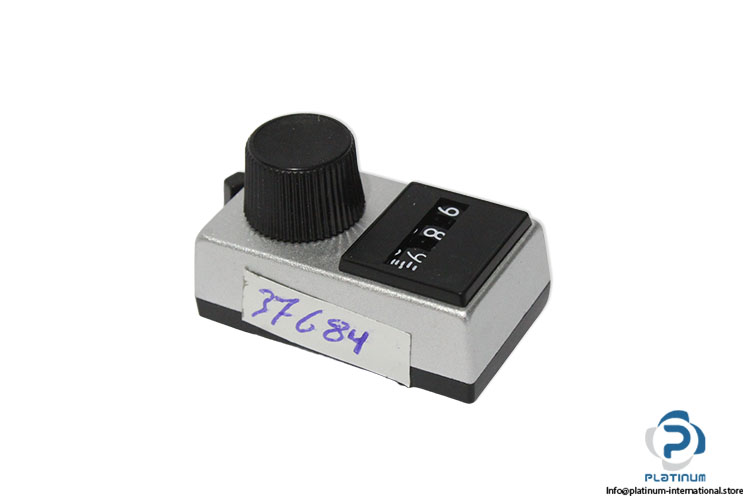

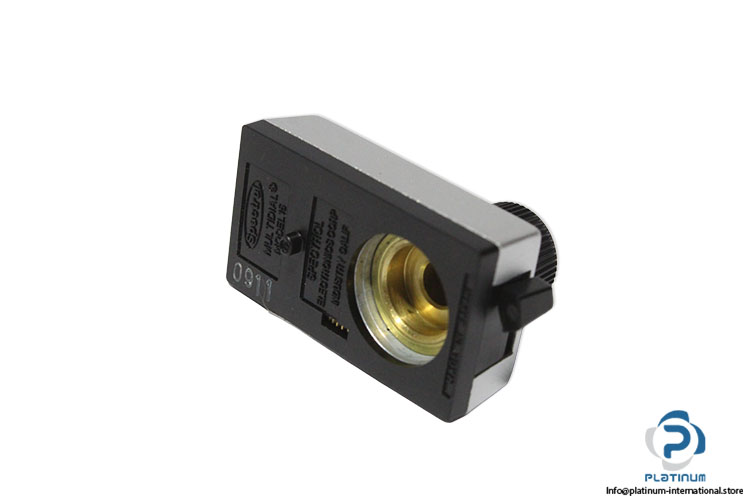

Vishay Spectrol Model 15 Rectangular Digital Scale
New
In stock1 unitReady to ship
The Vishay Spectrol Model 15 is a precision rectangular digital scale featuring 10-turn (3-digit) and 100-turn (4-digit) operation for accurate position indication. Designed for potentiometers and rotary controls, it offers clear numerical readings, multiple shaft adapter options, and reliable industrial performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Sensor type | DIALS |
| shaft adapter | 1/4 or 1/8 , or metric (6 mm) |
| Numerals | The numerals shall be white on a black background and 0.130" H (3.30 cm) |
| Mounting | The spring detented knob shall be removed using a straight pull, exposing two no. 4 to 40 hex socket set screws for mounting the dial directly to the component shaft |
| Operation 3 digit (10 turn) Left digit | Right two digits Complete revolutions of turning knob Percent of revolution The unit registers a total count of 999 |
| Operation 4 digit (100 turn) Left two digits | Right two digits Complete revolutions of turning knob Percent of revolution The unit registers a total count of 9999 |
| Rotation | The indication shall increase with clockwise rotation of the turning knob |
| Accuracy | Graduation lines adjacent to the numerals on the right digit wheel indicate settings 0.2 % of a revolution of the turning knob Phasing: Dial phased by rotating the exposed component shaft to correspond with the desired reading on the dial prior to tightening the set screws |
| Dimensions | 25.4 mm x 49.5 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093433 |
| Weight | 0,04 |
