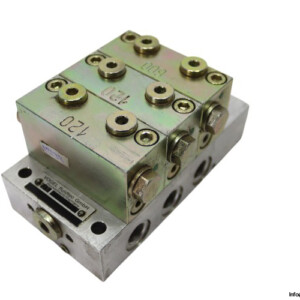

Vogel Fluidtec 01 PSG2-3-4 Modular Lubrication Feeder Valve
New
In stock1 unitReady to ship
Vogel Fluidtec 01PSG2-3-4 Lubrication Feeder Valve “ Precision metering device for centralized lubrication systems. Supports grease and oil with high dosing accuracy, 200 bar pressure, and wide temperature tolerance.
01PSG2-3-42200AluminumANDbarCentralizedDeviceDosingFeederFluidtecG1/4GreaseHighIndustriallubricationMeteringModularNlgioilPressureValveVogel
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

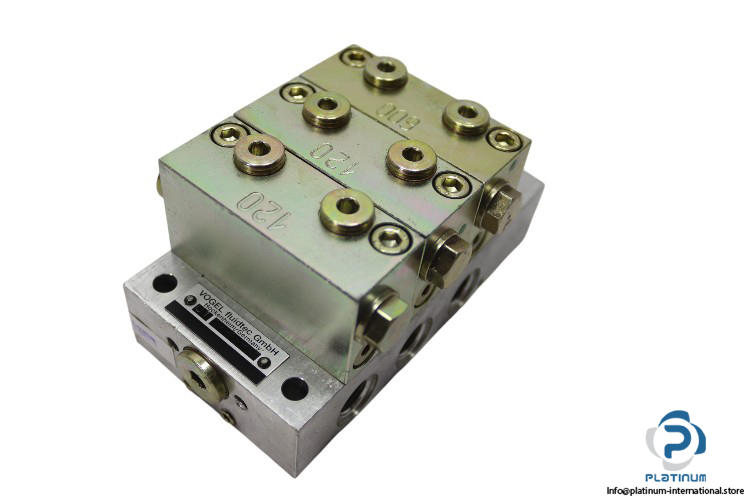

Vogel Fluidtec 01PSG2-3-4 Modular Lubrication Feeder Valve
The Vogel Fluidtec 01PSG2-3-4 is a high-performance modular lubrication feeder valve designed for precision metering of grease and oil in centralized lubrication systems. Engineered for heavy-duty industrial environments, it provides reliable and adjustable dosing under high pressure and temperature conditions.
Manufacturer: Vogel Fluidtec
Type: Modular Lubrication Feeder Valve / Modular Metering Device
Model: 01PSG2-3-4
| Fluid | Oils and Grease |
| Connection | G1/4, 5 mm |
| Material | Aluminum |
| Max. Inlet Volume Flow | 2.5 L/Min |
| Lubricant | Grease up to NLGI 2, oil with viscosity ‰¥ 12 mm²/s |
| Max. Operative Pressure | 200 bar |
| Dosing Quantity | 0.06 to 0.84 cm³ per cycle and outlet |
| Operating Temperature | -15 to 110 °C |
