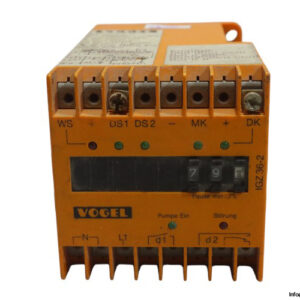

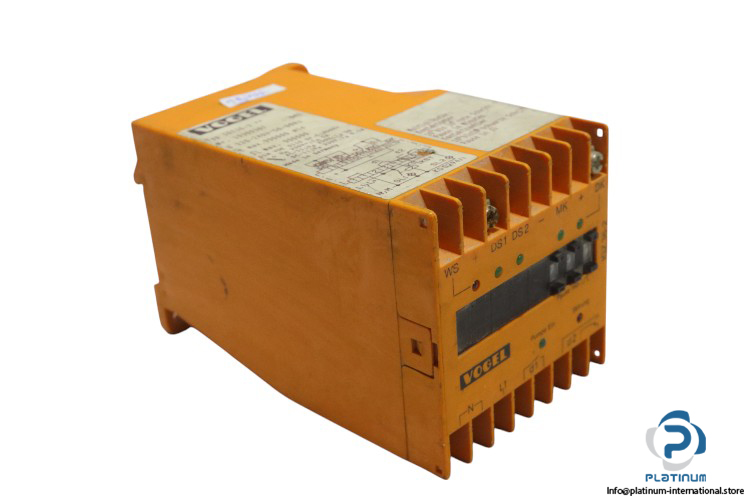

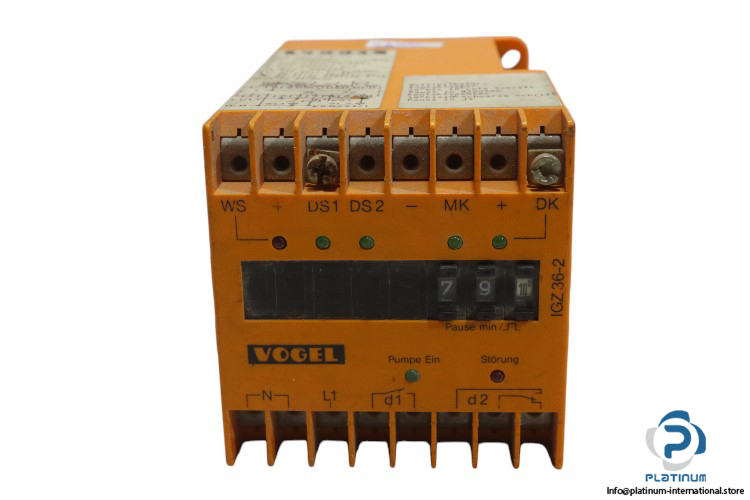

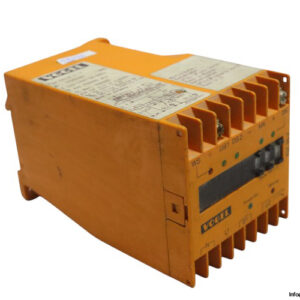

VOGEL IGZ36-2 Lubrication Pulse Relay
The VOGEL IGZ362 Lubrication Pulse Relay is a high-performance device designed for efficient lubrication systems. Featuring a compact design and a wide operating voltage range, it provides reliable control for industrial applications.
Manufacturer: VOGEL
Type: Lubrication Pulse Relay
Model: IGZ 36-2

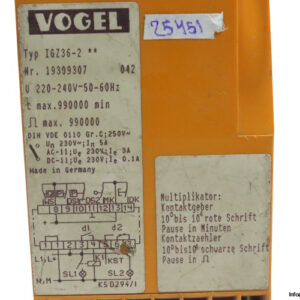

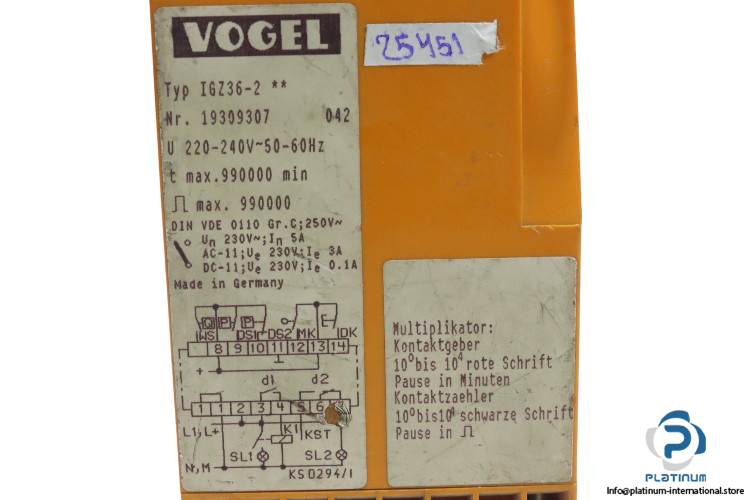

Part No.: 19309307 042
| Operating Voltage | 220 / 240 V AC |
| Operating Current | 70 mA |
| Frequency | 50 / 60 Hz |
| Pause Time Max. | 990000 min |
| Contact | 1 Normally Open (NO) + 1 Changeover (CO) |
| Contact Ratings | 250 V AC / 230 V DC, 5 / 3 / 0.1 A |
| Protection Class | IP30 |
| Ambient Temperature | 0 / 60 °C |
| Dimensions | 75 x 70 x 110 mm |
