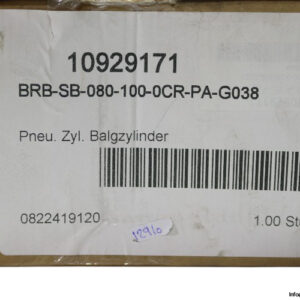

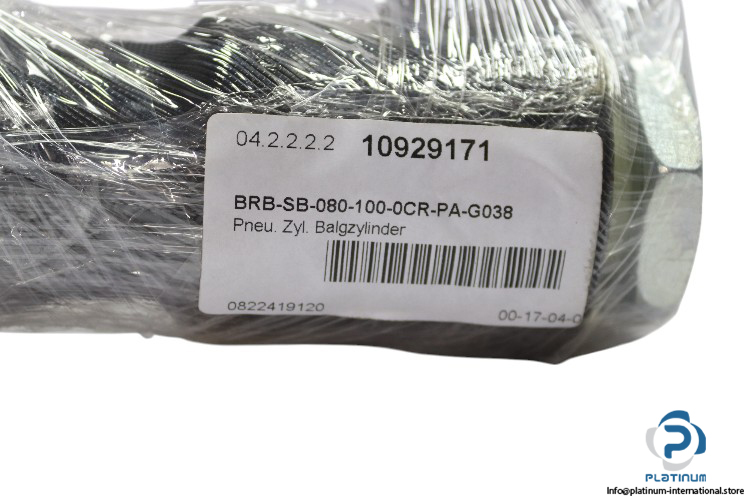

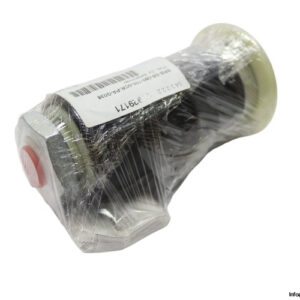

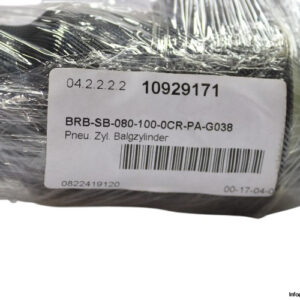

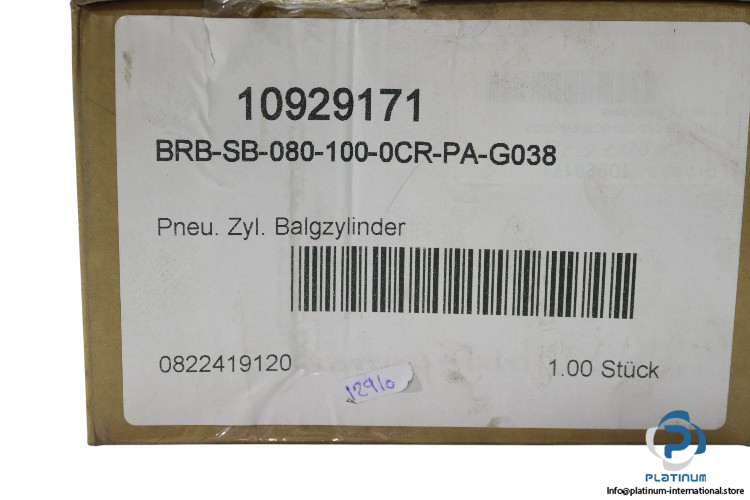

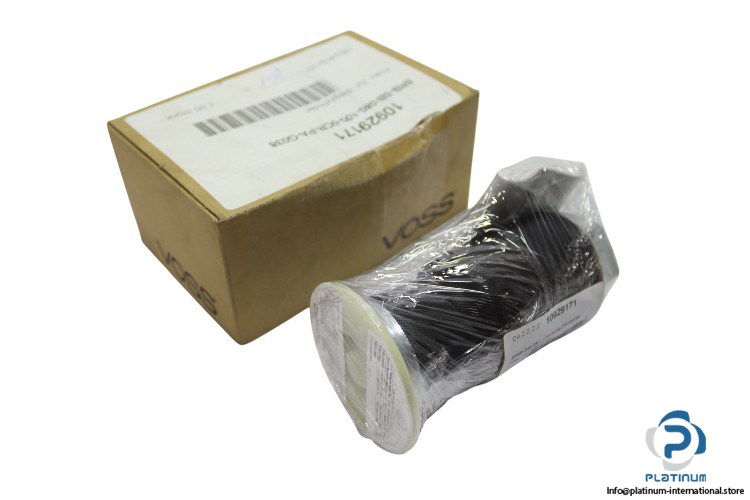

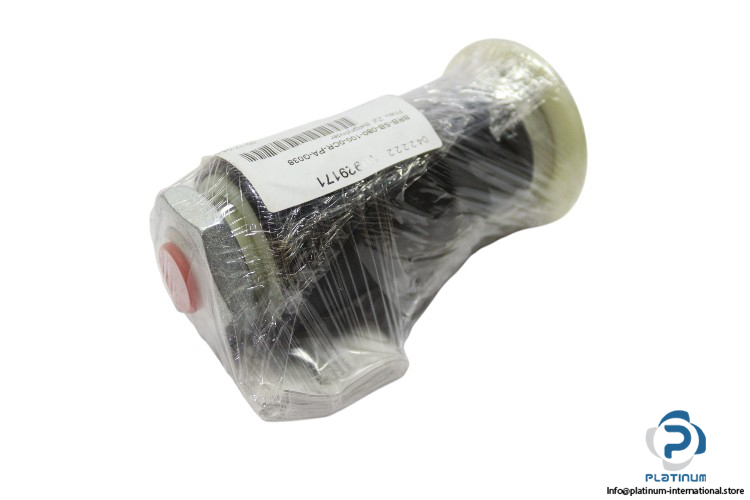

Voss 0822419120 Bellow Actuator
New
In stock1 unitReady to ship
Bellow Actuator
The VOSS BRB-SB-080-100-0CR-PA-G038 bellow actuator is a single-acting, flexible rolling bellow with a maximum stroke of 100 mm and a working pressure range from 0.9 to 8 bar. Built with chloroprene rubber and polyamide fiber-glass reinforced front cover for durable performance in demanding environments.ActuatorAirBellowBRB-SB-080-100-0CR-PA-G038ChloropreneCompressedFlexibleIndustrialrollingRubberSingle-ActingVoss
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
VOSS BRB-SB-080-100-0CR-PA-G038 “ Bellow Actuator / Flexible Rolling Bellow
The VOSS BRB-SB-080-100-0CR-PA-G038 bellow actuator offers reliable, single-acting performance with compressed air for applications requiring high flexibility and movement. Designed with durable materials like chloroprene rubber and polyamide fiber-glass reinforced front covers, this actuator is built to handle demanding environments.
Manufacturer: VOSS
Type: Bellow Actuator / Flexible Rolling Bellow
Model: BRB-SB-080-100-0CR-PA-G038
Part No: 10929171
MNR: 0822419120
| Functional Principle | Single-acting, retracted without pressure |
| Compressed Air Connection | G 3/8 |
| Cover Diameter | 76.5 mm |
| Permissible Angle of Tilt Max | 15 degrees |
| Max. Effective Stroke | 100 mm |
| Min. Radial Installation Space | 100 mm |
| Force Min | 1700 N |
| Force Max | 1710 N |
| Working Pressure Min | 0.9 bar |
| Working Pressure Max | 8 bar |
| Min. Ambient Temperature | -30 °C |
| Max. Ambient Temperature | 90 °C |
| Medium | Compressed air |
| Reduced Service Life at Temperature Greater Than | 70 °C |
| Pressure for Determining Forces | 6 bar |
| Material Bellow | Chloroprene rubber |
| Material Front Cover | Polyamide fiber-glass reinforced |
| Material Clamping Ring | Steel |
