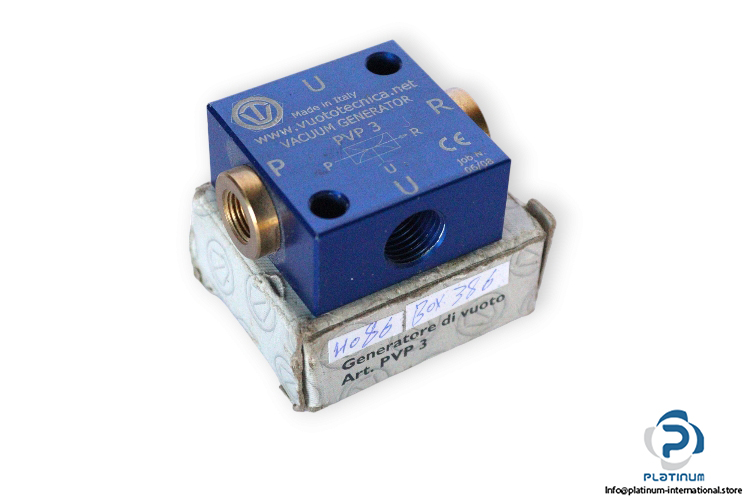

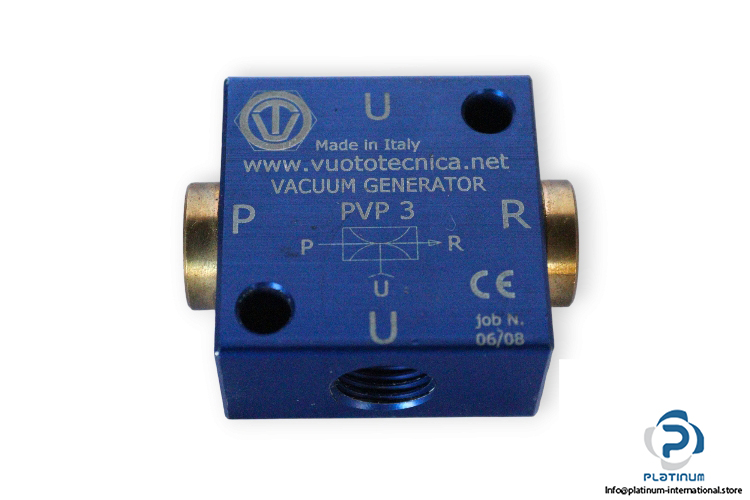

Vuototecnica PVP 3 Vacuum Generator

Manufacturer: VUOTOTECNICA
Type: Vacuum Generator
Art No: PVP3

At 4 Bar
Intake Air Flow Rate: 3.4 m³/h
Maximum Level of Vacuum: -60 Kpa
Final Pressure: 400 mbar abs.
Air Consumption: 1.0 Nl/s

At 5 Bar
Intake Air Flow Rate: 3.5 m³/h
Maximum Level of Vacuum: -70 Kpa
Final Pressure: 300 mbar abs.
Air Consumption: 1.1 Nl/s

At 6 Bar
Intake Air Flow Rate: 3.7 m³/h
Maximum Level of Vacuum: -85 Kpa
Final Pressure: 150 mbar abs.
Air Consumption: 1.3 Nl/s

Noise Level at Optimal Supply Pressure: 80 dB(A)
Operating Temperature: -20…80 °C
Pneumatic Connection: G¼”
Material: Aluminum
