VW3M5102R300 Power Cable
New
In stock1 unitReady to ship
Power Cable
Industrial power cable VW3M5102R300 with M23 connector, 1000 V rating, and VDE certification for connection between servo motor and servo drive.796ÖLflex®AutomationCableCertifiedConnectorCPDriveFDIndustrialKabelLappLexiumM23motorPowerSchneiderServoStuttgartVDE
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

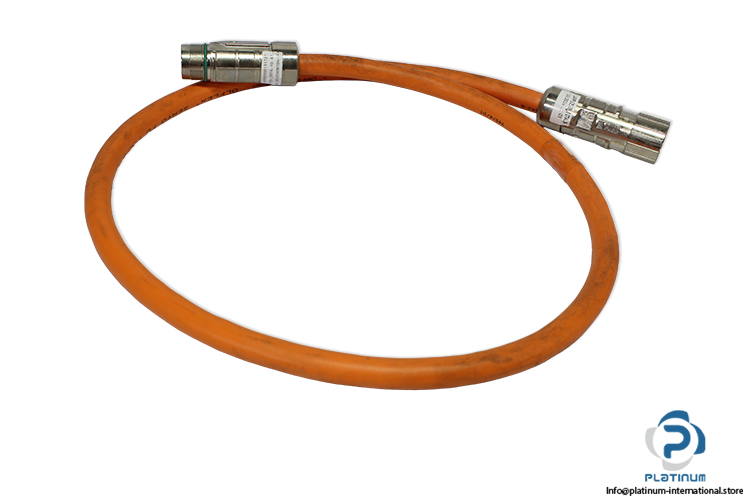

Power Cable VW3M5102R300
The VW3M5102R300 is a high-quality power cable designed for reliable electrical connection between servo motors and servo drives. It is engineered to meet industrial standards, offering secure connectivity, high voltage resistance, and dependable performance in demanding automation environments.
Type: Power Cable

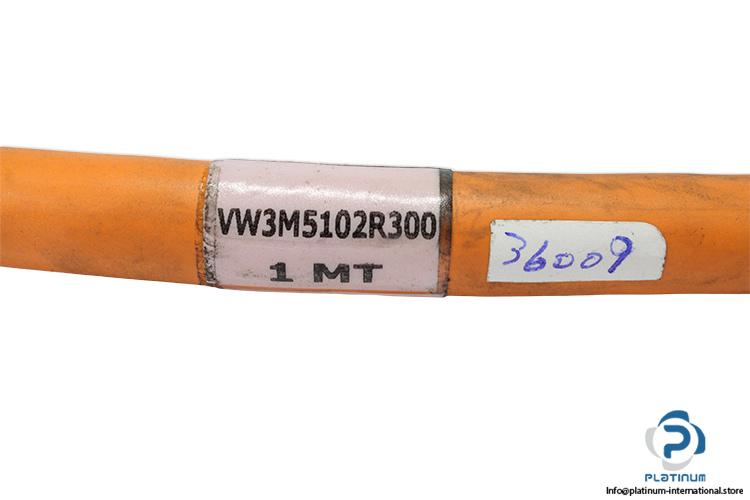

Model: VW3M5102R300
Code: 0027960 / 68886005
Compatibility
Cable Composition
Electrical Connection
| Cable Length | 1 m |

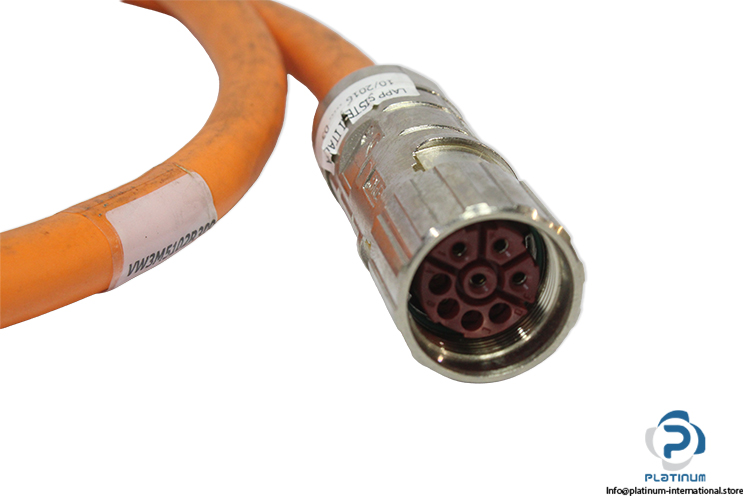

| Connector 1 | 8 Pins, Female |

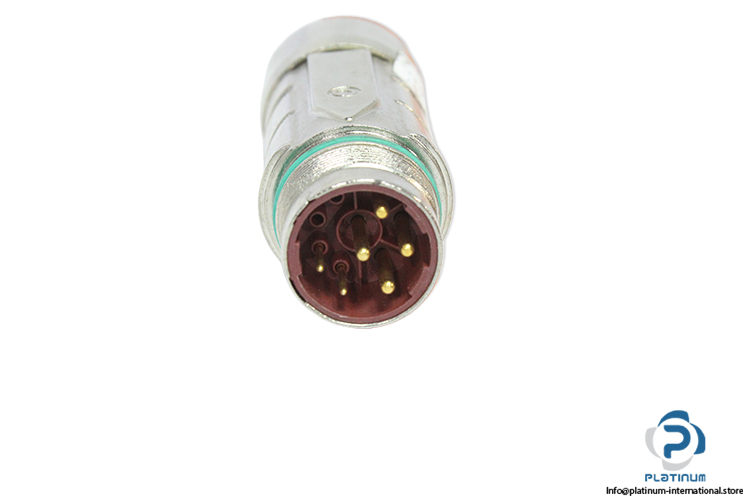

| Connector 2 | 6 Pins, Male |
| Thread Size | M23 |

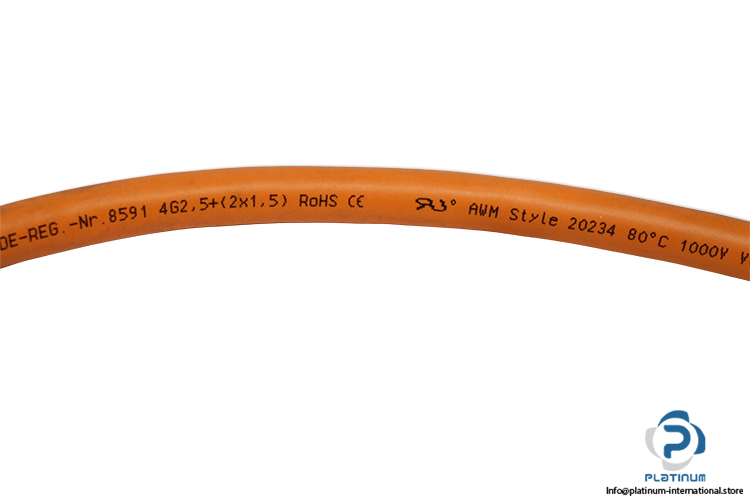

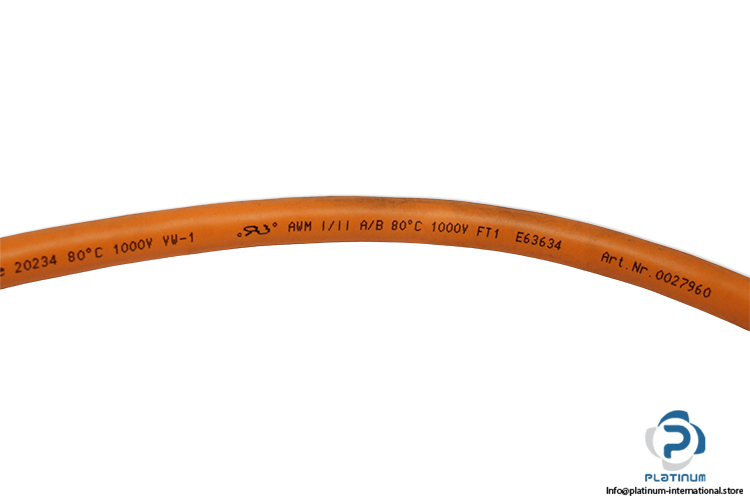

| Cable Information | 1000 V, 80°C, VW-1 / FT1 |
| AWM Style | 20234 |
| Certification | VDE Registered |
| Servo Motor Compatibility | BMH, BSH |
| Range Compatibility | Lexium 32, Lexium 05 |
| Application | Between servo motor and servo drive |
| Conductors | 4 x 2.5 mm² + 2 x 1 mm² |
| Servo Motor Side | Industrial M23 Connector |
| Servo Drive Side | Free End |
