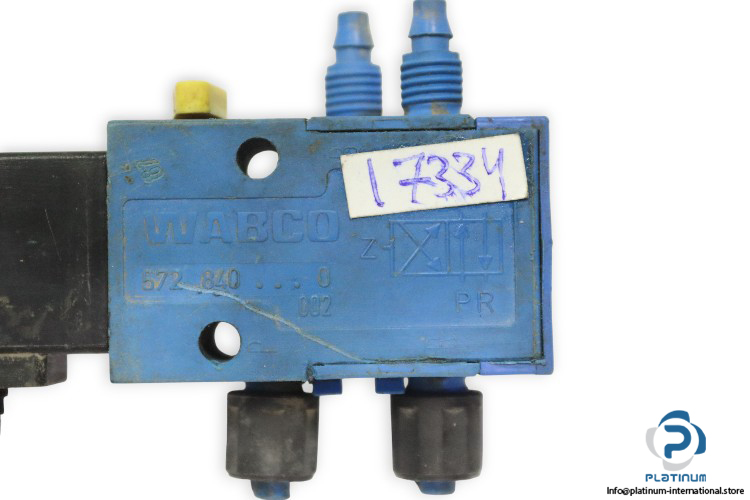

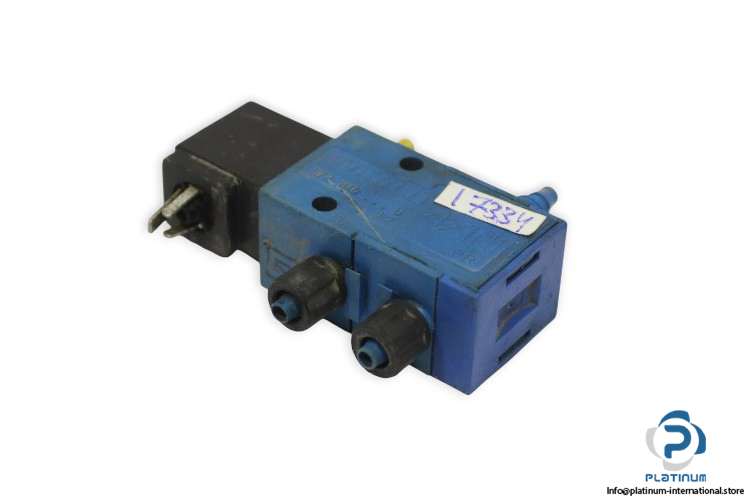

Wabco 572 840…0 Single Solenoid Valve
Single Solenoid Valve
WABCO 840 series 4/2 single solenoid valve for pneumatic air control with diaphragm poppet design and IP65 protection.WABCO 840 Series Single Solenoid Valve
A high-quality single solenoid valve from WABCO, engineered for reliable pneumatic control in industrial and commercial air systems. Featuring a diaphragm poppet design with soft sealing, this valve ensures precise switching, low leakage, and stable performance under varying pressure and temperature conditions. Manufacturer: WABCO
Type: Single Solenoid Valve
Series: 840
MNR: 572 840 ... 0 / 002
Recommendation:
This WABCO solenoid valve is ideal for pneumatic automation systems requiring reliable air control and compact manifold mounting. For optimal system performance and extended service life, it is recommended to combine this valve with high-quality Air Filters, compatible Sensors, and other Pneumatic Components available from Platinum International to ensure clean air supply, accurate control, and dependable operation.
| Fluid | Air |
| Type of Actuation | Electrically |
| Function | 4/2 |
| Connection 1 | G 1/4 |
| Connection 2 | Sub-Based |
| Version | Diaphragm Poppet Valve |
| Pilot | Internal |
| Sealing Principle | Soft Sealing |
| Mounting on Manifold Strip | PRS Strip |
| Working Pressure Min./Max. | 1.5 bar / 10 bar |
| Control Pressure Min./Max. | 1.5 bar / 10 bar |
| Ambient Temperature Min./Max. | -15 °C / +50 °C |
| Medium Temperature Min./Max. | -15 °C / +50 °C |
| Max. Particle Size | 50 µm |
| Oil Content of Compressed Air | 0“1 mg/m³ |
| Degree of Protection | IP65 |
| Materials Housing | Polyoxymethylene |
| Seals | Acrylonitrile Butadiene Rubber |

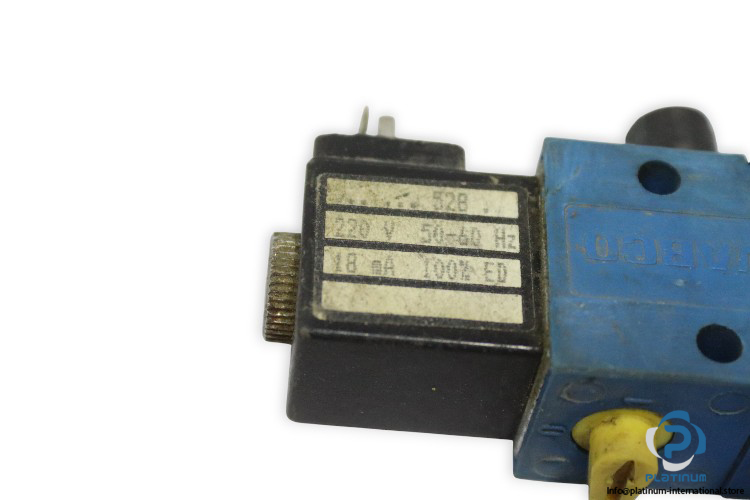

| Attachment Solenoid Coil Type | 528 Solenoid Coil |
| Coil Manufacturer | WABCO |
| Coil MNR | 528 |
| Voltage | 220 V AC, 50“60 Hz |
| Duty Cycle | 100% ED |
| Current | 18 mA |
