Wago 2006-1671/1000-0848 Terminal Block
Used
In stock1 unitReady to ship
Terminal Block
WAGO TOPJOB S terminal block with Push-in CAGE CLAMP® connection technology, 4 connection points, and integrated 24 V AC/DC operation status indicator for industrial electrical installations.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

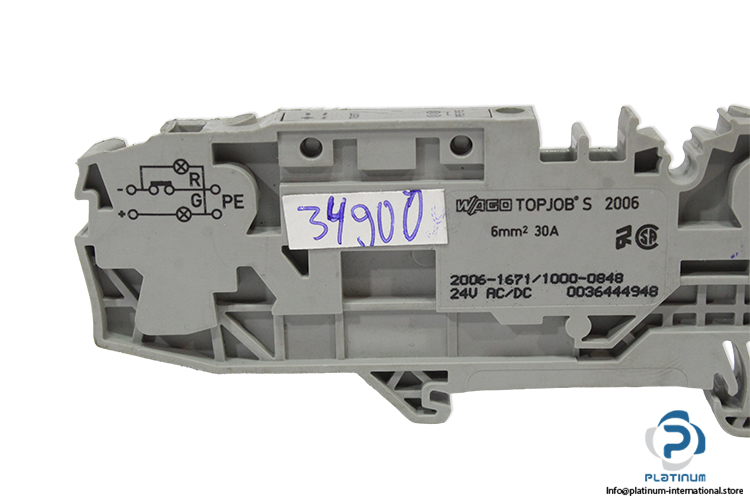

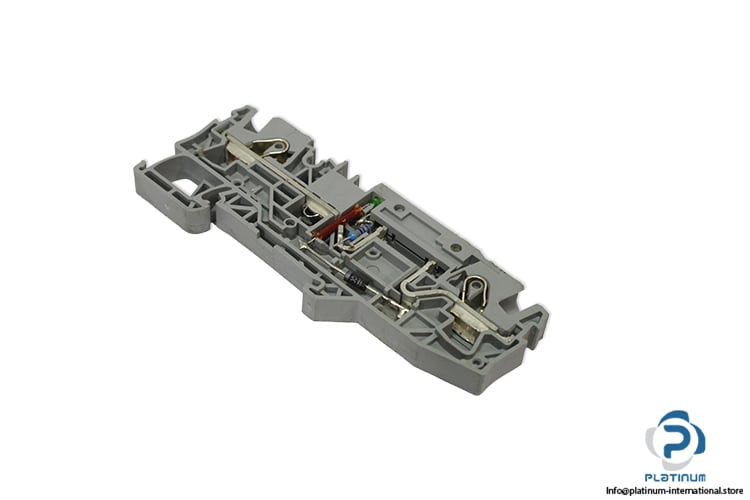

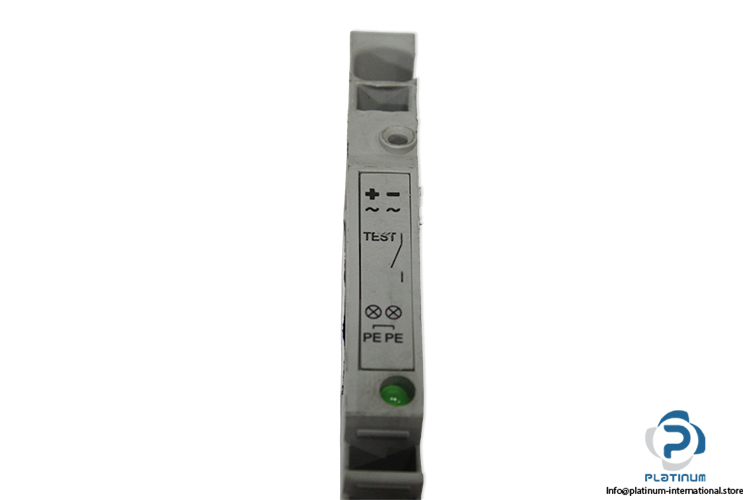

WAGO 2006-1671/1000-0848 Terminal Block
The WAGO 2006-1671/1000-0848 terminal block from the TOPJOB S series is designed for reliable electrical connections in industrial control and distribution systems. It features Push-in CAGE CLAMP® connection technology and an integrated operation status indicator for 24 V AC/DC systems.
Manufacturer: WAGO
Type: Terminal Block
Item No.: 2006-1671/1000-0848
Part No.: 0036444984
| Product Group | TOPJOB S |
| Operation Status Indicator | 24 V AC/DC |
| Power Loss, Per Pole (Potential) | 0.702 W |
| Rated Current IN For Specified Power Loss | 30 A |
| Resistance Value For Specified Current-Dependent Power Loss | 0.00078 OHM |
| Connection Points | 4 |
| Total Number Of Potentials | 2 |
| Number Of Levels | 1 |
| Number Of Jumper Slots | 2 |
| Connection Technology | Push-in CAGE CLAMP® |
| Actuation Type | Operating Tool |
| Connectable Conductor Materials | Copper |
| Width | 15 mm / 0.591 inches |
| Height | 96.3 mm / 3.791 inches |
| Depth From Upper Edge Of DIN-Rail | 36.8 mm / 1.449 inches |
| Insulation Material | Polyamide (PA66) |
| Continuous Operating Temperature | -60 / +105 °C |
