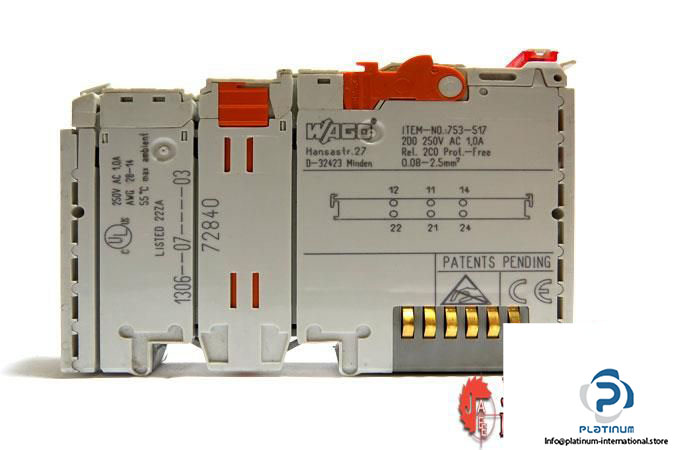

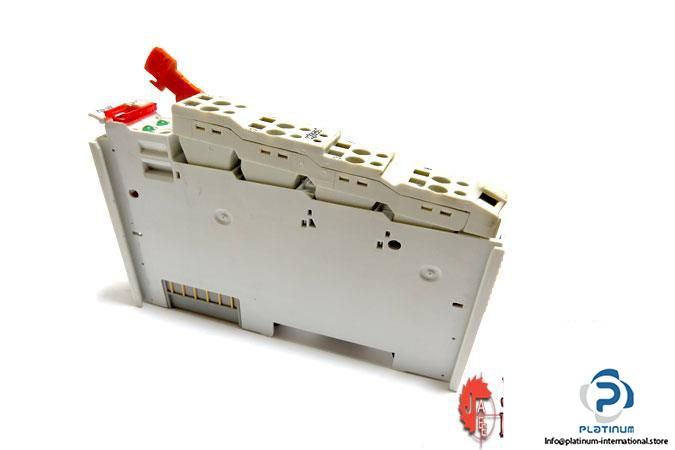

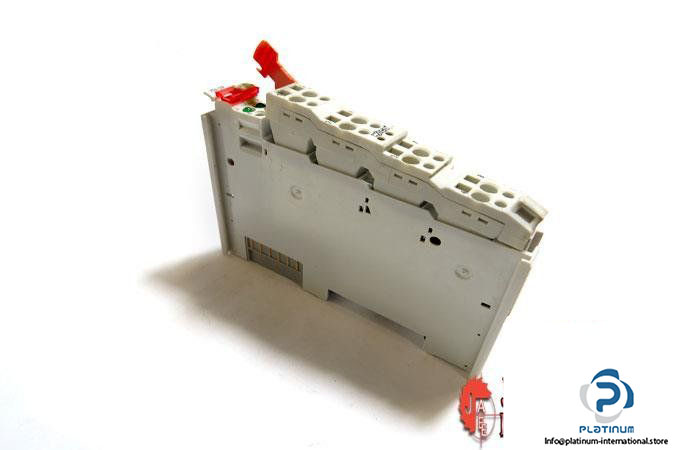

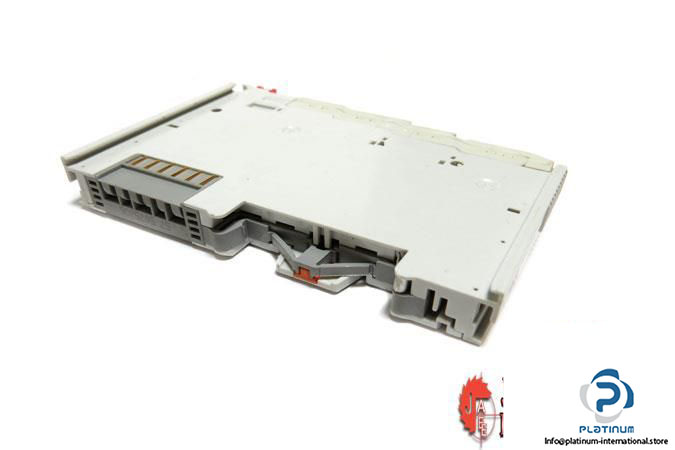

Wago 753-517 2-CHANNEL Digital Output

Manufacturer: WAGO

Type: 2-Channel Digital Output

Model: 753-517

Number of digital outputs:  2

System supply voltage: DC 5 V; via data contacts

Current consumption, system supply (5 V): 90mA

Actuator connection: 2 x(1-Conductor)

Output switching design:  2 changeover contacts relay

Switching frequency: max. 0.1Hz

Output characteristic: potential-free

Switching voltage: 12V…AC 250 V, DC 300 V

Isolation Field-system: 1500 VAC(1min)

Weight: 52 g

Operating temp: 0…55°C

Protection: IP20

Condition: Used
