Waircom 32/200CPUI/M Pneumatic Cylinder
Used
In stock1 unitReady to ship
Pneumatic Cylinder
The Waircom 32/200CPUI/M ISO standard pneumatic cylinder offers robust performance with a 32 mm bore, 200 mm stroke, double-acting function, and durable aluminium-steel construction.2003232/200CPUI/MAluminiumAutomationboreconnectionCylinderdouble-actingG1/8IndustrialISOmmPneumaticStandardStrokeWaircom
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

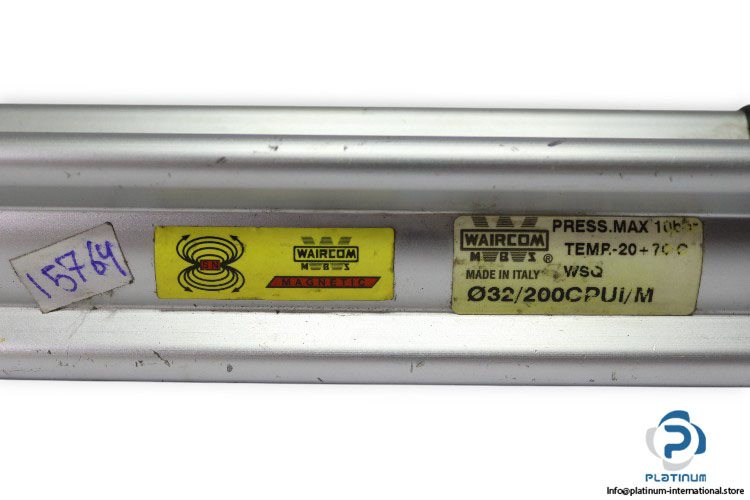

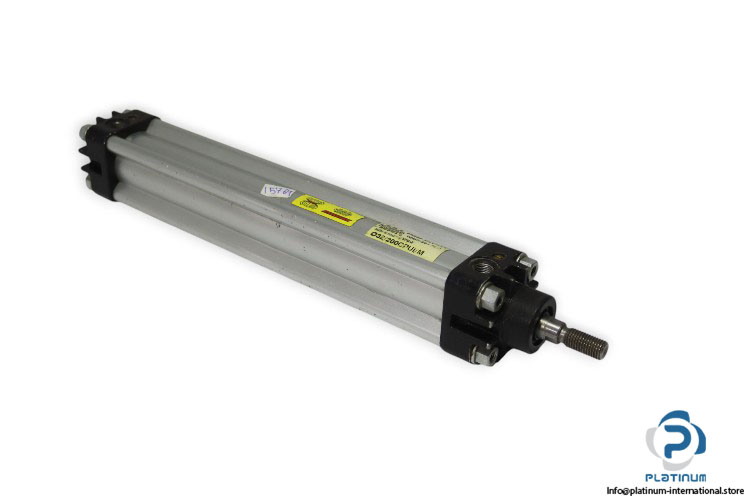

Waircom 32/200CPUI/M ISO Standard Pneumatic Cylinder
The Waircom 32/200CPUI/M is an ISO standard pneumatic cylinder engineered for high durability and reliable operation in industrial automation systems. Built with an aluminum profile body, tie rods, and a steel piston rod, it offers strong performance, easy installation, and long service life under demanding conditions.
Manufacturer: Waircom
Type: ISO Standard Pneumatic Cylinder
Model: 32/200CPUI/M
Materials:
| Bore Diameter | 32 mm |
| Stroke Length | 200 mm |
| Fluid | Filtered, unlubricated, continuous lubricated/dry compressed air |
| Function | Double-acting |
| Max. Pressure | 10 bar |
| Operating Temperature Range | -20 °C to +70 °C |
| Construction | Aluminium profile body with tie rods, steel piston rod |
| Mounting | Standard ISO mounting with threaded rod end |
| Connection | G1/8 |
| End Caps | Anodized aluminium alloy |
| Cylinder Barrel | Extruded tube, anodized aluminium alloy |
| Tie Rods & Nuts | Steel, stainless steel upon request |
| Piston Rod | C45 chromium-plated steel, AISI 303 rolled stainless steel |
| Piston Rod Bearing | Bronze-iron 20%, sintered, self-lubricating |
| Decelerators Ogives | Aluminium alloy |
| Piston | NBR rubber block, with or without magnet |
| FKM (Viton®) | Supplied only with non-magnetic piston |
| Seals | NBR rubber, FKM (Viton®) |
| Spring | Springs steel |
