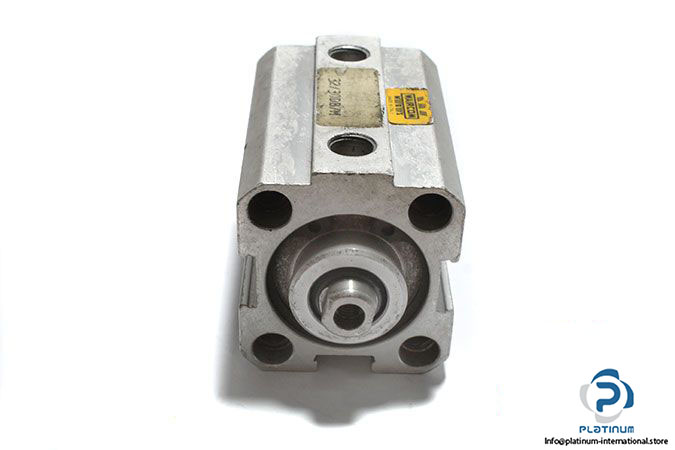

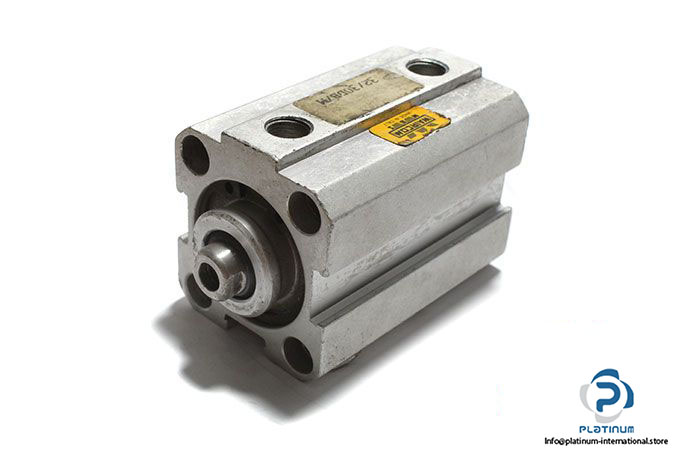

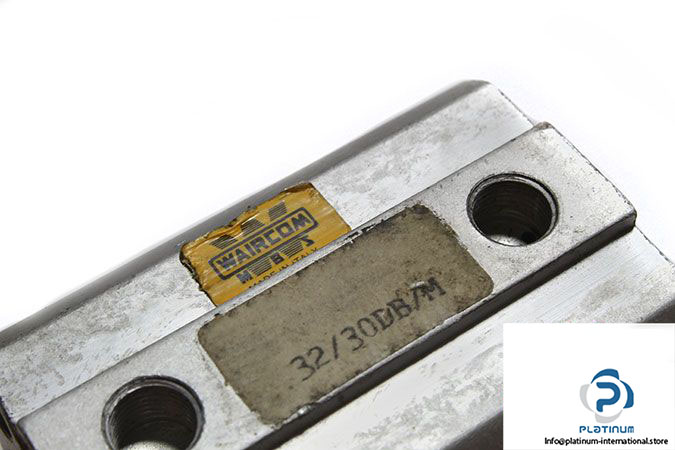

Waircom 32/30DB/M Compact Cylinder

Manufacturer: WAIRCOM

Type: Double Acting Compact Cylinder

Model: 32/30-DB/M

Materials

  Cylinder barrel: AISI 304 stainless steel

  End caps: Anodized aluminium alloy

  Piston rod: AISI 303 rolled stainless steel

Version: Double unit

Sliding Type: on Bushings with Sleeves

Stroke Length: 30 mm

Piston Diameter: 32 mm

Pneumatic Connection: G1/8

Piston Type: Magnetic

Max. Pressure: 10 bar

Mode of operation: Double Acting

Temperature: 20 … 80 °C

Weight: 0.31 kg
