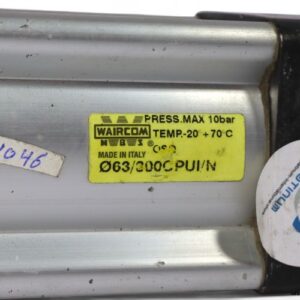

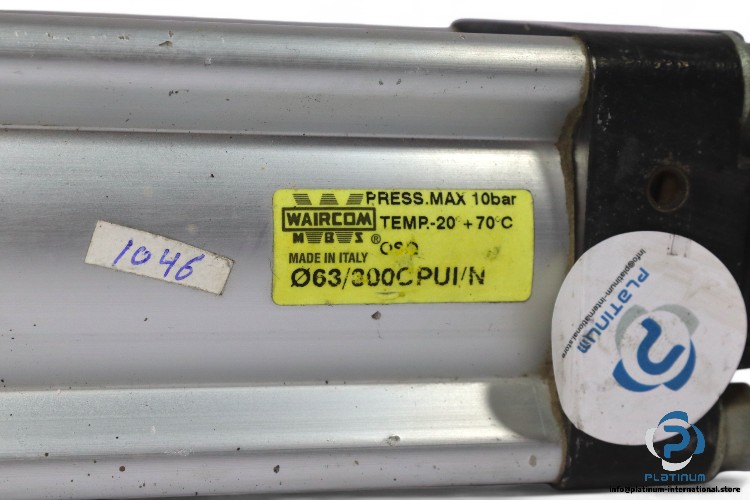

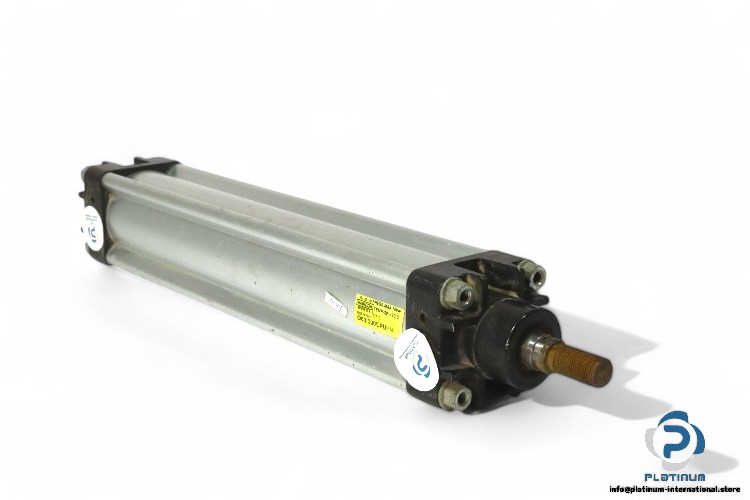

Waircom 63/300 Cpui/N ISO Cylinder

WAIRCOM ISO Cylinder 63/300 CPUI/N

The WAIRCOM ISO Cylinder 63/300 CPUI/N is designed for reliable performance in pneumatic systems. With a compact square shape and high-pressure capacity, it offers robust functionality for industrial applications requiring compressed air. The cylinder features a bore diameter of 63 mm and a stroke of 300 mm, ideal for demanding operations.

Manufacturer: WAIRCOM

Type: ISO Cylinder

Model: 63/300 CPUI/N

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 300 mm
• Bore x Stroke: 63 x 300 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 75 x 450 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
