Walvoil PM1502280 Counterbalance Valve
Used
In stock1 unitReady to ship
Counterbalance Valve
Single-acting, load-sensitive Walvoil counterbalance valve designed for controlled load holding and safe hydraulic system operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

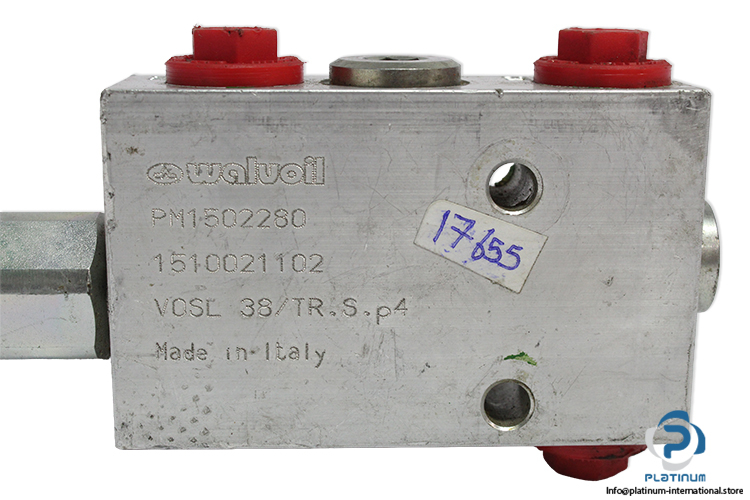

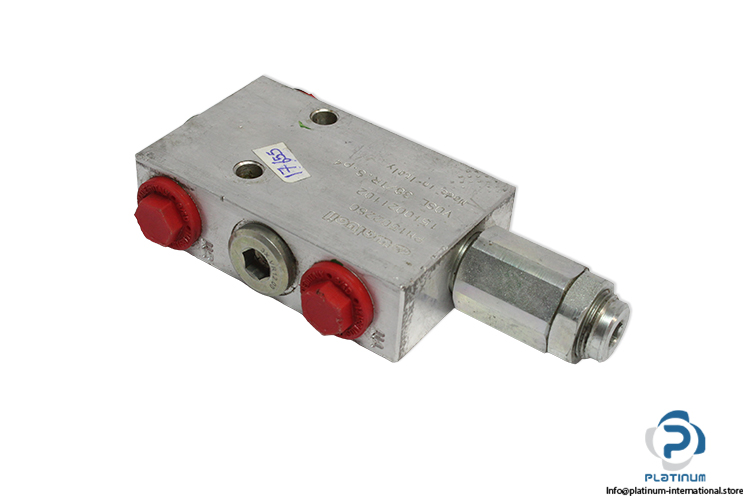

Walvoil PM1502280 Counterbalance Valve
The Walvoil PM1502280 counterbalance valve is designed for safe and controlled load handling in hydraulic systems. This load-sensitive, single-acting valve ensures stable operation, prevents uncontrolled movement, and provides reliable performance in industrial hydraulic applications.
Manufacturer: Walvoil
Type: Counterbalance Valve
Model: PM1502280
Code: 1510021102
MNR: VOSL 38 / TR.S.p4
| Operating Type | Single Acting |
| Load Control | Load Sensitive |
| Fluid | Mineral Based Oil |
| Nominal Flow | 35 l/min |
| Maximum Pressure (Aluminium Body) | 210 bar (3050 psi) |
| Viscosity Range | 10 to 200 cSt |
| Maximum Contamination Level | 18/16/13 ISO 4406 |
| Fluid Temperature (NBR Seals) | -20 °C to 80 °C |
| Oil Leakage | 0.25 cm³/min “ 0.015 in³/min (5 drops) at 210 bar |
| Fluid Temperature | -20 °C to 80 °C |
| Connection | G 3/8 |
