Warner Electric 1605ZG Cylindrical Ball NUT

Manufacturer: WARNER ELECTRIC THOMSON

Type: CYLINDRICAL BALL NUT

Model: 1605 ZG

Part No.: KGM-G-1605-RH-KK

Nut Part No.: 7832778

Nut Style: ZG



Material: Steel

ZG type: cylindrical single with external threads

Style: Cylindrical

Ball Nut Size: 16 x 5

Nut Length: 57.5 mm

Nominal Diameter: 16 mm

Load: 5 mm

Nut shape: Round

Ball Nut Form: Threaded

Thread Direction: Right Hand

Return Style: Button

Preload: PL

Available Preload Types: Z1, Z2, Z3

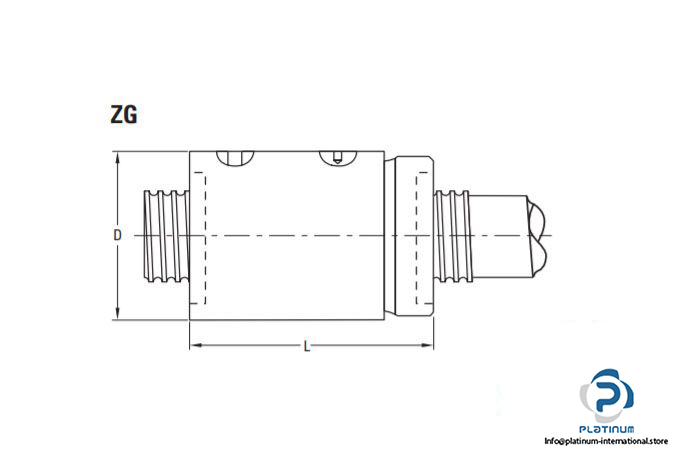

Dimensions

Length ( L ): 57.5 mm

Diameter ( D ): 32 mm

Max. Axial Backlash: 0.09 mm

Dynamic Load Capacity: 12.1 kN

Static Load Capacity: 14.5 kN

Weight: 0.20 kg
