Weidmueller SAIL-M12BG-5-5.0U Sensor/Actuator Cable
New
In stock2 unitsReady to ship
22,22$

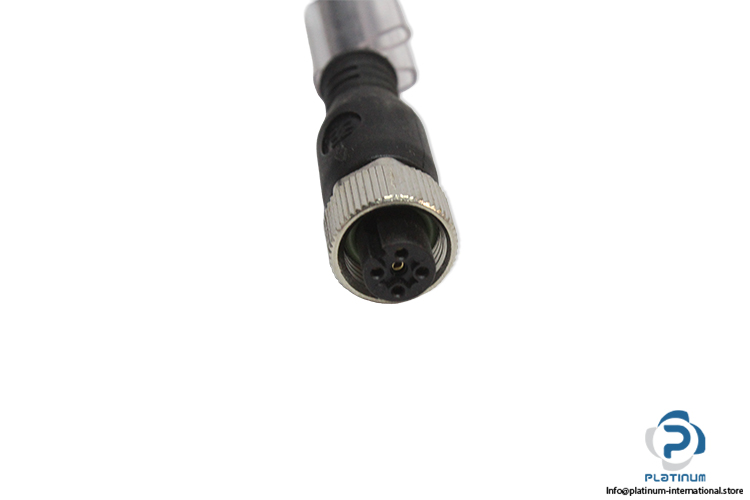

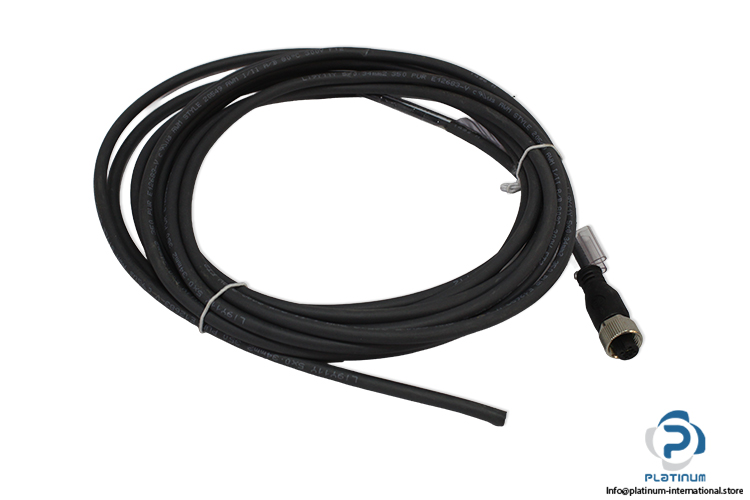

Sensor/Actuator Cable Weidmüller 5 m sensor/actuator cable with A-coded M12 connection, designed for reliable connectivity in industrial automation and sensor applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

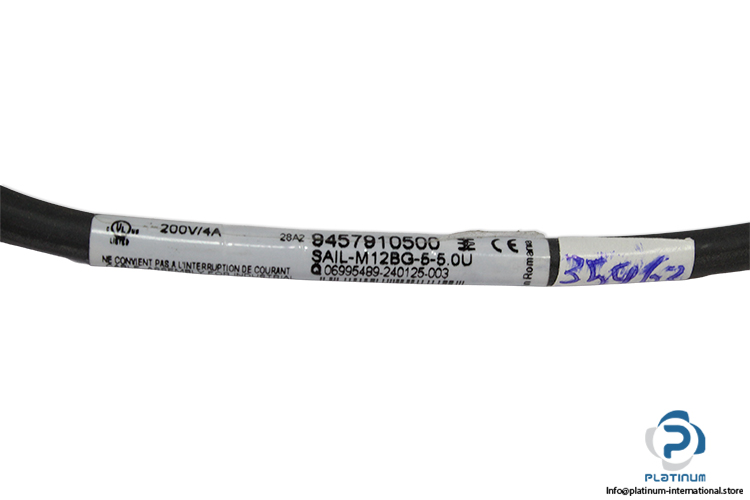

| Part No. | SAIL-M12BG-5-5.0U |
| Art No | 9457910500 |

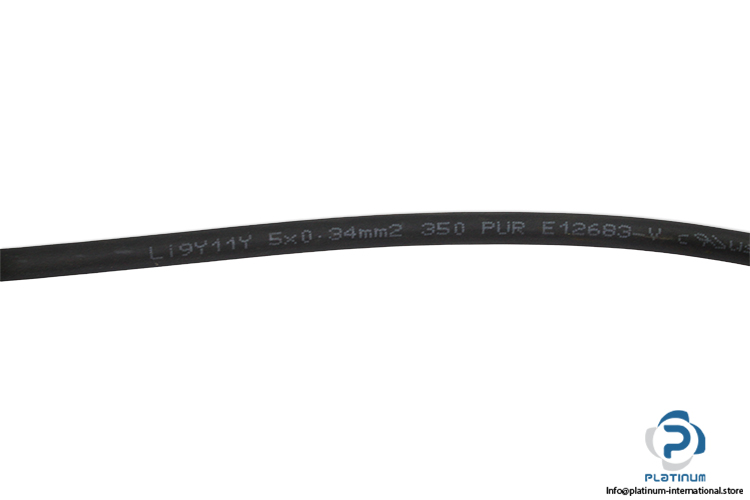

| Code | LI9Y11Y |
| Cable length | 5 M |
| connector 1 | 5-pins |FeMale |
| connector 2 | 5-wires / male |

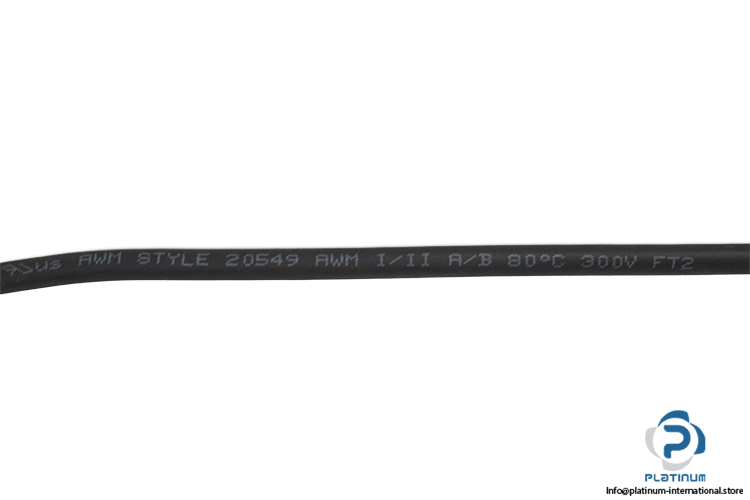

| Wire according to UL AWM style | 10493 (80 °C / 300 V) |
| Vein cross-section | 0.34 mm² |
| Number of veins | 5 |
| Outer diameter | 4.7 mm ± 0.15 mm |
| Acceleration | 5 m/s² |
| Minimum bending radius, moving | 10 x cable diameter |
| Minimum bending radius, permanently installed | 5 x cable diameter |
| Flame retardancy | In accordance with UL1581 UL / CUL FT2 |
| Speed | 3.33 m/s |
| temperature range, moves | -25...80 °C |
| Connection thread | M12 |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Execution | socket |
| Coding | A-coded |
| Contact material | copper alloy |
| Threaded ring material | Zinc die-casting |
| Nominal voltage | 60 V |
| Rated current | 4 A |
| wrench size | 12 mm |
| Protection class | IP65,IP66,IP67,IP68 |
| Connector standard | IEC 61076-2-101 |
| Certificate No. (cULus) | E307231 |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100749 |
| Weight | 0,2 |
