Weidmuller UR20-4DI-4DO-PN-FSPS-V2 U-Remote
New
In stock1 unitReady to ship
U-Remote
The WEIDMULLER UR20-4DI-4DO-PN-FSPS-V2 U-Remote offers 24V DC power supply, 4 digital outputs, and a configurable input filter for precise control in industrial automation systems.24vAutomationComponentsConfigurableconnectiondcDigitalfilterI/OinIndustrialInputModuleOutputPushRemoteSystemUR20Weidmuller
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

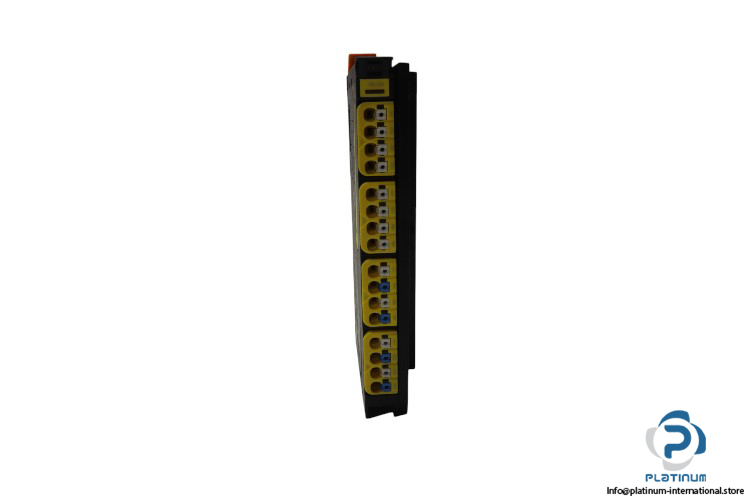

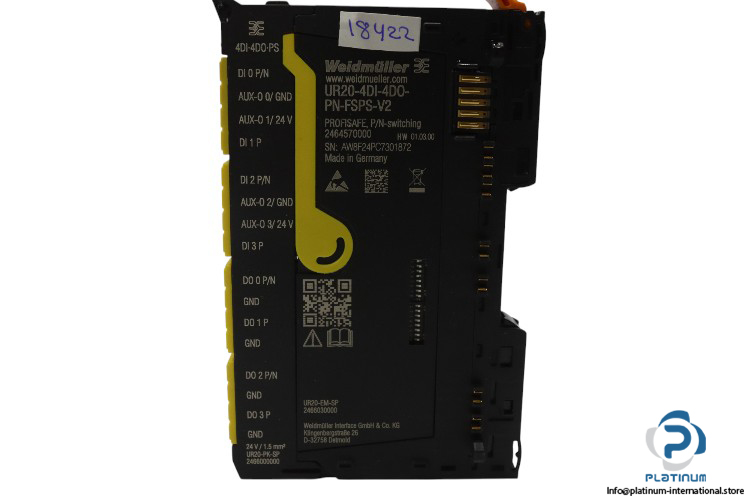

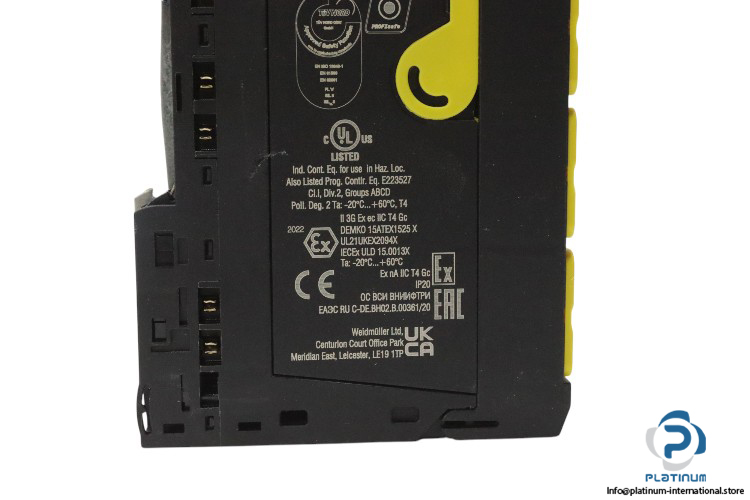

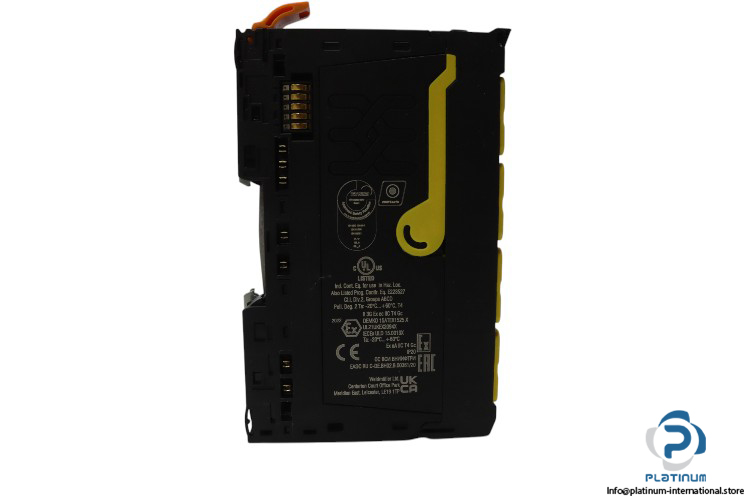

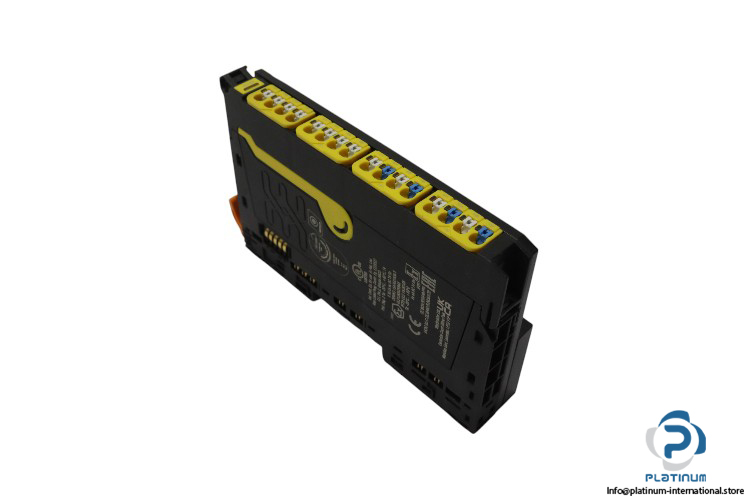

WEIDMULLER UR20-4DI-4DO-PN-FSPS-V2 U-Remote
The WEIDMULLER UR20-4DI-4DO-PN-FSPS-V2 is an advanced U-Remote I/O system designed for industrial automation applications. It offers reliable digital input and output operations, featuring configurable input filters and robust connectivity options, ideal for demanding environments.
Manufacturer: WEIDMULLER
Type: U-Remote
Model: UR20-4DI-4DO-PN-FSPS-V2
Part No.: 2464570000
Serial No.: AW8F24PC7301872
Ref No.: 1346610000

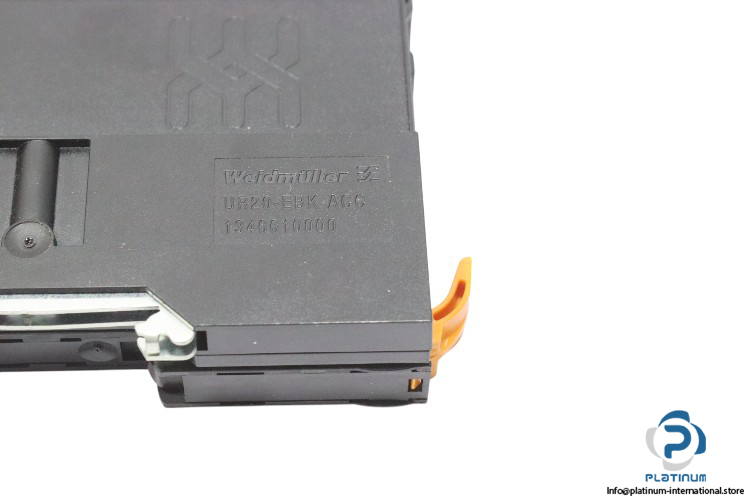

Accessories: UR20-EBK-ACC
Technical Data:
- Voltage Supply: 24 V DC
- Input Voltage (High): 11 V
- Input Voltage (Low): 5 V
- Number of Outputs: 4
- Input Filter: Configurable
- Input Type: Type 1 in accordance with IEC 61131-2, Type 3 in accordance with IEC 61131-2
- Output Current per Channel (Max.): 0.5 A
- Output Current per Module (Max.): 2 A
- Type of Connection: PUSH IN
- Wire Connection Cross Section (Finely Stranded, Max.): 1.5 mm²
- Type of Contact: CO Contact
- Operating Temperature Range: -20°C to +60°C
- Dimensions: 76 x 120 x 11.5 mm
