Weidmuller ZDT 2.5/2 PE Pluggable Terminal Block
New
In stock1 unitReady to ship
Plug-In Modular Terminal
Weidmuller ZDT2.5/2PE terminal block from the Z-Series with pluggable tension-clamp connection, 2.5 mm² rated cross-section, and compact DIN rail mounting design for industrial control panels.Recommendation:
Perfect for automation panels and industrial wiring systems requiring reliable and space-saving terminal solutions.
BlockClampconnectionControlDINElectricalinIndustrialModularPanelPlugrailSeriesTensionterminalWeidmullerWiringZ
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

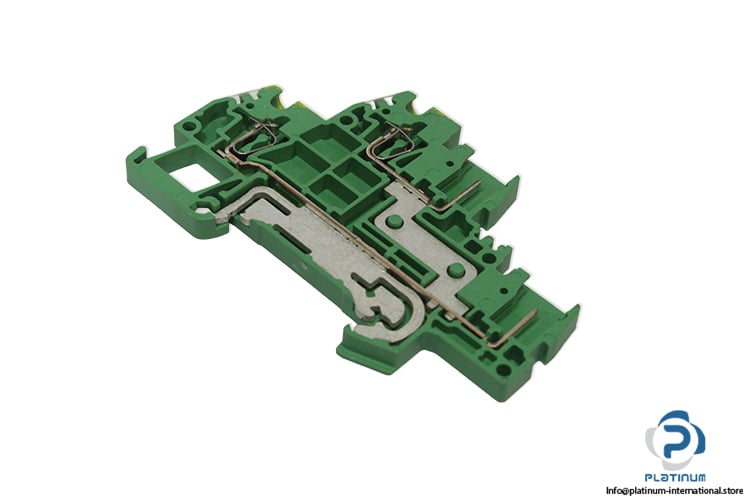

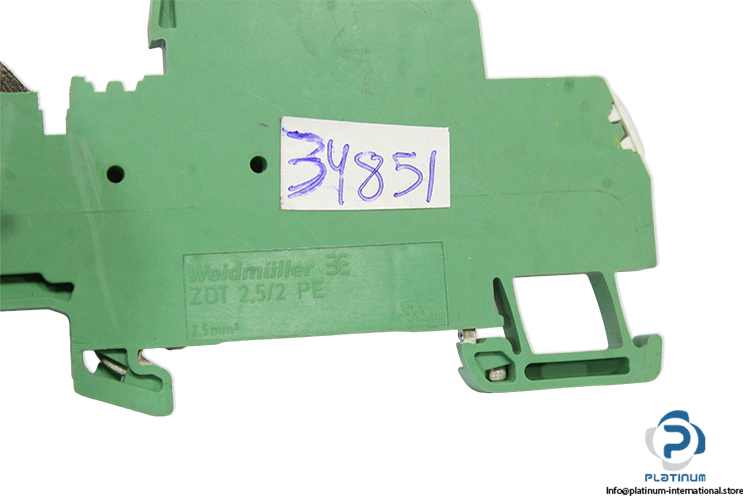

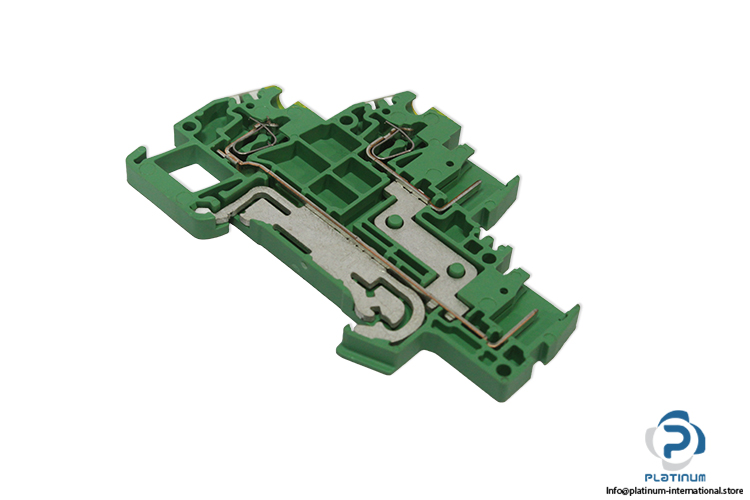

Weidmuller ZDT2.5/2PE Plug-In Modular Terminal
The Weidmuller ZDT2.5/2PE from the Z-Series is a compact and reliable plug-in modular terminal block designed for efficient wiring and secure electrical connections in industrial control panels and automation systems. Featuring a tension-clamp connection technology, this terminal ensures fast installation, vibration resistance, and maintenance-friendly operation.
Manufacturer: Weidmuller
Type: Plug-in Modular Terminal
Model: ZDT2.5/2PE
Series: Z-Series
Item No.: 1815170000
| Rated Cross-Section | 2.5 mm² |
| Connection | Tension-Clamp Connection |
| Connection Type | Pluggable |
| Connection Direction | Top |
| Number Of Connections | 4 |
| Stripping Length | 10 mm |
| Blade Size | 0.6 x 3.5 mm |
| Clamping Range, Max. | 4 mm² |
| Clamping Range, Min. | 0.13 mm² |
| Type Of Mounting | Snap-On |
| Number Of Potentials | 1 |
| Number Of Levels | 2 |
| Number Of Clamping Points Per Level | 4 |
| Depth | 52 mm |
| Depth Including DIN Rail | 52.5 mm |
| Height | 80.5 mm |
| Width | 5.1 mm |
| Ambient Temperature | -5 / 40 °C |
| Basic Material | Wemid |
| Colour | Green |
| UL 94 Flammability Rating | V-0 |
| Certification (cCSAus) | 154685-1460993 |
| Current Size C (cCSAus) | 20 A |
| Current Size D (cCSAus) | 5 A |
| Voltage Size C (cCSAus) | 300 V |
| Voltage Size D (cCSAus) | 600 V |
| Wire Cross Section Max. (cCSAusX) | 12 AWG |
| Wire Cross Section Min. (cCSAusX) | 26 AWG |
| Recommendation | Ideal for industrial control panels and automation wiring where space-saving, reliable, and maintenance-friendly terminal connections are required. |
