Weidmuller ZPE 16 Terminal Block
Used
In stock3 unitsReady to ship
PE Terminal Block
WEIDMULLER ZPE 16 explosion-proof PE terminal block with 800 V rating, IEC 60947-7-2 compliance, and ATEX/IECEx certification for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

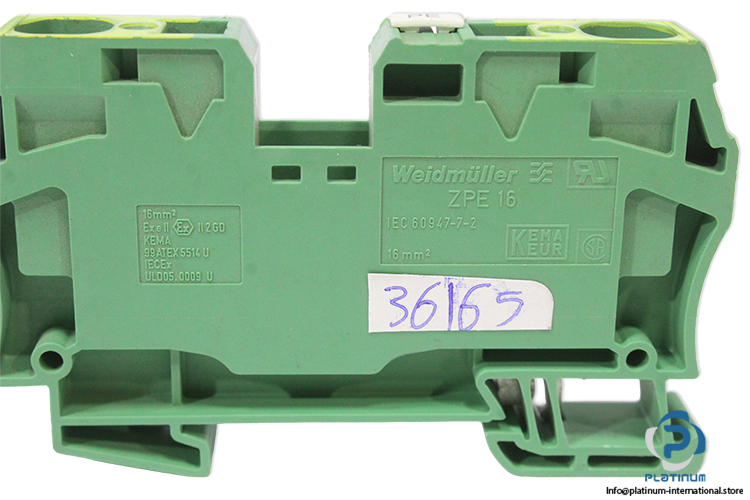

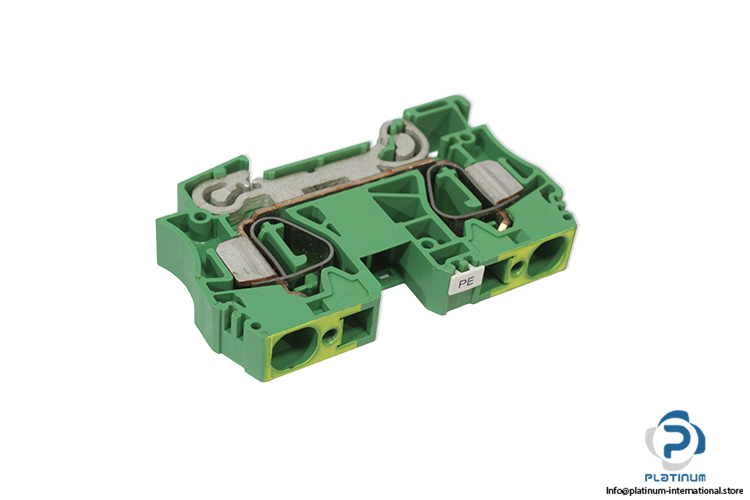

WEIDMULLER ZPE 16 PE Terminal Block
The WEIDMULLER ZPE 16 is a protective earth (PE) terminal block designed for secure grounding and reliable electrical connections in industrial environments. It is engineered for explosion-proof applications and complies with international standards and certifications.
Manufacturer: WEIDMULLER
Type: PE Terminal, Terminal Block
Model: ZPE 16
Explosion Proof: Yes
| Depth | 50.5 mm (1.988 inch) |
| Depth Including DIN Rail | 51.5 mm |
| Height | 82.5 mm (3.248 inch) |
| Width | 12.1 mm |
| Ambient Temperature | -50 °C to 75 °C |
| Continuous Operating Temperature (Min.) | -50 °C |
| Continuous Operating Temperature (Max.) | 120 °C |
| Rated Voltage To Adjoining Terminal | 800 V |
| Rated DC Voltage | 800 V |
| Wire Cross Section Max. (ATEX) | 25 mm² |
| Wire Cross Section Max. (IECEX) | 25 mm² |
| Standards | IEC 60947-7-2 |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU Label | II 2 G D |
| Certificate No. (ATEX) | DEMKO15ATEX1467U |
| Certificate No. (IECEX) | IECEXULD15.0008U |
| RoHS Compliance Status | Compliant Without Exemption |
| REACH SVHC | No SVHC Above 0.1 wt% |
