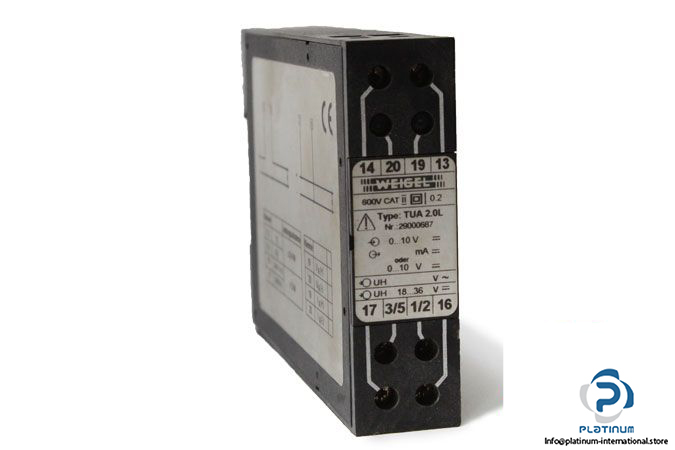

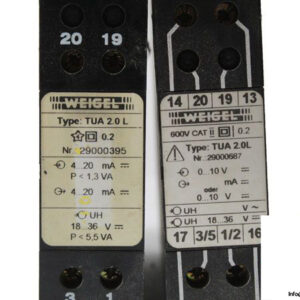

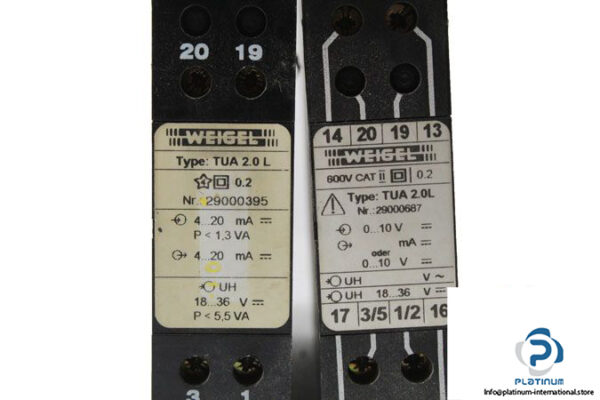

Weigel TUA 2.0 L Active Normalized Signal Separator Archive

Manufacturer: Weigel

Type: Active Normalized Signal Separator Archive

Model: TUA 2.0 L

Housing Design: housing with latch for mounting on a 35 mm mounting rail

Connection Terminals: screw terminals



Input:

Input Quantity: direct current or direct voltage

Current: 20 mA

Voltage: 10 V

Output:

Current: 4 … 20 mA

Voltage: 2 … 10 V

Output Current Limitation: to a value of max. 30 mA (on request)

Auxiliary Power Supply: 115 V ~ (85 … 126 V), 48 … 62 Hz, 24 V = (18 … 36 V)

Operating Temperature Range: 0 … + 55 ° C

Dimensions: 22.5 X 80 X 115 mm

Degree of Protection: IP 40 housing, IP 20 terminals

Weight: 0.12 Kg
