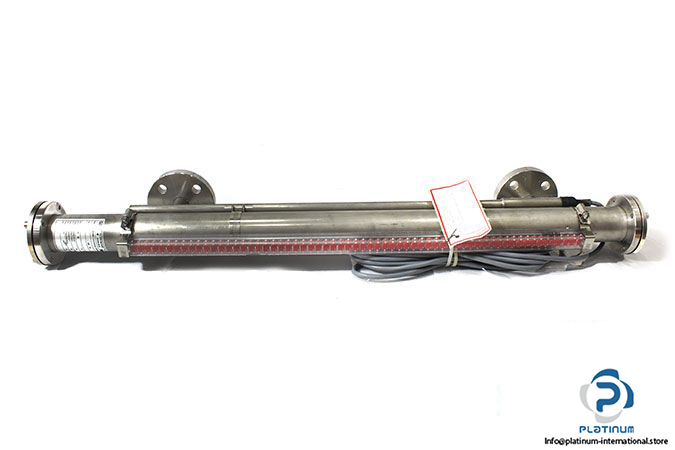

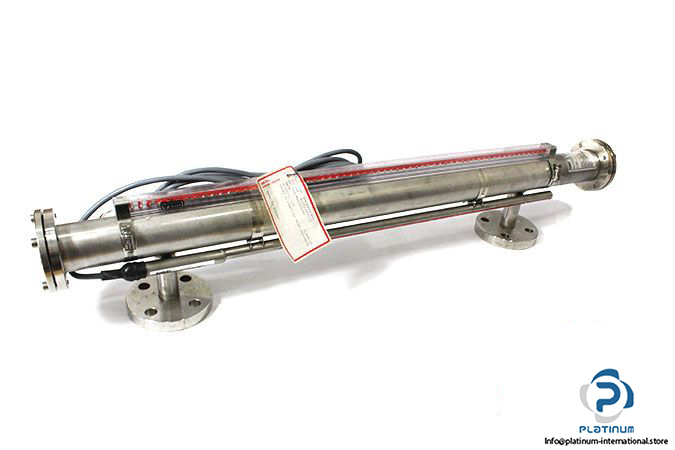

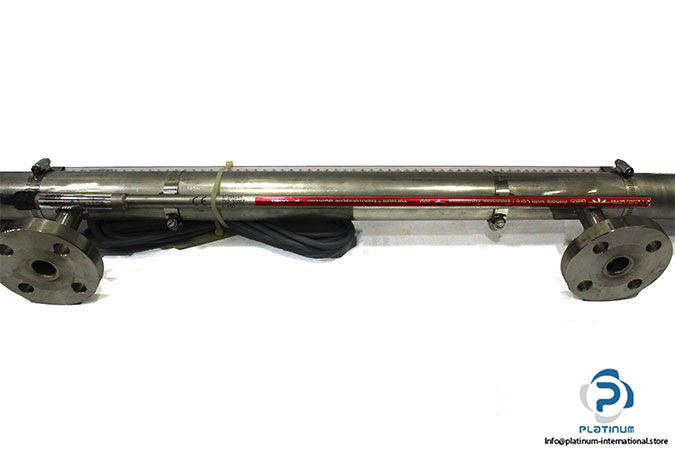

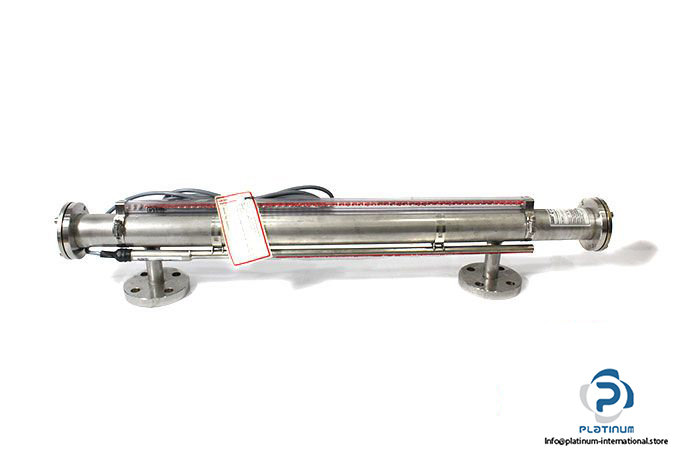

Weka 23614 Level Indicator

Manufacturer: WEKA

Type: LEVEL INDICATOR

Series: Standard 6

Model: 23614 -O

Application:

• Chemical and other process industries
• Ships, thermal power plants, hydraulic systems
• Railways, vehicular applications, petrochemical industries
• Refrigeration systems

Material: Stainless Steel 316/316L

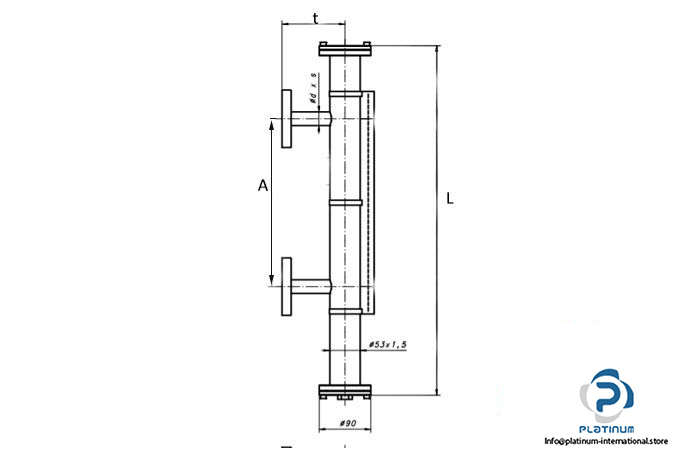

Dimensions:

  Pipe Outer Diameter: 53 mm

  Overall Length ( L ): 860 mm

  A: 550 mm

  t: 108 mm

Working Pressure: 10 bar

Density ( liquid ): 0.8 g/cm3

Standard flange connections: DN 20

Operating Temperature: -40 … 150 °C

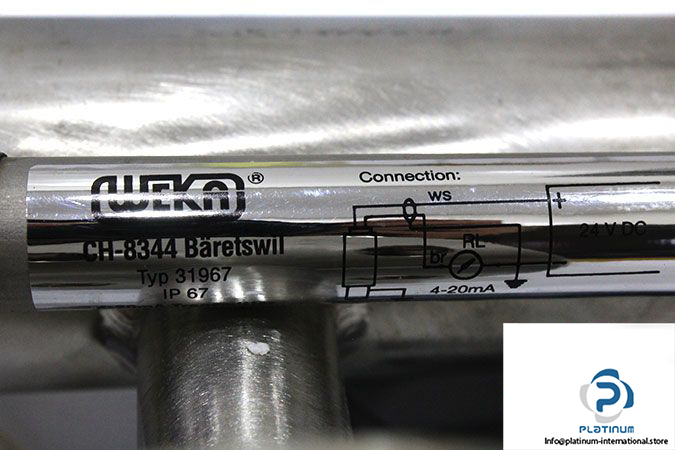

Attached with: WEKA 31967 TRANSMITTER

Manufacturer: WEKA

Type: TWO-WIRE TRANSMITTER

Model: 31967



Materials:

  Housing Tube: Stainless steel 316 / 316L

  Cable gland: Brass, nickel plated

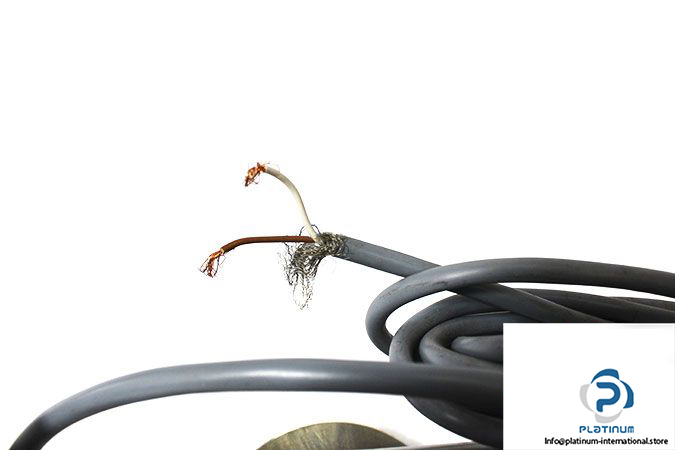

  Cable (Standard 5m): Silicone

Transmitter Diameter: 14 mm

Transmitter Length: approx. 550 mm

Measuring length: 200 … 4000 mm

Loop supply voltage: 14 … 40 VDC

Output load:

max. 100 Ω at 14 VDC

max. 1.4 kΩ at 40 VDC

Output current: 4 – 20 mA

Protection Class: IP67

Media Temperature: -50 … 150 °C

Weight: 6.50 kg
