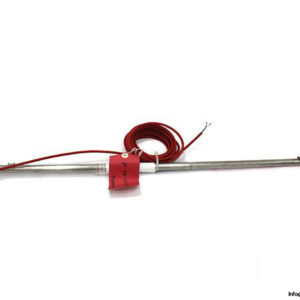

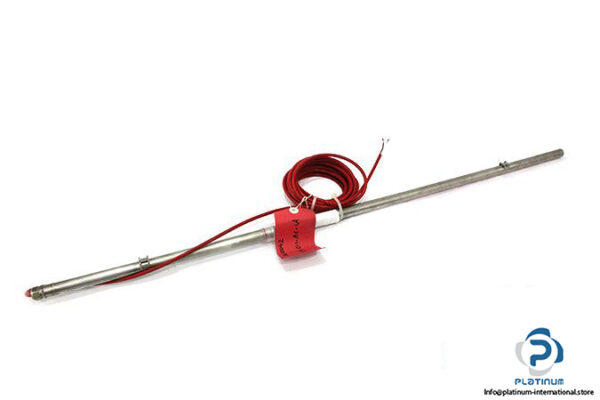

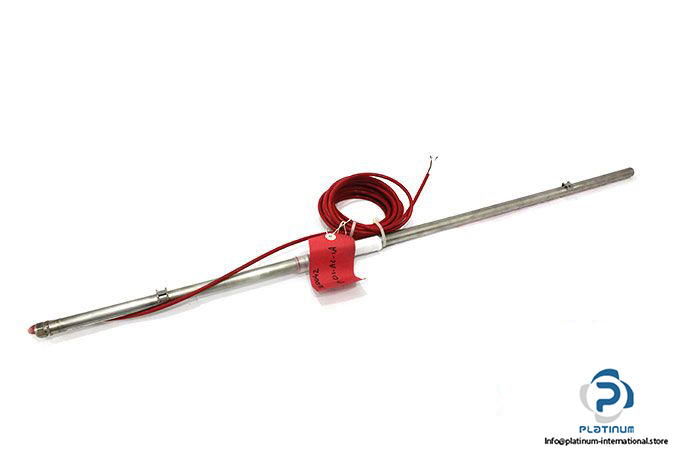

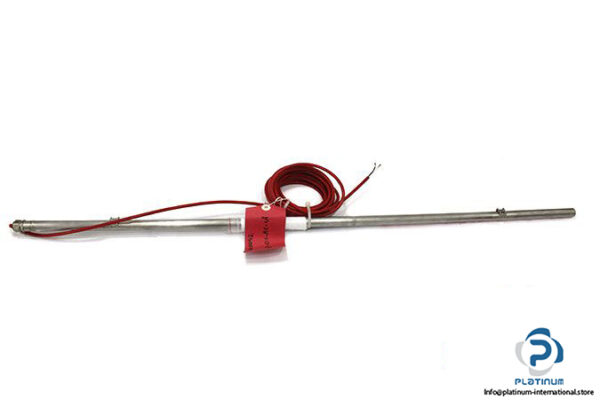

Weka 31967-W-010-05 Transmitter

Manufacturer: WEKA

Type: TWO-WIRE TRANSMITTER FOR HIGH MEDIA TEMPERATURE

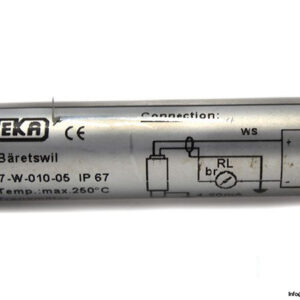

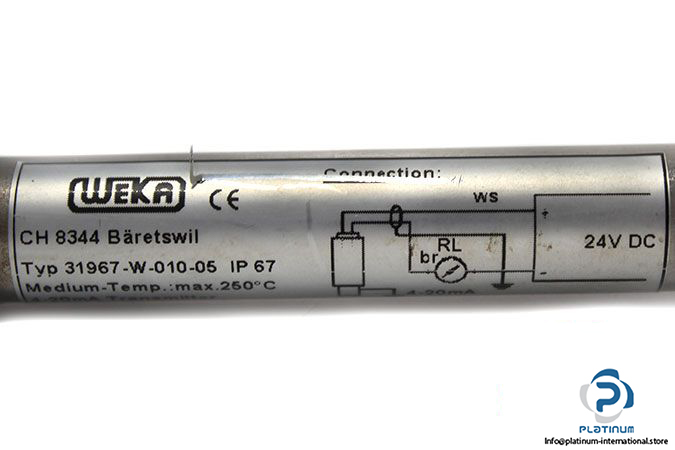

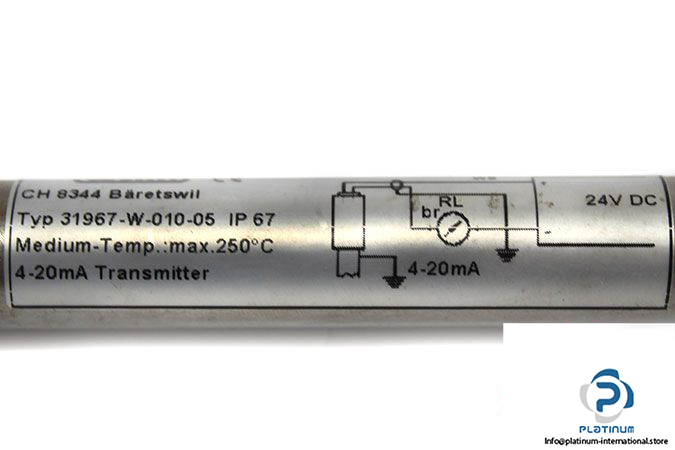

Model: 31967-W-010-05

Order No.: 201428/10



Materials:

  Housing Tube: Stainless steel 316 / 316L

  Cable gland: Brass, nickel plated

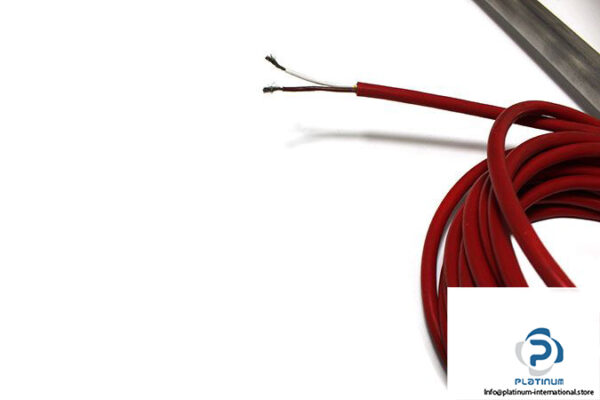

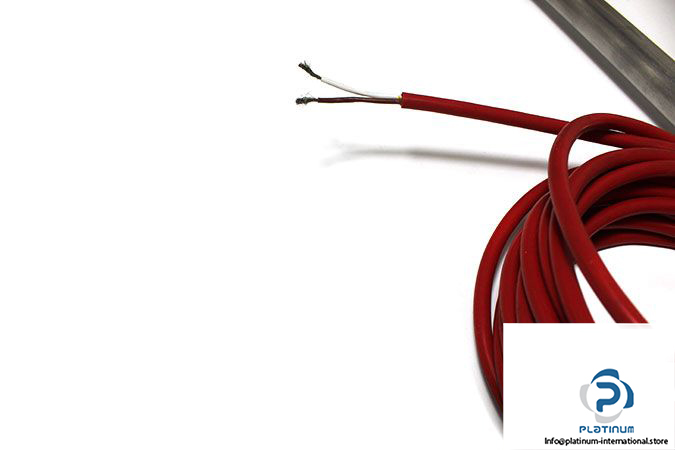

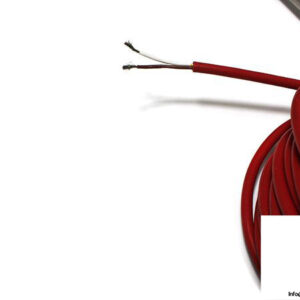

  Cable (Standard 5m): Silicone

Transmitter Diameter: 17 mm

Transmitter Overall Length: approx. 1 meter

Measuring length: 200 … 4000 mm

Loop supply voltage: 14 … 40 VDC

Output load:

max. 100 Ω at 14 VDC

max. 1.4 kΩ at 40 VDC

Output current: 4 – 20 mA

Resistance: 10 Ω per step

Resolution: 5 mm

Protection Class: IP67

Ambient Temperature: -20 … 50 °C

Media Temperature: -50 … 250 °C

Weight: 1 kg
