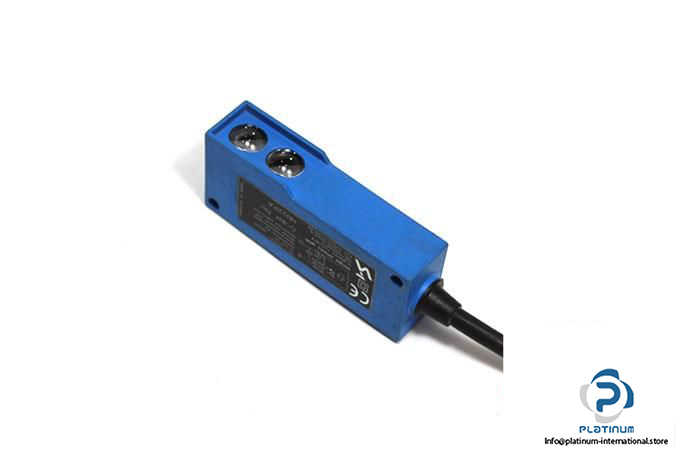

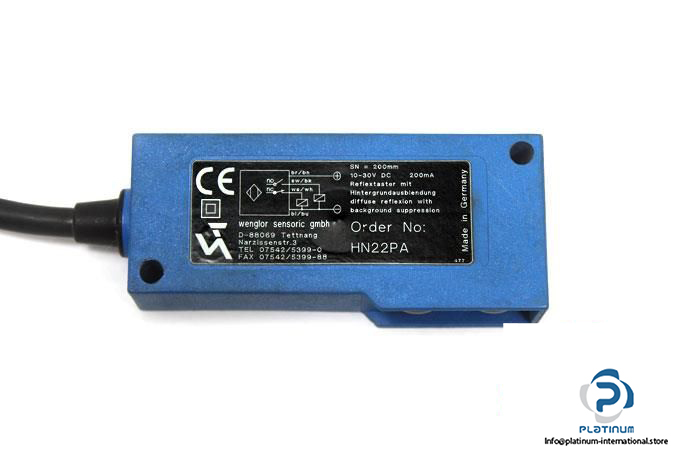

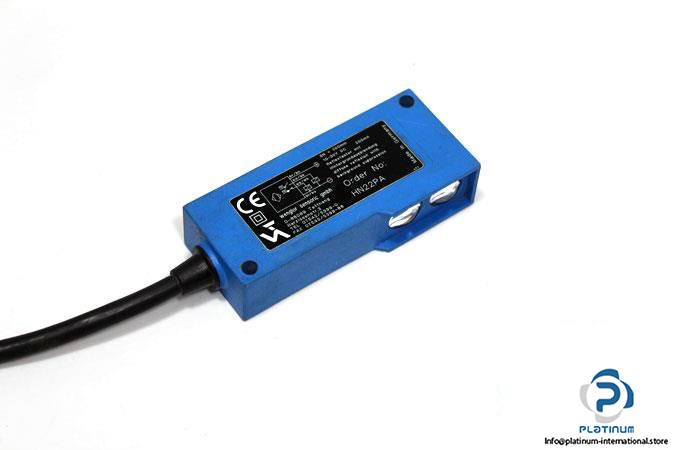

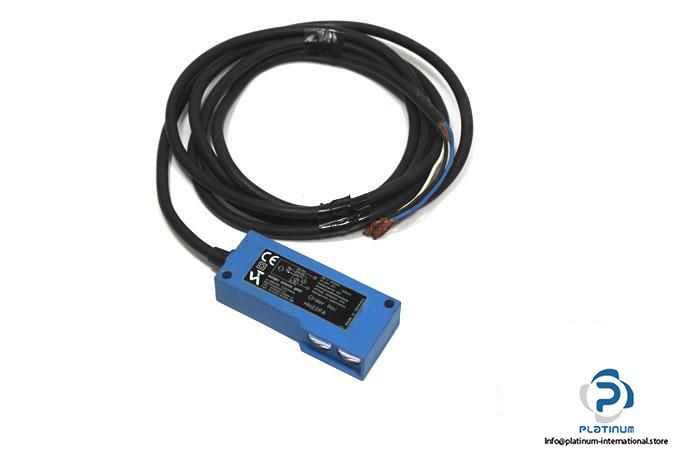

Wenglor HN22PA Photoelectric Reflex Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC REFLEX SENSOR, BACKGROUND SUPPRESSION

Product Nr.: HN22PA

Sensing range: 200 mm

Adjustable range: 60 … 200 mm

Response time: 500 µs

Operating Voltage: 10 … 30 V DC

Current consumption: 30 mA

Output Current: 200 mA

Switching frequency: 1 kHz

Electrical design: PNP

Switching output: Normally open / normally closed

Adjustment: Potentiometer

Connector type, length: Cable, 2 m

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 60°C

Dimensions: 33 x 18 x 70 mm

Housing: Rectangular

Housing material: Plastic

Condition: Used
