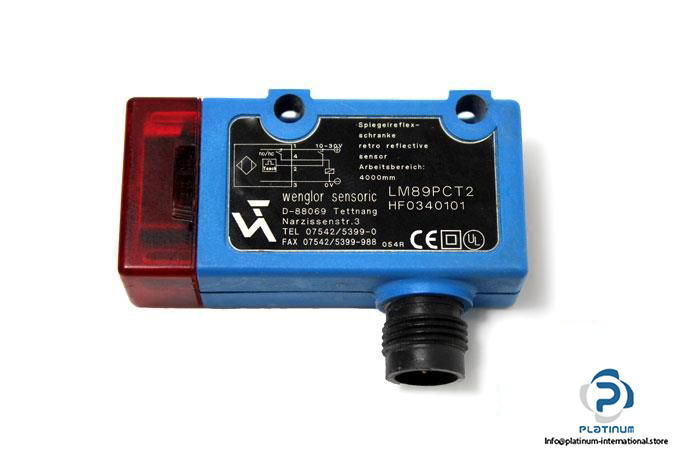

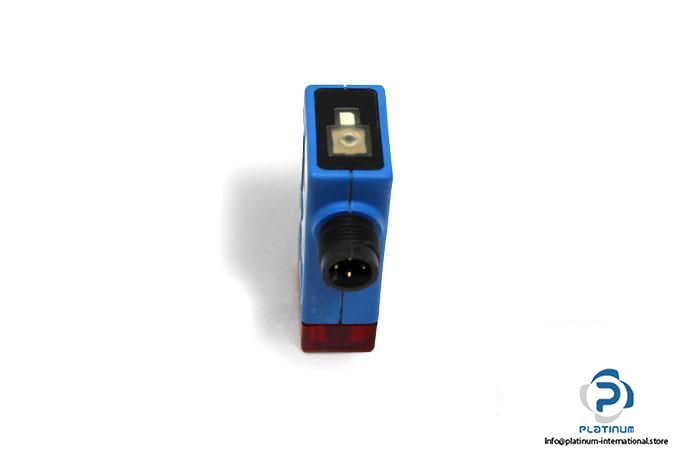

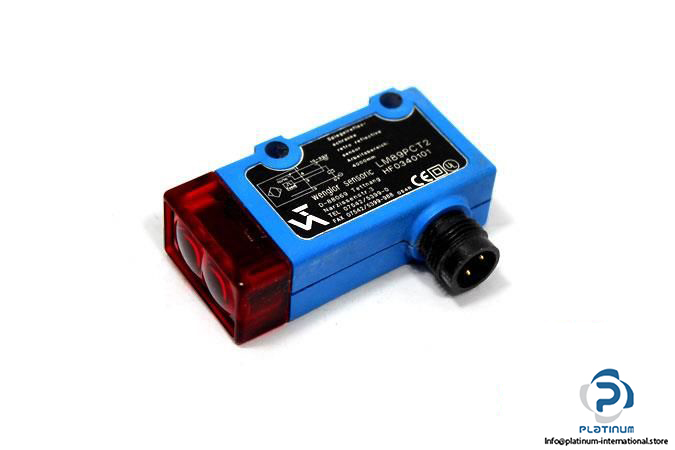

Wenglor LM89PCT2 Photoelectric Retro-Reflex Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC RETRO-REFLEX SENSOR

Product Nr.: LM89PCT2

Sensing range: 6500 mm

Response time: 250 µs

Operating Voltage: 10 … 30 V DC

Current consumption: < 40 mA
Output Current: 200 mA

Switching frequency: 2 kHz

Electrical design: PNP

Switching output: Normally open/Normally closed

Two-Lens Optic: Yes

Light source: Red light

Wavelength: 660 nm

Adjustment: Teach-in button

Connector type: M12 Connector, 4-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 60°C

Dimensions: 26 x 16 x 55 mm

Housing: Rectangular

Housing material: Plastic

Condition: Used
