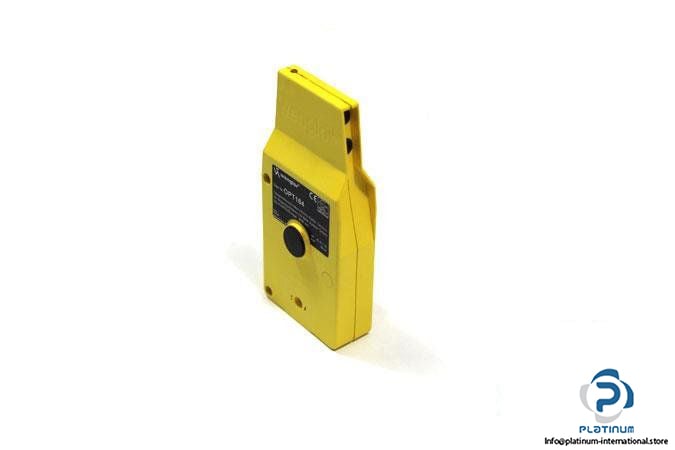

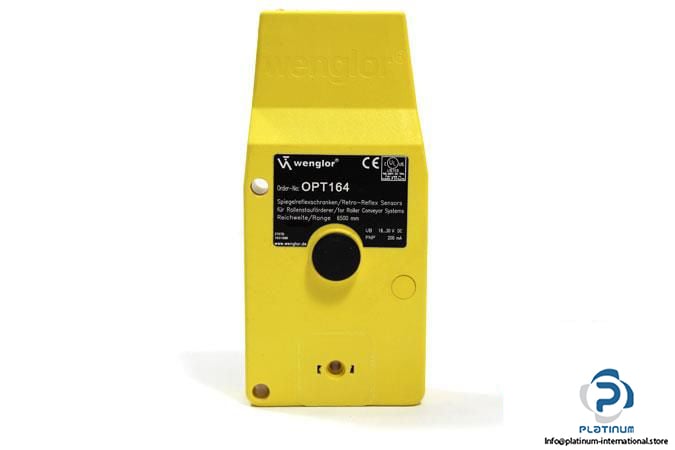

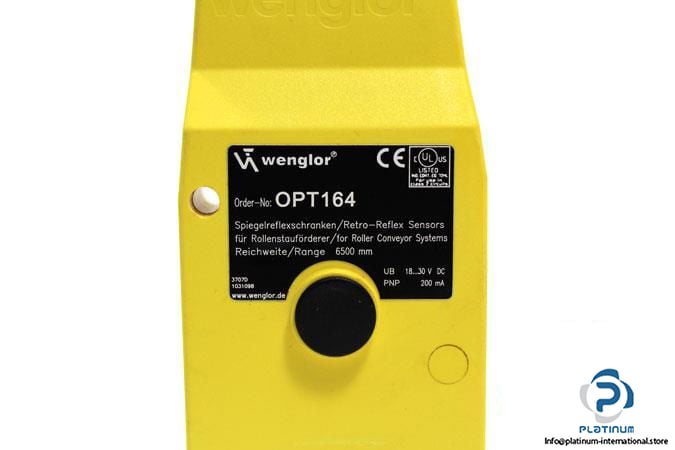

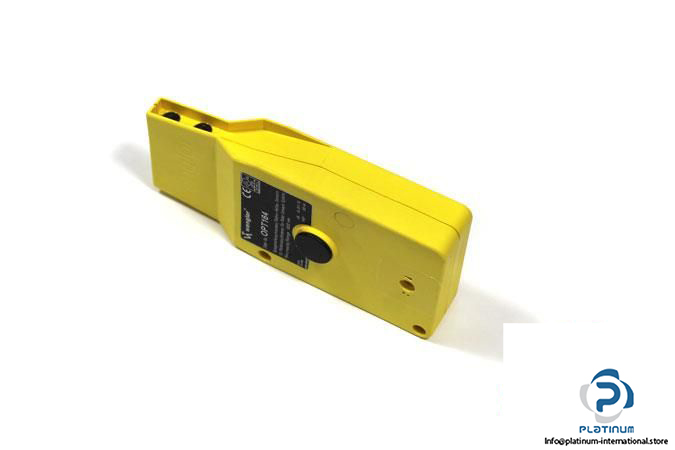

Wenglor OPT164 Photoelectric Retro-Reflex Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC RETRO-REFLEX SENSOR

Product Nr.: OPT164

Applications: Sensors for Roller conveyor systems

Sensing range: 6500 mm

Two-Lens Optic: Yes, transmitter Diode, Receiver Diode

Operating Voltage: 18 … 30 V DC

Response time: 5 ms

Current consumption: < 25 mA
Output current: 200 mA

Switching frequency: 100 Hz

Electrical design: PNP

Switching output: Normally open

Light source: Red light

Adjustment: Potentiometer

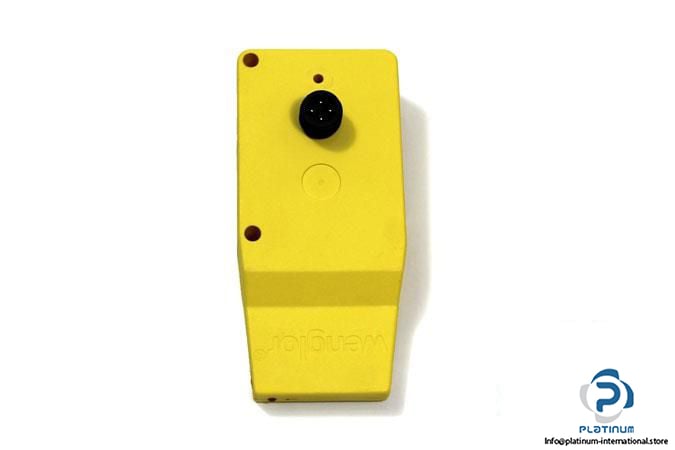

Connector type: M12 , 4-pin

Enclosure rating: IP54

Ambient Operating temperature: -25 … 60°C

Dimensions: 18 x 46 x 100 mm

Housing: Rectangular

Housing material: Plastic
