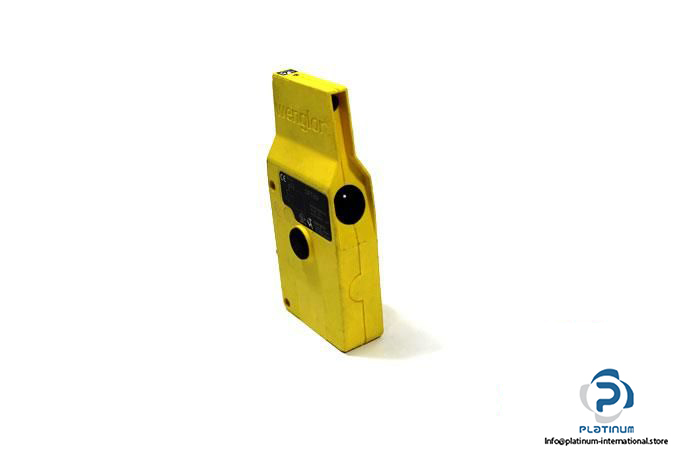

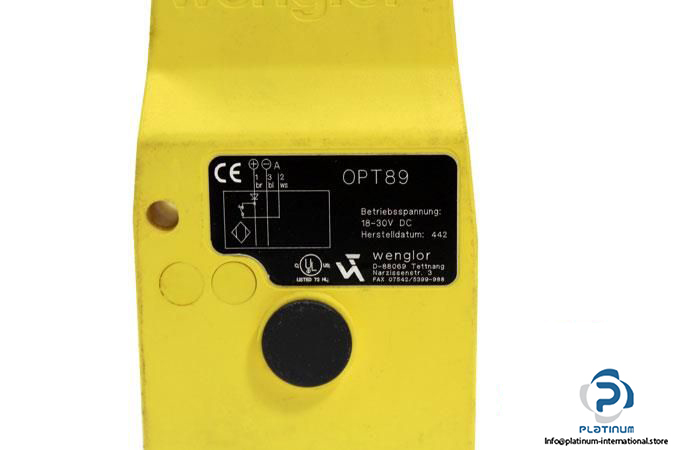

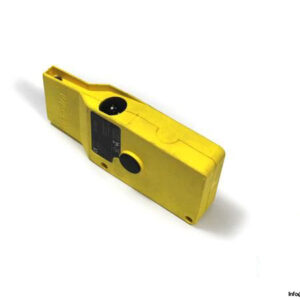

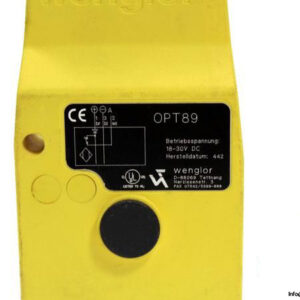

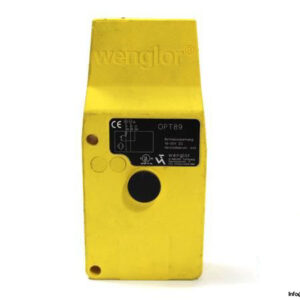

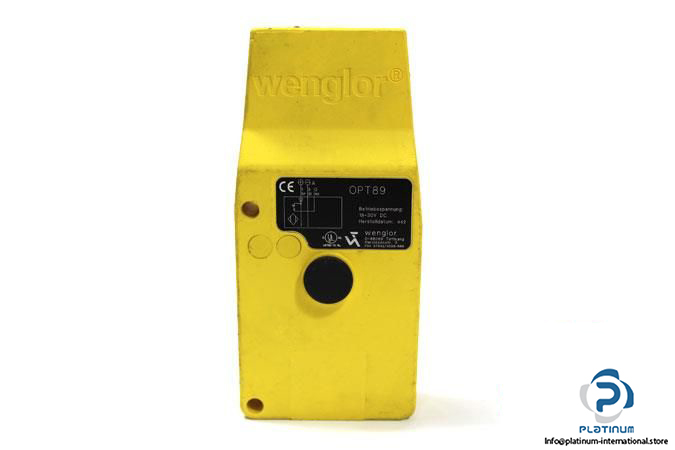

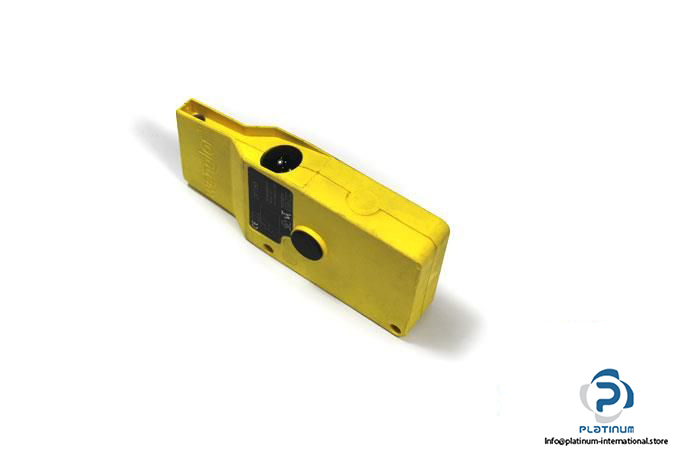

Wenglor OPT89 Photoelectric-Reflex Sensor

Manufacturer: WENGLOR
Type: Photoelectric-Reflex Sensor
Part Nr.: OPT89

Sensing range: 550 mm
Operating Voltage: 18 … 30 V DC
Current consumption: < 30 mA
Output Current: 200 mA
Switching frequency: 100 Hz
Electrical design: PNP
Switching output: Normally closed
Max. Ambient Light: 10000 Lux
Wave Length: 880 nm
Light Source: Infrared Light
Adjustment: Potentiometer

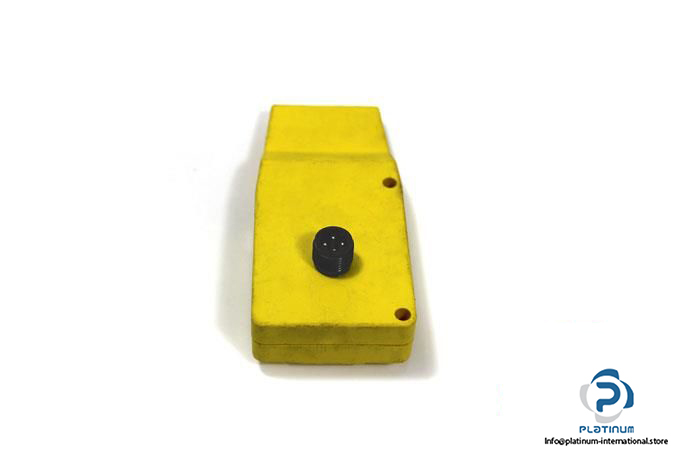

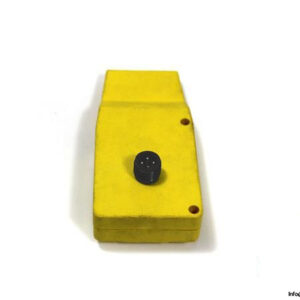

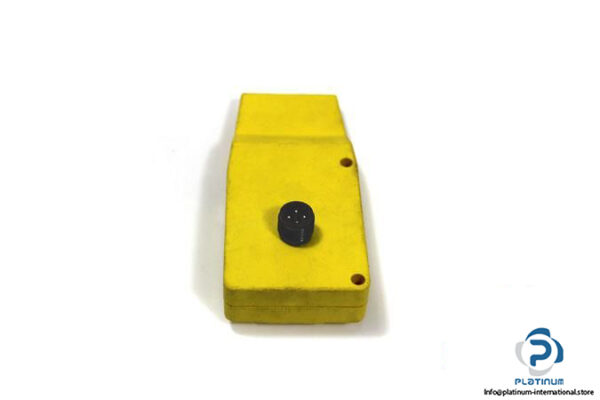

Connector type: M12 Connector, 4-pin
Protection class: III
Enclosure rating: IP65
Ambient Operating temperature: -25 … 60°C
Dimensions: 18 x 46 x 100 mm
Housing: Rectangular
Housing material: Plastic
