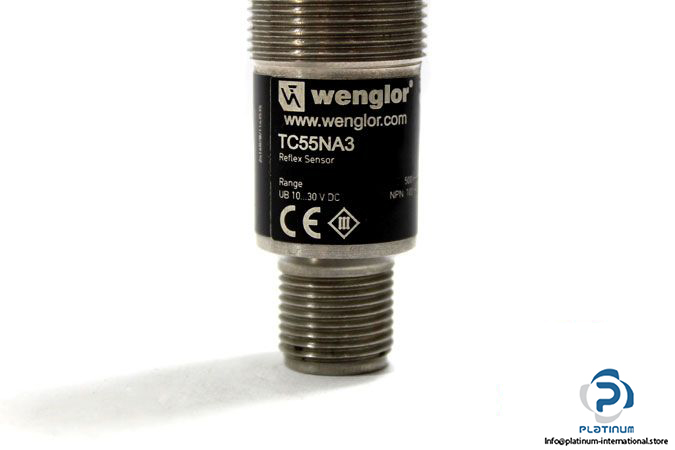

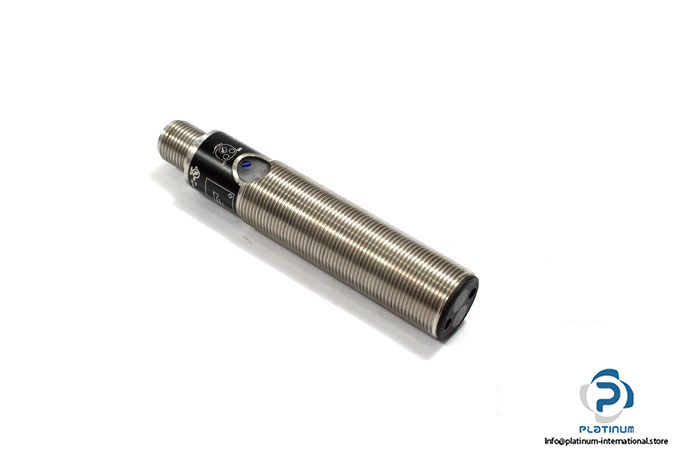

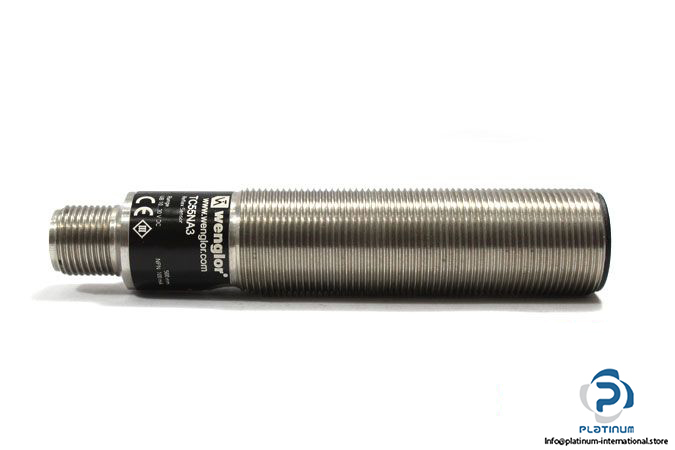

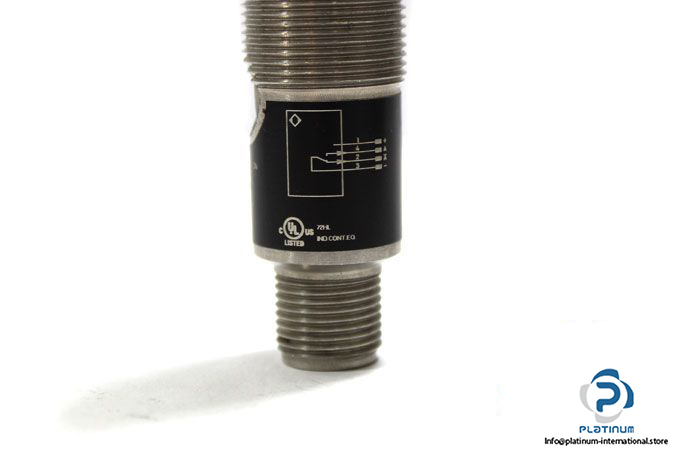

Wenglor TC55NA3 Photoelectric Reflex Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC REFLEX SENSOR

Model: TC55NA3

Transmitter and receiver in single housing

Sensing range: 500 mm

Response time: 250 µS

Operating Voltage: 10 … 30 V DC

Operating Current: 100 mA

Switching frequency: 2 KHz

Electrical design: NPN

Switching output: Antivalent Normally open/Normally closed

Light source: Infrared light

Adjustment: Potentiometer

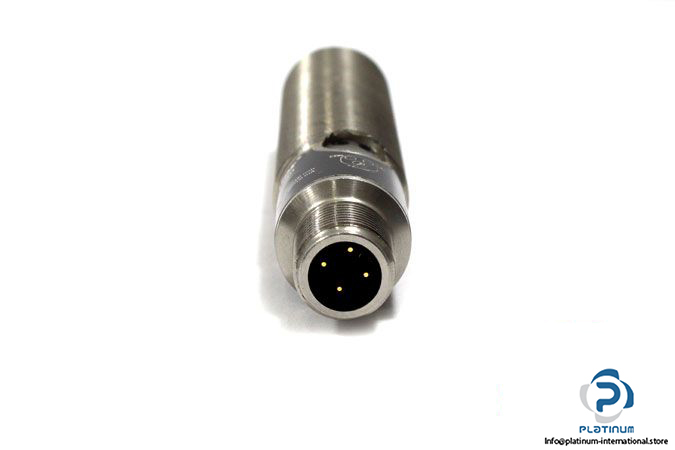

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 60°C

Diameter, housing length: 18, 80 mm

Housing material: Stainless steel

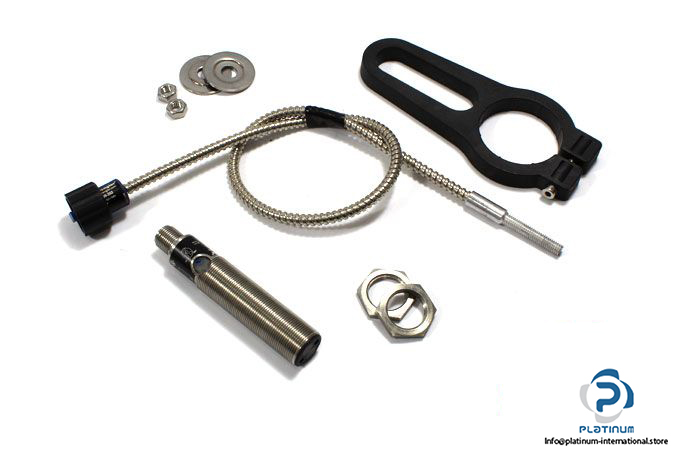

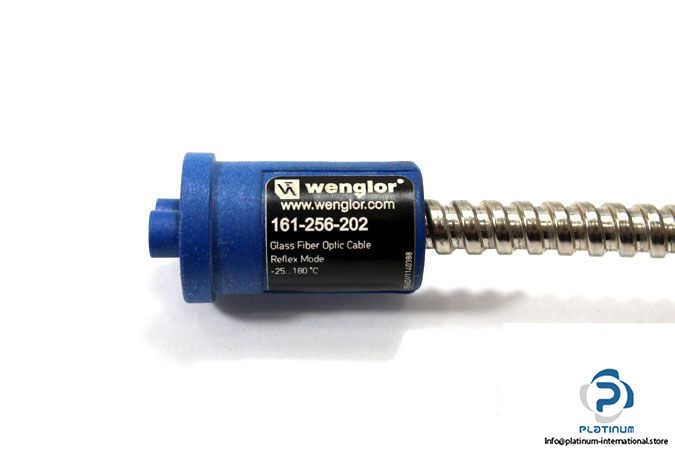

Complementary item: Fiber Optic Cable 161-256-202

Temperature range: –25 … 180°C

Housing material: CuZn, Nickel plated

Length: 0.5 m

Fiber distribution: Separate fiber bundles
