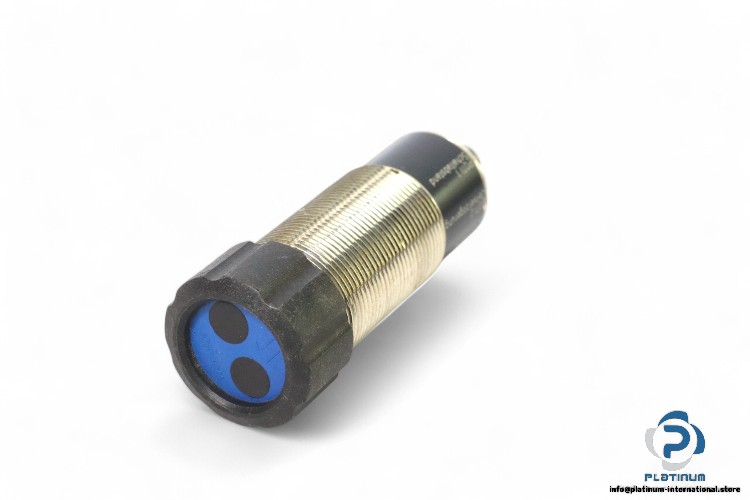

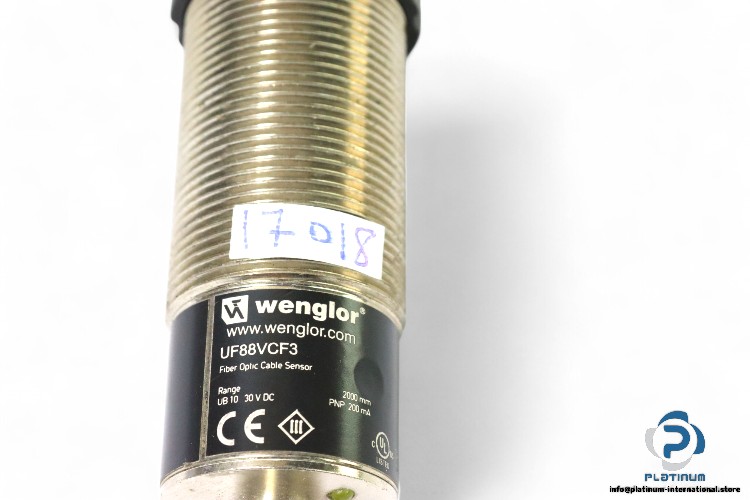

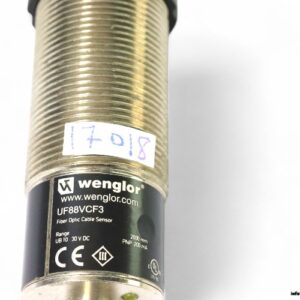

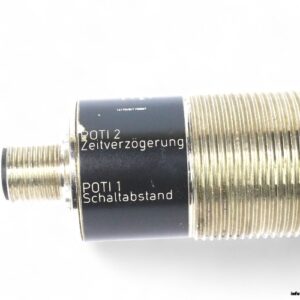

Wenglor UF88VCF3 Fiber-Optic Amplifier Sensor

Manufacturer: WENGLOR
Type: Fiber-optic amplifier Sensor
Model: UF88VCF3

Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): 40 mA
Switching Frequency: 1 kHz
Response Time: 500 µs
On-/Off-Delay : 0 … 1 s
Temperature Drift:  10 %
Temperature Range: -10 … 60 °C
Switching Output Voltage Drop: < 2.5 V
Switching Output/Switching Current: 200 mA
Range: 2,000 mm
Output: PNP
Light Source: Infrared Light

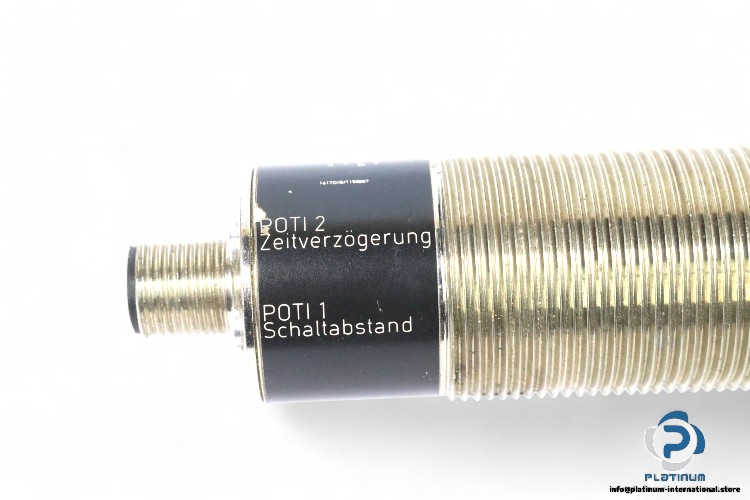

Setting Method: Potentiometer
Housing Material: Brass, nickel-plated
Optic Cover: Plastic, PC
Degree of Protection: IP65

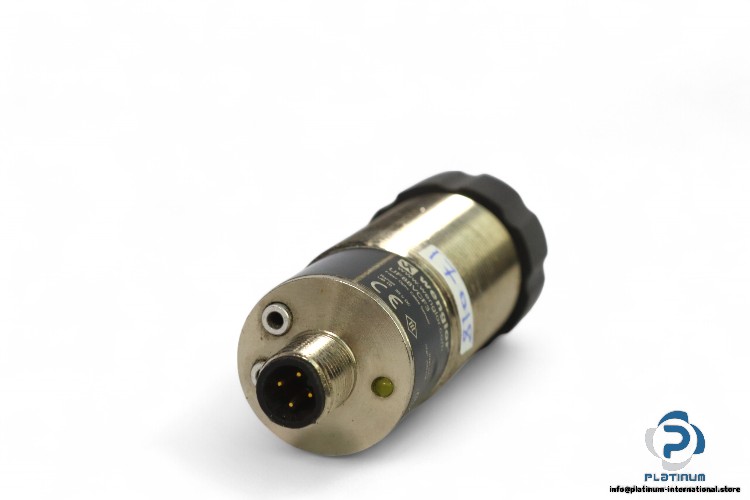

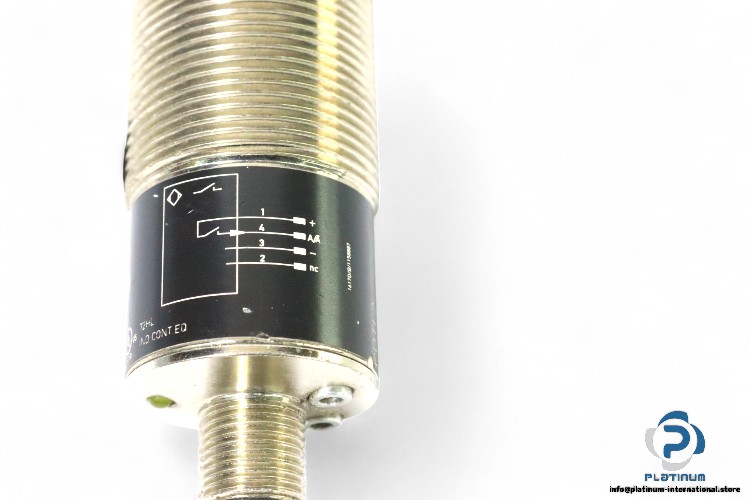

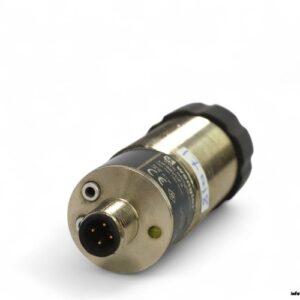

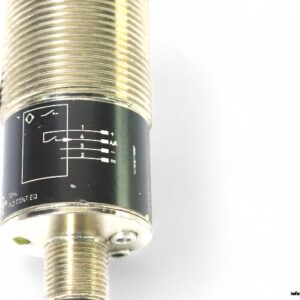

Connection: M12 × 1; 4-pin
