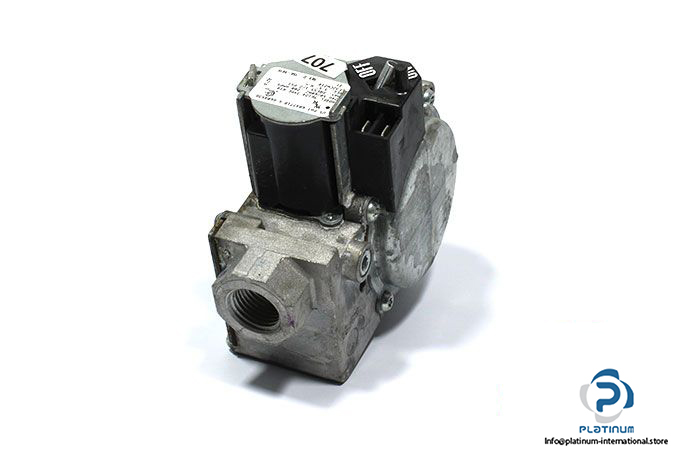

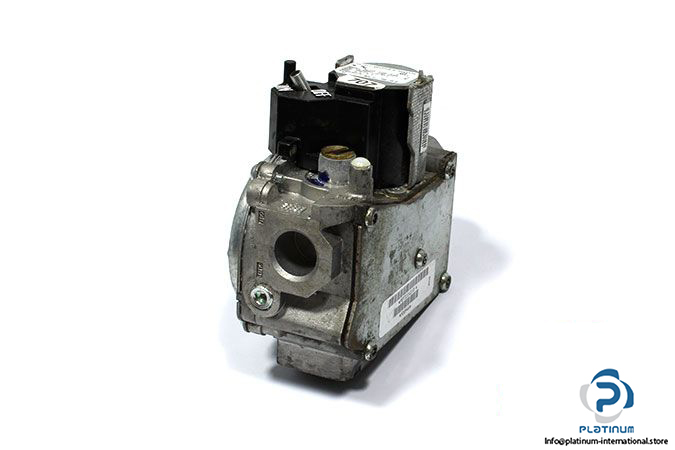

White-Rodgers EF32CW210 36J24 618 GAS Valve

Manufacturer: WHITE-RODGERS
Type: GAS VALVE
Model: EF32CW210
Part No.: 36J24 618

The 36J is a Combination Gas Control Valve Designed for use with
Non-Piloted Intermittent Ignition Systems. The Control is Designed to
meet Today’s Maximum Capacity, Smaller Size and High Efficiency
Gas Systems.
Uses: For Furnaces, Boilers and Heaters
Pressure Rating max. 1/2 PSI
Voltage 24V AC/ 50Hz
Power consumption:
Current: 0.28 A
Regulator pressure: 3.5 W.C
Process connection: Female 1/2″
Working temp.: -40° to 79°C
Class:
Type of Gases: Nat. Gas, LP Gas
