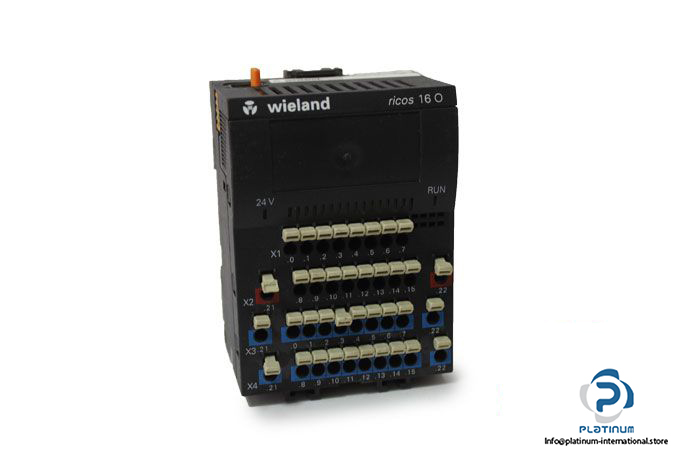

Wieland Ricos 16O Remote I/O Binary I/O Module

Manufacturer: WIELAND

Type: REMOTE I/O BINARY I/O MODULE

Model: RICOS 16O

Part No: 83.035.3200.1

Supply Voltage: 24 VDC

Number of Outputs: 16

Power Consumption: < 0.5 W
Memory Space Required By the Control: 2 output byte

Output Voltage: Operating voltage- 0.5 V DC

Output Current Per Channel: 1 A DC

Maximum Total Current Per Module: 8 A DC

Load Types: resistive inductive

Status Display: green LED

Output Behavior: Resistant to overload and short circuits

Maximum Voltage of Power Contact: 30 VDC

Maximum Current of Power Contact: 8 ADC

Ambient Temperature: 0…+55 °C

Dimensions: 69 X 92 X 51 mm

Weight: 0.16 Kg
