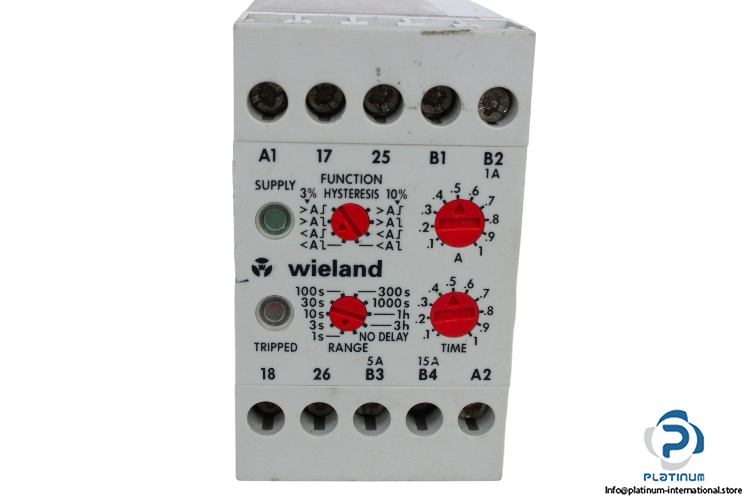

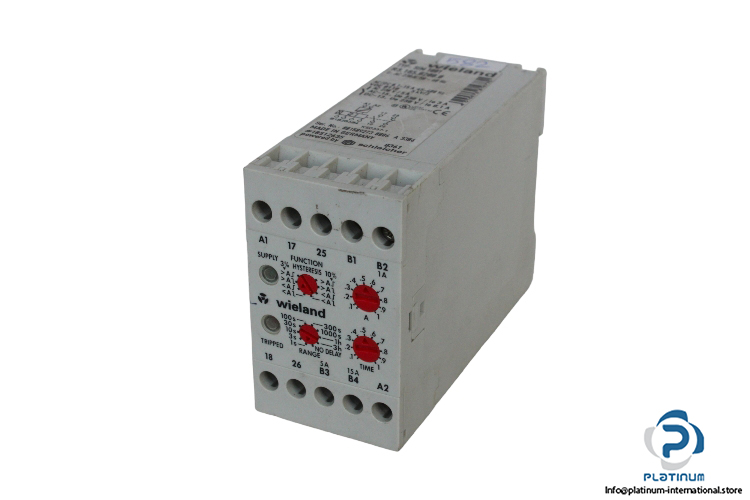

Wieland SIM 1001 Current Measuring Relay

Manufacturer: Wieland
Type: Current Measuring Relay

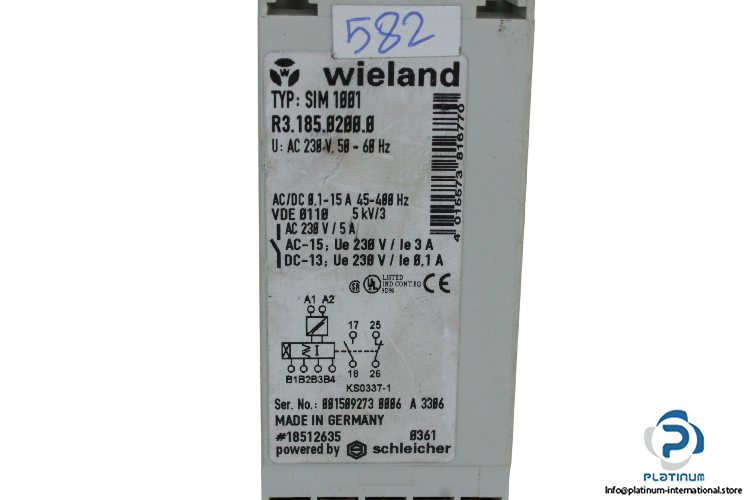

Model: SIM 1001
Part No.: R3.185.0200.0

Rated voltage: 230 V AC
Rated frequency: 50 … 60 Hz
Rated consumption power: 2.5 VA
Response current value range: 0.1 … 15 A
Rated frequency range of the measured value: 45 … 400 Hz
Rated impulse voltage: 5 KV
Pollution degree: 3
Time range: 1s … 3h
Output
Contact: 1 normally closed, 1 normally open
Contact current: 5 A
Contact voltage: 230 V AC
AC-15: 230 V AC, 3 A
DC-13: 230 V DC, 0.1 A

Protection class: IP20
Operation temperature: -20 … +60
Dimension: 105.8 x 75 x 45 mm
