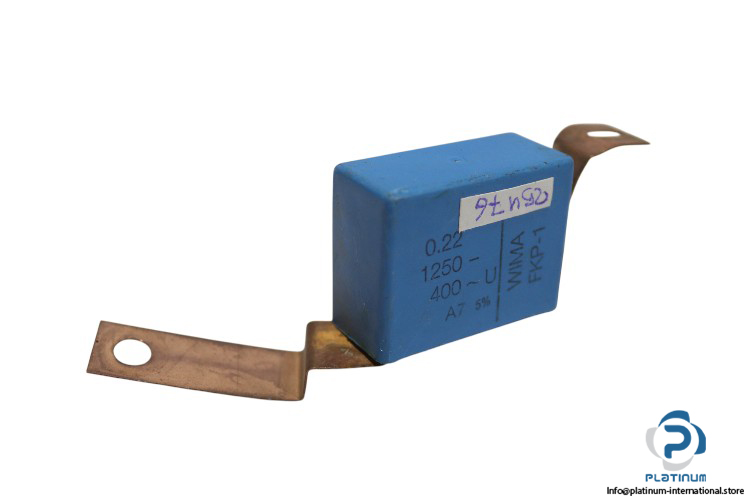

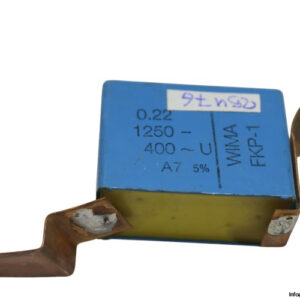

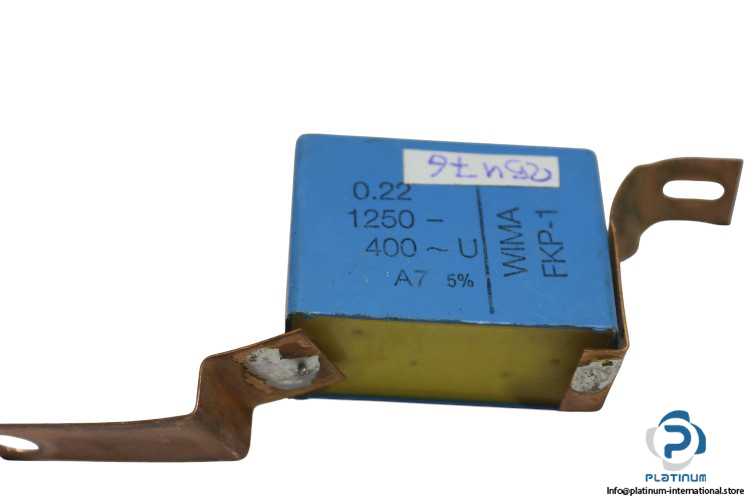

Wima FKP-1 Pulse Capacitor
New
In stock2 unitsReady to ship
Pulse Capacitor
The WIMA FKP-1 pulse capacitor offers a capacitance range from 100 pF to 4.7 µF, with rated voltages of 400VAC and 1250VDC. It features a wide operating temperature range of -55°C to +105°C and high insulation resistance, making it ideal for high-voltage pulse applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
WIMA FKP-1 Pulse Capacitor
The WIMA FKP-1 pulse capacitor is a high-performance capacitor designed for various electrical and electronic applications. It offers a wide capacitance range from 100 pF to 4.7 µF, and it can operate in extreme conditions with a temperature range from -55°C to +105°C. With high insulation resistance and excellent voltage handling capabilities, this capacitor is ideal for high-voltage pulse applications.
Manufacturer: WIMA
Type: Pulse Capacitor
Model: FKP-1
Technical Data:
- Capacitance Range: 100 pF to 4.7 µF
- Rated Voltages: 400VAC, 1250VDC
- Operating Temperature Range: -55°C to +105°C
- Climatic Test Category: 55/100/56 in accordance with IEC
- Insulation Resistance at +20°C: Measuring voltage: 100V/1 min.
- C < 0.1 µF: > 1 x 105 MΩ
- C > 0.1 µF: > 30000 sec (MΩ x µF)
