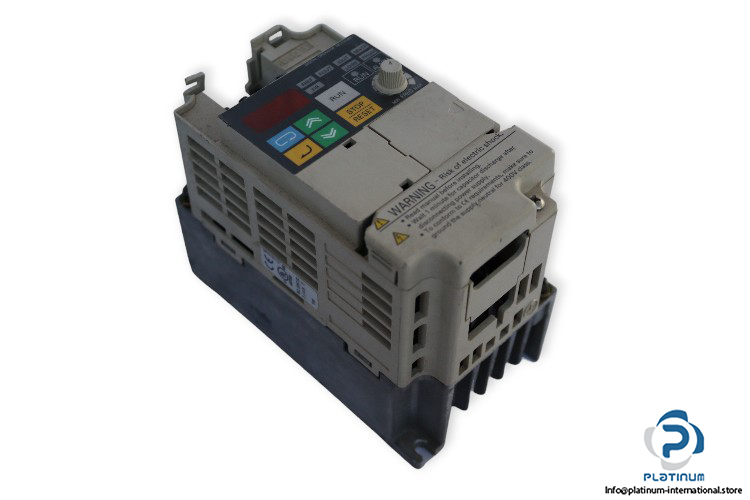

Yaskawa CIMR-J7AZ20P4 Compact General Purpose Inverter

Manufacturer: Yaskawa
Type: Compact General-Purpose Inverter
Model: CIMR-J7AZ20P4
Order No: 8G2149-72-96

Input Voltage: 200 … 230 V AC (3 Phase)
Frequency: 50 … 60 Hz
Input Current: 3.9 A
Output Voltage: 0 … 230 V AC (3 Phase)
Rated Output Current: 3 A
Power supply capacity: 1.1 kVA
Frequency: 0 … 400 Hz
Heat Radiation: 28.1 W
Cooling method: Natural cooling
Max. applicable motor output: 0.4kW
Installation: Category 2
Operating Temperature: -10 … 50 °C
Degree of Protection: IP20
